Slant Bed CNC Lathe – HCK52

Slant Bed CNC Lathe – HCK52
December 25, 2018 Grace Gui 0 Comments

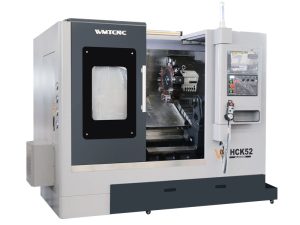

The HCK52 horizontal slant bed CNC lathe machine is engineered for precision, efficiency, and reliability. With advanced spindle technology and a robust mechanical structure, it delivers high-performance turning capabilities that meet the demands of modern machining environments, from high-speed precision work to heavy-duty production cycles.

Equipped with a Taiwan Jianchun high-speed spindle and our refined rotary cylinder assembly process, the slant bed CNC lathe HCK52 runs smoothly at high RPMs with ultra-low noise and vibration, ensuring stable, accurate, and consistent results in every cycle.

Precision CNC Lathe Machine Specification

SpecificationHCK52
CapacityΦ560mm
Max. swing dia. over bed480mm
Max. processing lengthΦ500mm (Disc parts)
Max. turning dia.Φ380mm (Shaft parts)
Max. swing dia. over slideΦ380mm
Spindle
Spindle speed range50–4200rpm
Max. spindle bore dia.Φ65mm
Max. bar dia.Φ52mm
Spindle noseA2-6
Max. spindle output torque150N·m
Spindle motor power11kW
Hydraulic chuck size8″, *10”
Axis
X axis travel270mm
Z axis travel610mm
X axis rapid traverse30m/min
Z axis rapid traverse30m/min
Turret
TypeServo turret
No. of tool station8 position, *12 position
Tool shank size25×25mm
Boring tool shank sizeΦ32/Φ40mm
Tailstock
Tailstock travel80mm (tailstock quill moving)
Taper of tailstock quillMT5
Max. loading capacity
Disk parts200kg
Shaft parts500kg
Machine Dimensions
Overall dimension (L×W×H)2580×1890×1720mm
Machine weight3600kg
