Description

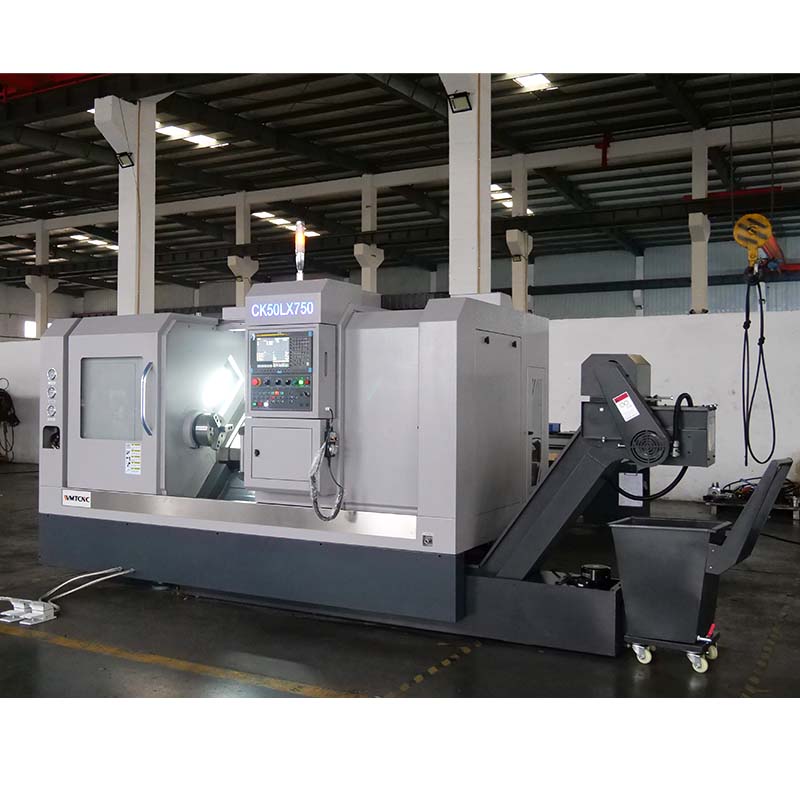

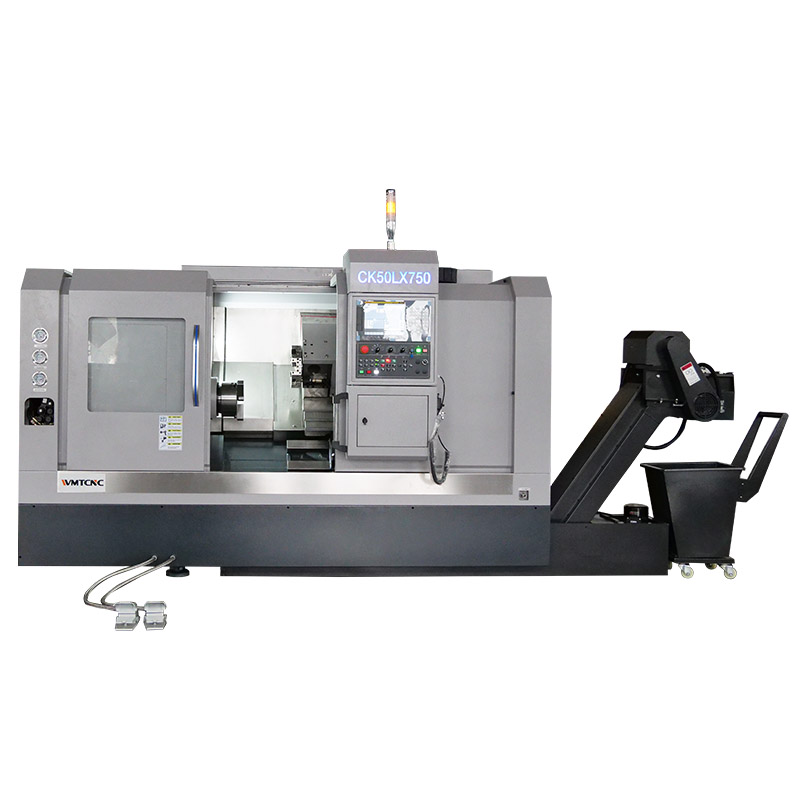

The CK50Lx750 CNC Lathe is engineered for manufacturers who demand accuracy, reliability, and productivity.With a 550mm maximum swing over bed and 750mm maximum workpiece length, it excels at turning shafts, discs,and complex components across automotive, aerospace, mold, and general engineering applications. Its high-speed cartridge spindle, Taiwan linear guideway & C3-grade ball screw, and robust cast iron structure ensure long-termprecision and smooth operation. Multiple turrets and controller options allow you to configure the machine to your exact workflow.
Specifications
| Specification | CK50Lx750 |
| Capacity | |
| Max. swing dia. over bed | φ550mm |
| Max. length of workpiece | 750mm |
| Max. swing dia. over slide | φ250mm |
| Spindle | |
| Spindle speed range | 4000rpm, *3000rpm |
| Spindle bore | φ66mm, *φ86mm |
| Max. dia. of through-hole | φ50mm, *φ70mm |
| Spindle nose | A2-6, *A2-8 |
| Chuck size | φ200mm, *φ250mm |
| Axis | |
| Type of guideway & screw | Taiwan linear guideway & screw |
| X axis travel | 280mm |
| Z axis travel | 750mm |
| X/Z axis rapid traverse | 15/15 m/min |
| Turret | |
| Type | Electric turret, *Hydraulic turret, *Power turret |
| No. of tool stations | 8, *12 position |
| Tool shank size | 25×25mm, *20×20mm |

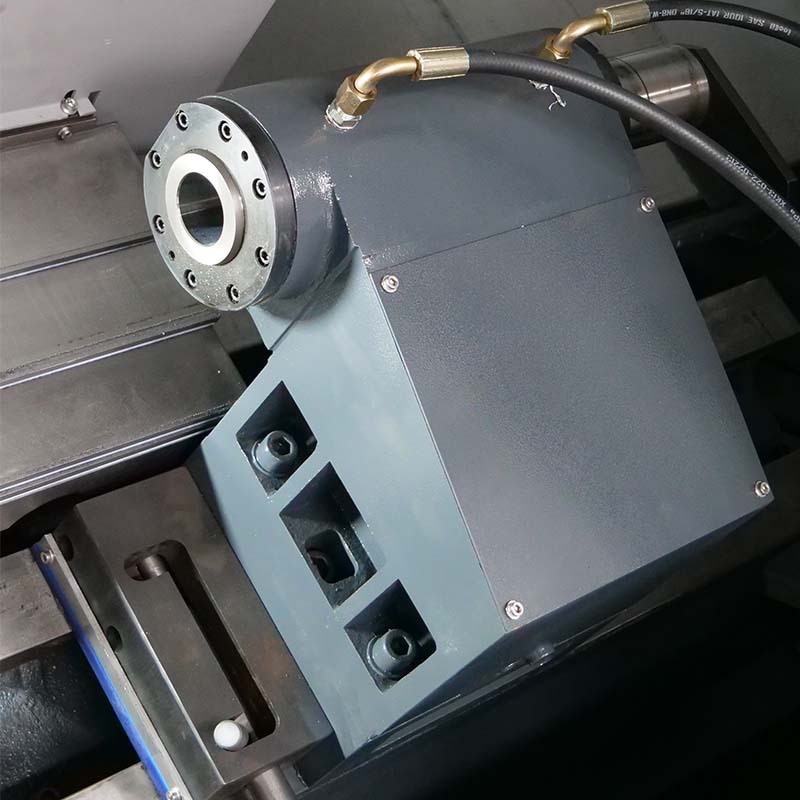

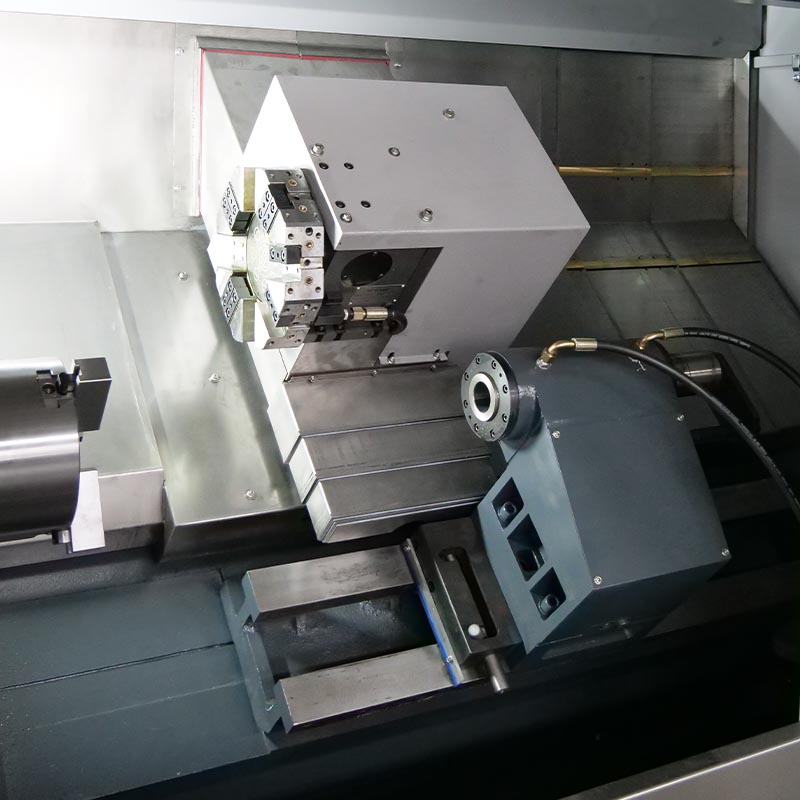

| Tailstock | |
| Type of tailstock | Hydraulic sleeves |
| External diameter | φ90mm |
| Travel of tailstock quill | 120mm |
| Taper of tailstock quill | MT5 |
| Motor | |
| Spindle motor power | 7.5kW, *11kW |
| Coolant pump power | 370W |
| Machine Dimensions | |
| Overal dimension (L×W×H) | 2950×1780×1850mm |
| Packing size (L×W×H) | 3300×2270×2280mm |
| Net/Gross weight | 4200/4500kg |
Features
1.Precision machining: 550mm swing over bed, 750mm workpiece length, 250mm swing over slide.
2.High-speed cartridge spindle: 4000rpm (3000rpm optional) with excellent rigidity.
3.Taiwan linear guideway & C3-grade ball screw for stable, accurate positioning.
4.Flexible turret options: electric, hydraulic, or power turret; 8/12 stations.
5.Monoblock cast iron base for high rigidity and vibration resistance.
6.Controller options: Siemens, Fanuc, GSK, Syntec.
Applications
1.Automotive: shafts, hubs, transmission components.
2.Aerospace: precision turned structural parts.
3.Mold & tooling: bases and inserts requiring high accuracy.
4.General precision engineering: custom medium-to-large metal parts.
Machine Details

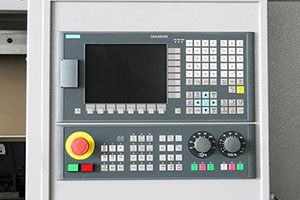

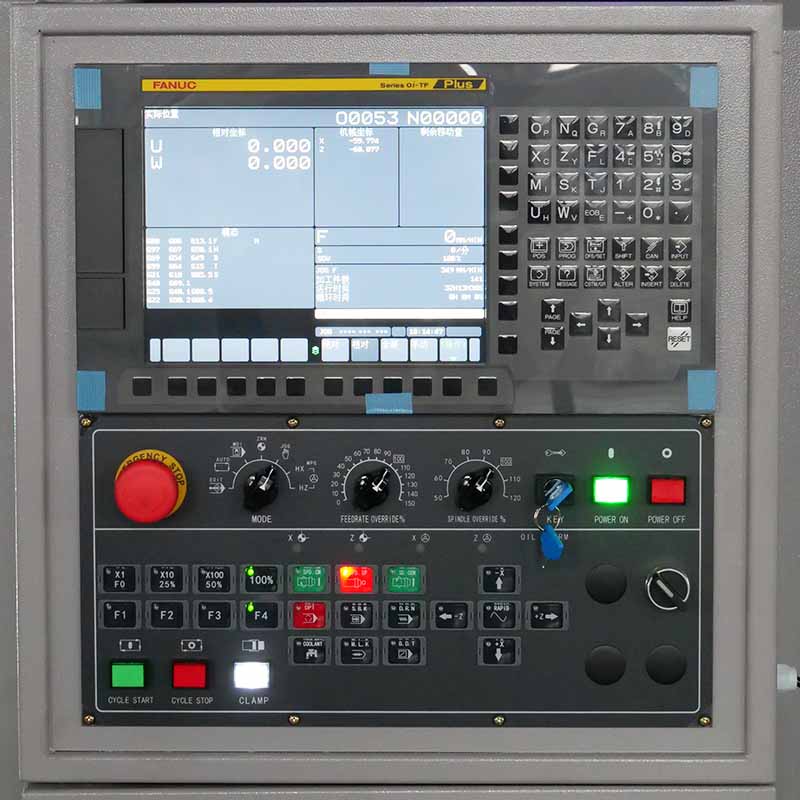

GSK, Fanuc, Siemens controller as optional selection

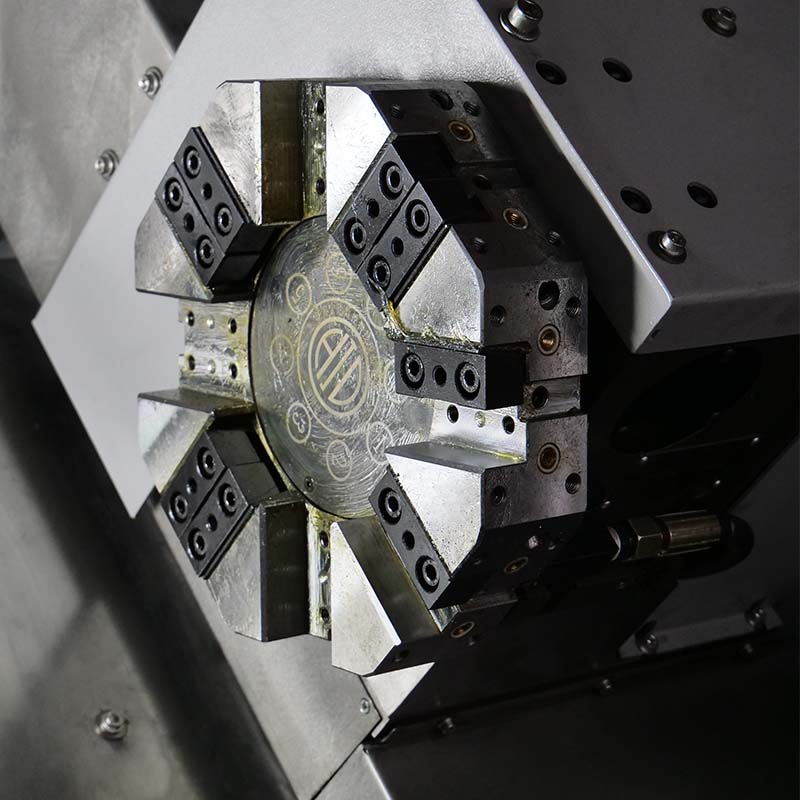

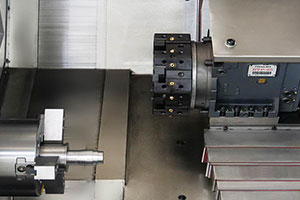

8 Position toolpost

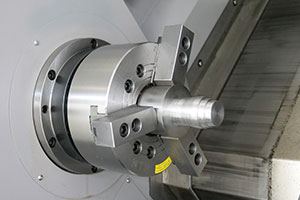

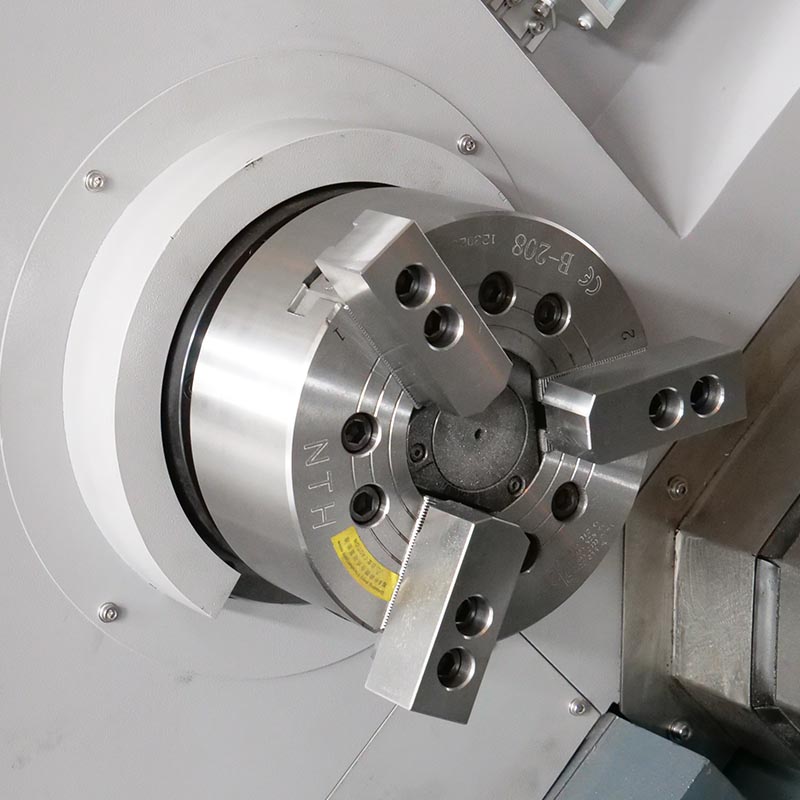

3 Jaw chuck

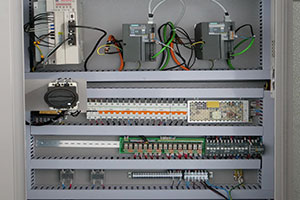

Electric cabinet
