Description

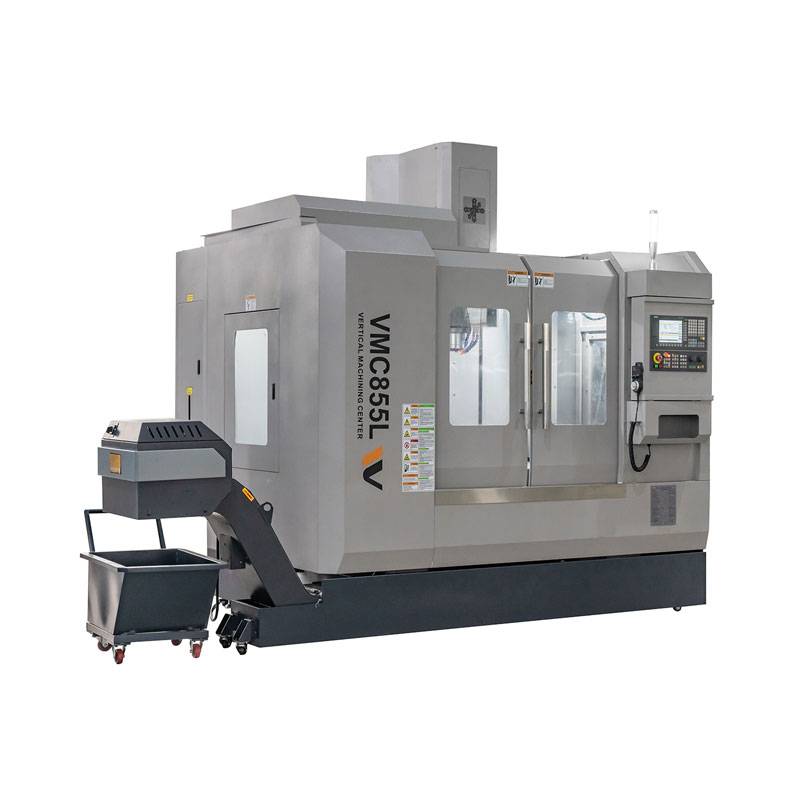

With advanced international standard of designing,modern structure, high quality components and spare parts introduced to this machine tool, no matter precise elements machining or mould processing, WMTCNC Brand cnc machine center VMC855L will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
Specification
| Specification | VMC855L |

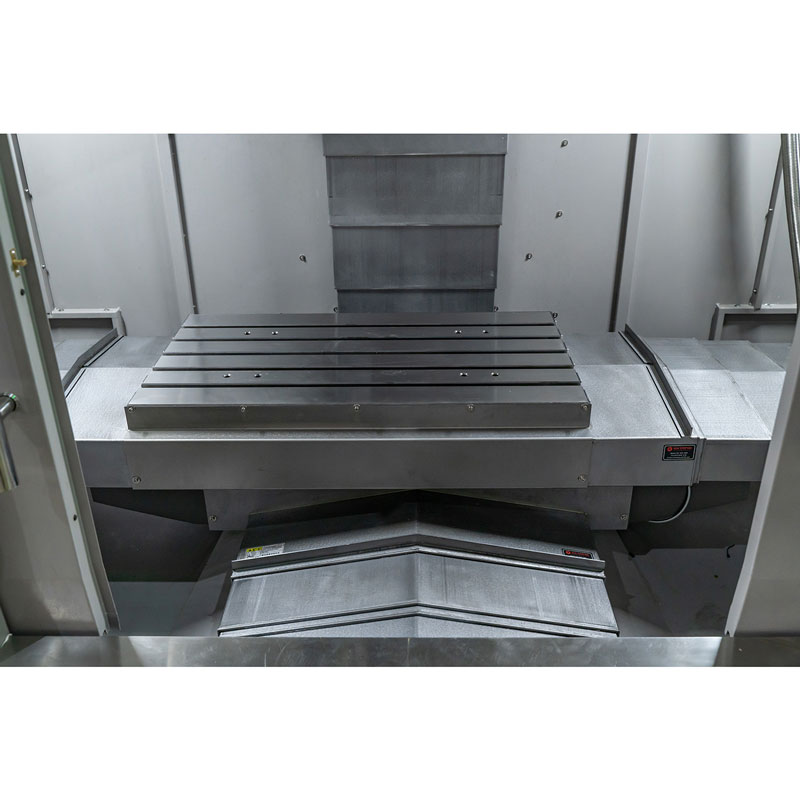

| Worktable | |
| Worktable size (L×W) | 1000×550mm |
| T-slots size (N×W×D) | 5-18x90mm |
| Travel | |
| X/Y/Z axis travel | 800/550/500mm |
| Machining range | |
| Distance from spindle center to column | 595mm |
| Distance from spindle nose to worktable surface | 120-670mm |
| Spindle | |
| Spindle taper | BT40 |
| Spindle power | 7.5kw |
| Max. spindle speed | 8000rpm |
| Feed | |
| Max. feed speed | 10m/min |
| Rapid feed speed (X/Y/Z) | 24/24/20m/min |
| Ball screw (diameter+lead) | |
| X/Y/Z axis ball screw | 4016 |
| Tool magazine | |
| Tool magazine capacity | 24T |
| Max. length of tool | 300mm |
| Tool change time | 1.5s |
| Positioning accuracy (National standard) | |
| Positioning accuracy (X/Y/Z) | ±0.005mm |
| Re-positioning accuracy(X/Y/Z) | ±0.003mm |
| Machine dimension | |
| L×W×H | 2800×2300×2300mm |
| Machine weight | |
| Max. loading of worktable | 600kg |
| Machine weight | 5500kg |
Main Features
- CNC machine center VMC855L with Taiwan spindle BT40 and spindle speed is 8000rpm.
- Disk type ATC 24pcs.
- GSK, FANUC or Siemens system as optional selection.
- All 3 axis use class C3 precision screw, match up the nut pre-loading and screw pre-stretched, pre-eliminate backlash and stability of the position and repatability.
- Suitable for machining parts of automobile, mold industry and so on.
Machine Details

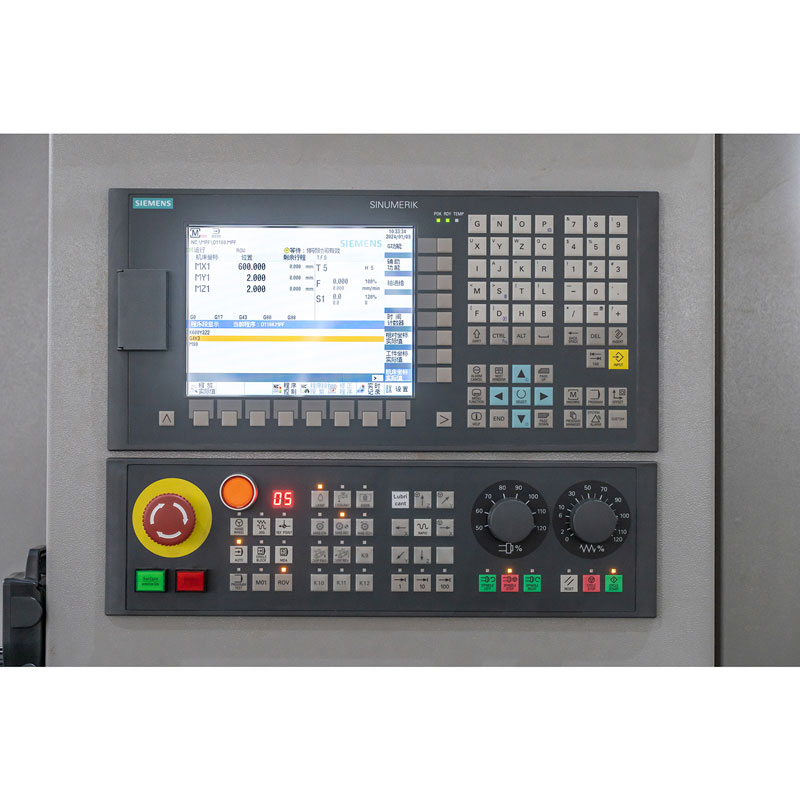

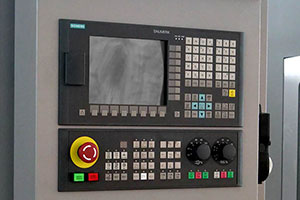

GSK, Fanuc, Siemens controller as optional selection

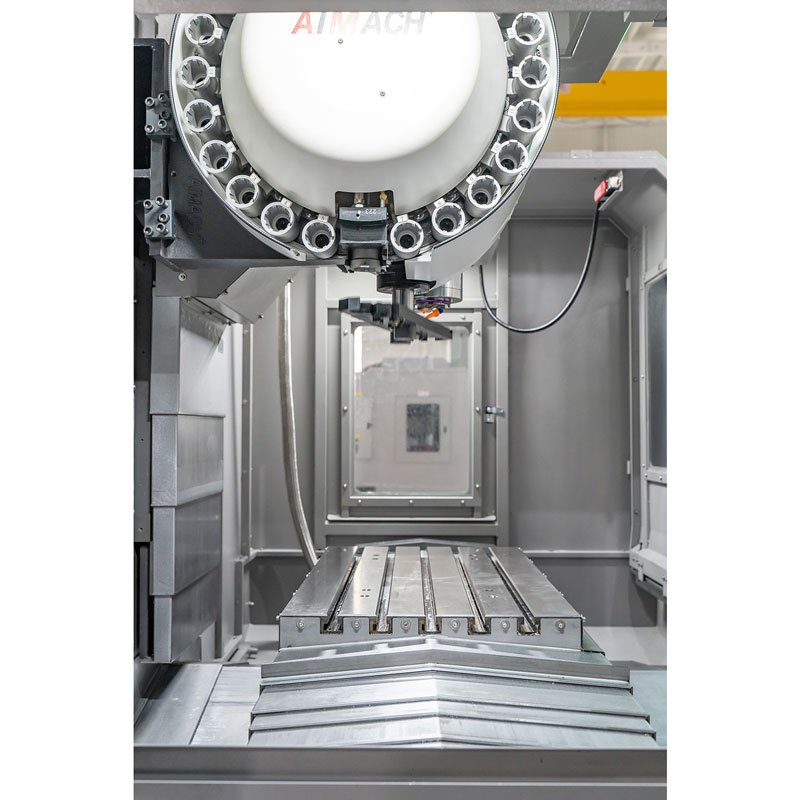

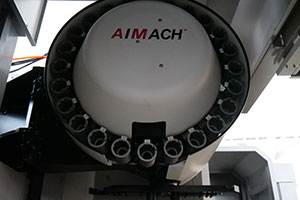

Disc Type ATC

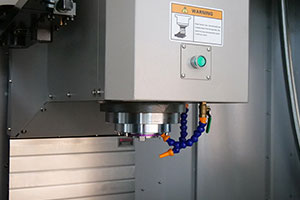

Spindle unit BT40 of VMC

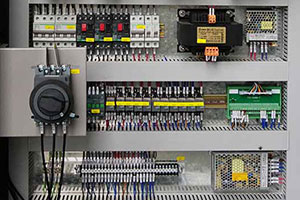

Electrical Cabinet
