Description
The large basic parts are all cast with high-quality resin sand modeling and high-strength cast iron materials so that the machine tool has high rigidity and stable precision. WMTCNC BRAND Vertical machining center VMC1160 will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.

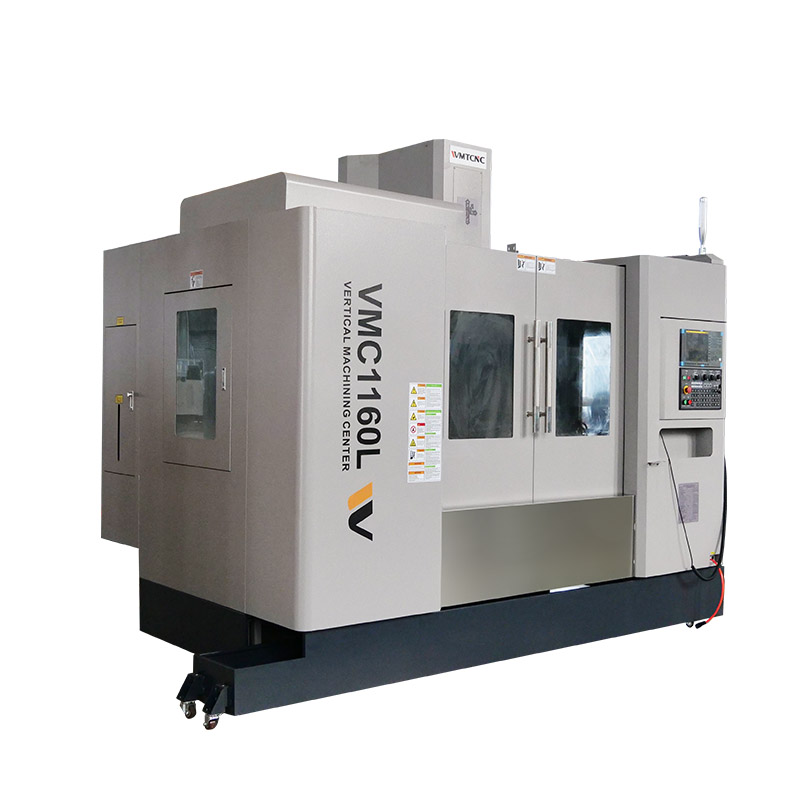

Vertical Machining Centre VMC1160 Specification
| Specification | VMC1160L |
| Worktable | |
| Worktable size (L×W) | 1200×600mm |
| T-slots size (N×W×D) | 5-18x100mm |
| Travel | |
| X/Y/Z axis travel | 1100/600/600mm |
| Machining range | |
| Distance from spindle center to column | 650mm |
| Distance from spindle nose to worktable surface | 120-720mm |
| Spindle | |
| Spindle taper | BT40 |
| Spindle power | 11kw |
| Max. spindle speed | 8000rpm |
| Feed | |
| Max. feed speed | 10m/min |
| Rapid feed speed (X/Y/Z) | 24/24/20m/min |
| Ball screw | |
| X/Y/Z axis ball screw | 4012 |
| Tool magazine | |
| Tool magazine capacity | 24T |
| Max. length of tool | 300mm |
| Tool change time | 1.5s |
| Positioning accuracy | |
| Positioning accuracy (X/Y/Z) | ±0.005mm |
| Re-positioning accuracy (X/Y/Z) | ±0.003mm |
| Machine dimension | |
| L×W×H | 3350×2300×2550mm |
| Machine weight | |
| Max. loading of worktable | 800kg |
| Machine weight | 6200kg |
Main(Key) Features of VMC1160
- High-rigidity design of the bed, servo, spindle, etc., enhance the extreme heavy cutting ability.
- It has good heavy cutting ability in plane milling, boring, drilling, and tapping.
- One-piece bed, C-shaped structure, Z axis without counterweight.
- NTN bearing, THK/PMI/HIWIN linear guideway.
- Taiwan ROYAL/VYUCHENG/KENTURN spindle, standard 8000 rpm, optional 10000 rpm.
- China vmc1160 cnc vertical machining center with BT40 spindle taper, 24t disc type tool magazine.
VMC1160 CNC Machine Details
GSK, Fanuc, Siemens controller as optional selection

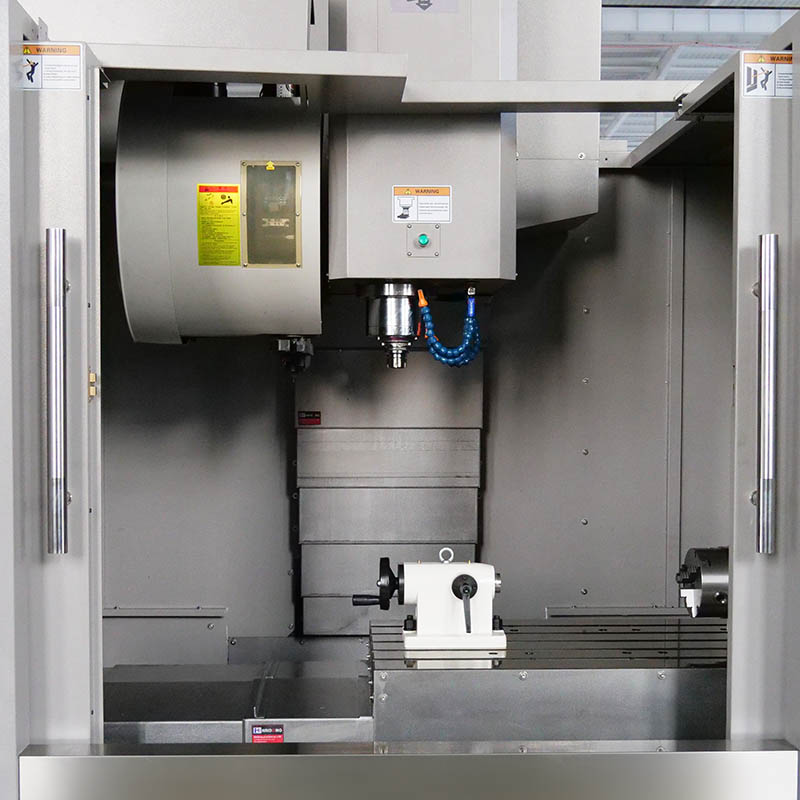

24 ATC
Spindle unit BT40

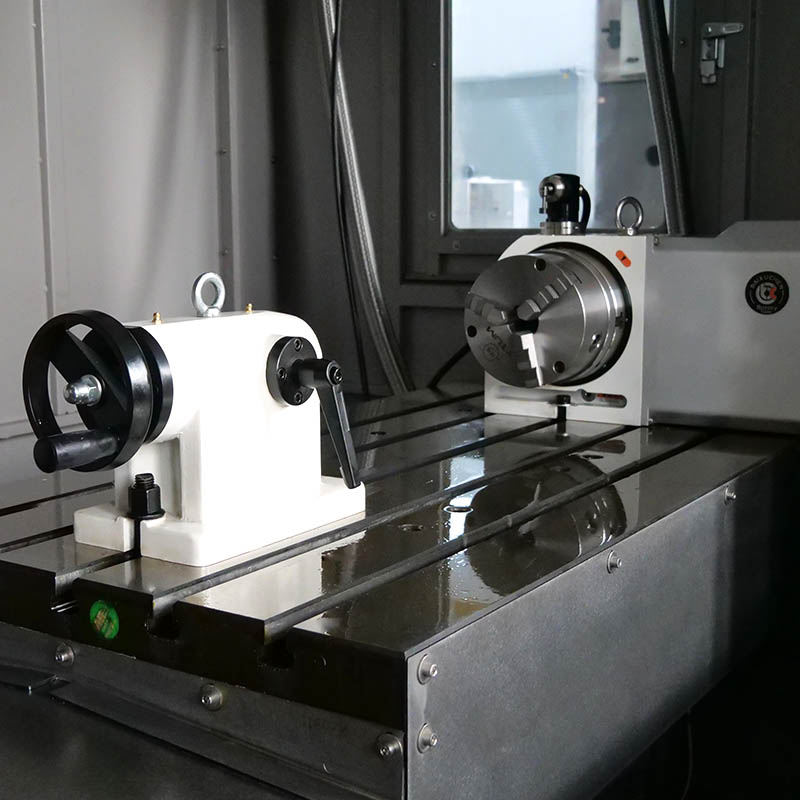

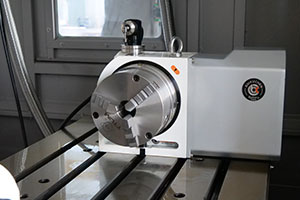

Rotary Table As Optional
