Description

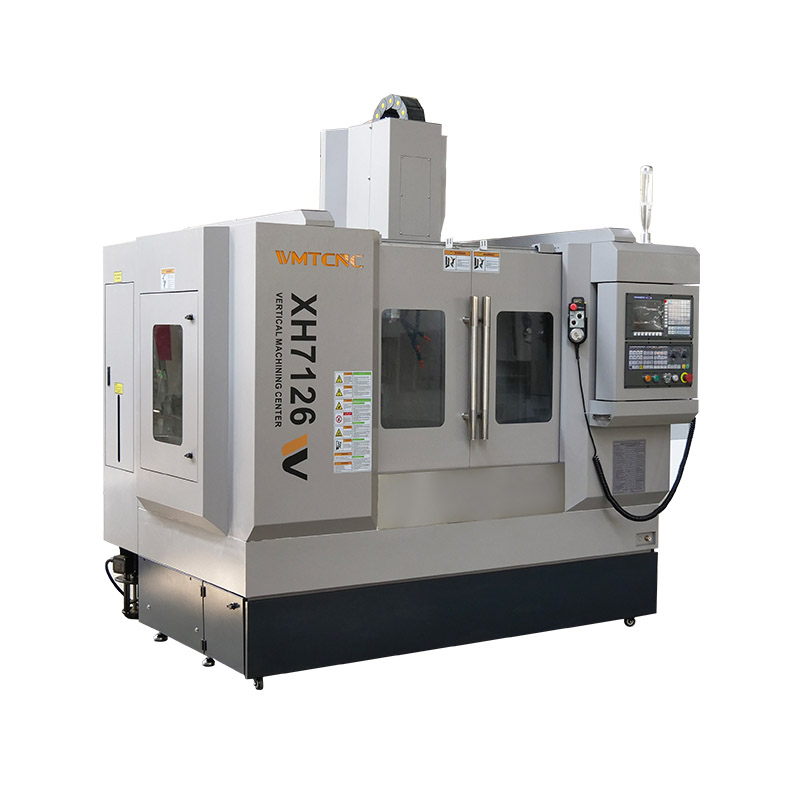

The WMTCNC XH7126 CNC milling machine is specifically designed for machining box, shell, and disc-shaped parts, among others. Furthermore, equipped with a dovetail guideway, this CNC machine ensures exceptional rigidity and stability, guaranteeing precise machining.
The XH7126 CNC milling machine ensures high performance, stability, and precision. Its advanced features optimize machining results, while its rigid structure guarantees reliable, consistent performance. Whether for industrial production or precision engineering, the XH7126 is your ideal choice for superior machining. Trust its capabilities to meet your highest standards with exceptional accuracy and efficiency.
Furthermore, elevate your machining with the XH7126 CNC machine and unlock a new level of precision, reliability, and efficiency for all your projects.
Specification of CNC Mill XH7126
| Specification | XH7126 |
|---|---|
| Worktable size（LxW） | 800x260mm |
| T-slot (NxWxD) | 3-16x75mm |
| X/Y/Z axis travel | 450/320/450mm |
| Distance from spindle center to column | 360mm |
| Distance from spindle nose to worktable surface | 90-540mm |
| Spindle taper | BT40 |
| Spindle power | 3.7kw |
| Max. spindle speed | 8000rpm |
| Max. feed speed | 10m/min |
| Rapid feed speed (X/Y/Z) | 15/15/15 m/min |
| AC servo motor torque (X/Y/Z) | 6/6/15N.m |
| X/Y/Z feed motor power | 1/1/2kw |
| Rated power | 8kw |
| X/Y/Z axis ball screw | 2510 |
| Tool magazine capacity | 12T |
| Max. length of tool | 200mm |
| Tool change time (T-T) | 7s |
| Positioning accuracy (X/Y/Z) | ±0.02mm |
| Re-positioning accuracy (X/Y/Z) | ±0.01mm |
| Machine dimension (LxWxH) | 2100x1850x2250mm |
| Max. loading of worktable | 200kg |
| Machine weight | 2200kg |
Main Features of Milling Machine CNC
- High-precision milling machine designed for optimal performance and accuracy.
- Sturdy worktable with dimensions of 800x260mm, capable of handling a maximum load of 200kg.
- Versatile machining range with X/Y/Z axis travel of 450/320/450mm.
- BT40 spindle taper and 3.7kw spindle power for efficient and precise cutting.
- Impressive maximum spindle speed of 8000rpm for rapid material removal.
- AC servo motors with torque values of 6/6/15N.m ensure smooth and reliable operation.
- Rapid feed speeds of 15m/min for increased productivity.
- 12T tool magazine for quick and seamless tool changes.
- Exceptional positioning accuracy of ±0.02mm and re-positioning accuracy of ±0.01mm.
- Compact design with machine dimensions of 2100x1850x2250mm and a weight of 2200kg.
- Elevate your machining capabilities with the XH7126 CNC milling machine, delivering outstanding precision, efficiency, and versatility.
Exhibition and Events
WMTCNC actively participates in numerous professional CNC machine and machine tool exhibitions worldwide each year. These include the annual CIMES and CIMT in Beijing, the biannual China Import and Export Fair (Canton Fair), the EMO exhibition in Europe, the Czech Industrial Exposition, the Poznan Exhibition, and various other international events. Furthermore, these exhibitions allow us to showcase our latest innovations and connect with industry professionals.
We are eager to collaborate with our customers and jointly attend these CNC machine exhibitions. Moreover, if you are interested, please feel free to contact us—we would be delighted to explore opportunities for joint participation.
Machine details

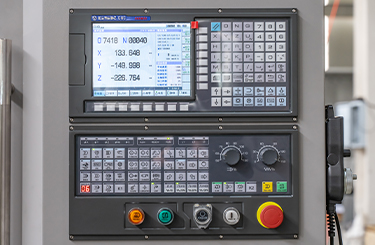

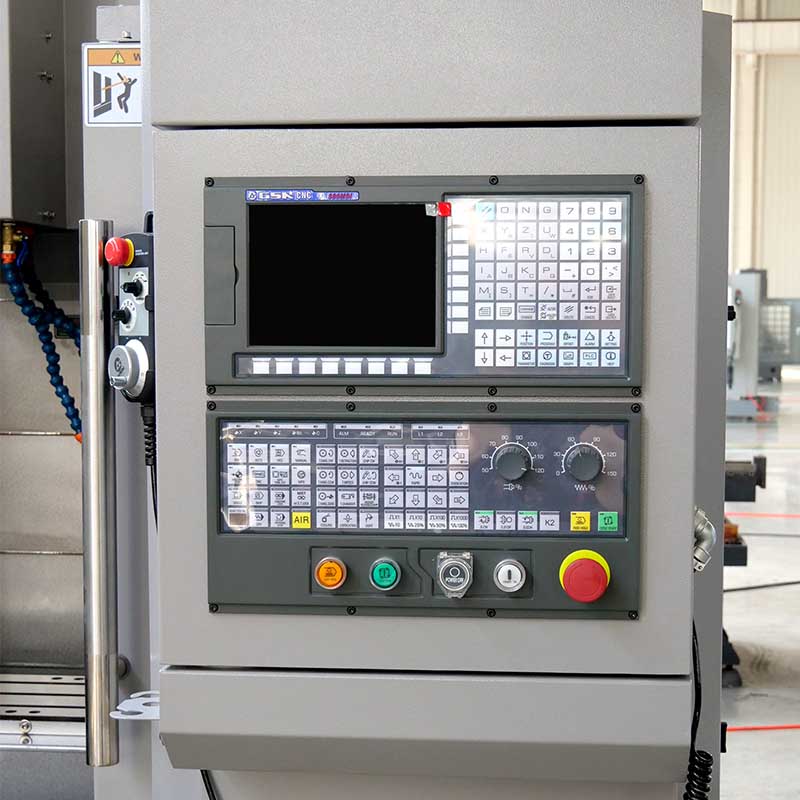

GSK, Fanuc, Siemens controller as optional selection

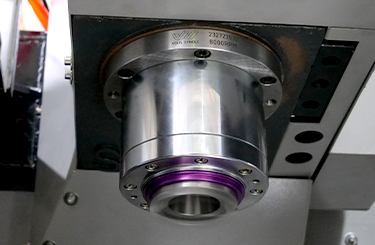

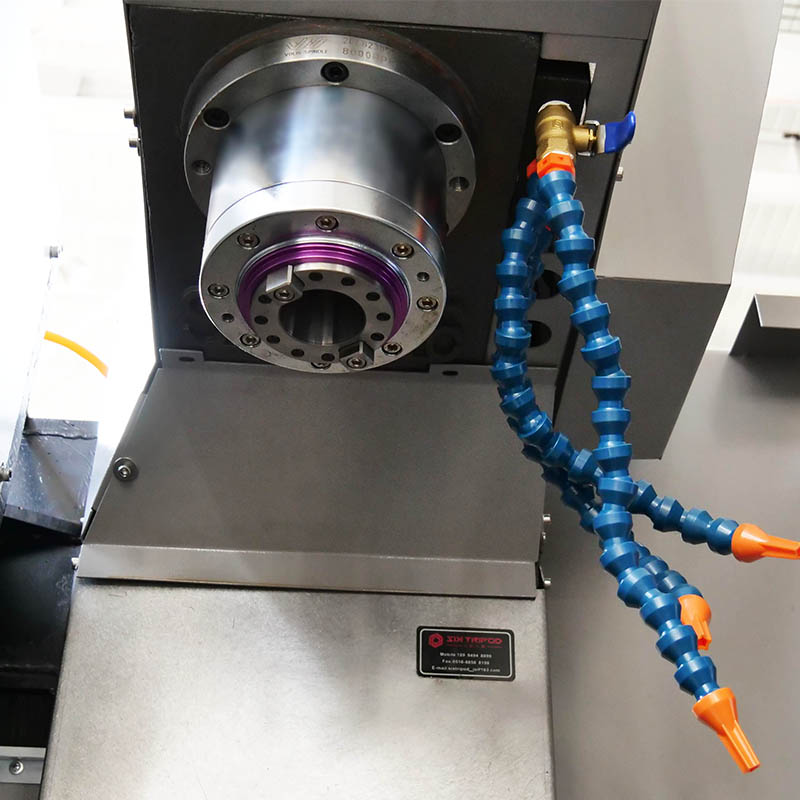

Spindle unit BT40

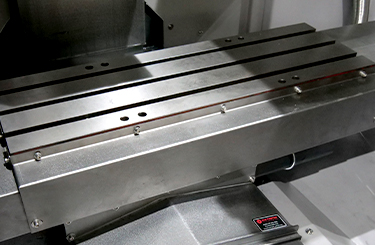

800x260mm Worktable

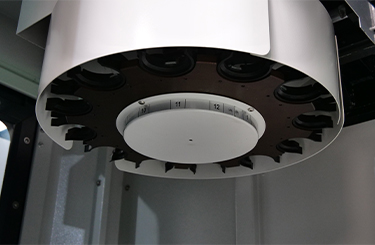

12 pcs Tool Magazine
FAQ
Q1:What materials can CNC milling machines process?
A1:The WMTCNC’s CNC milling machine can process a wide range of materials, including metals, plastics, and composites. Moreover, its robust design ensures efficient machining of both hard and soft materials with high precision.
Q2: How is the warranty?
A2: Warranty time is 13 months after BL date.
Q3: Can we visit your factory before order?
A3: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
