Description

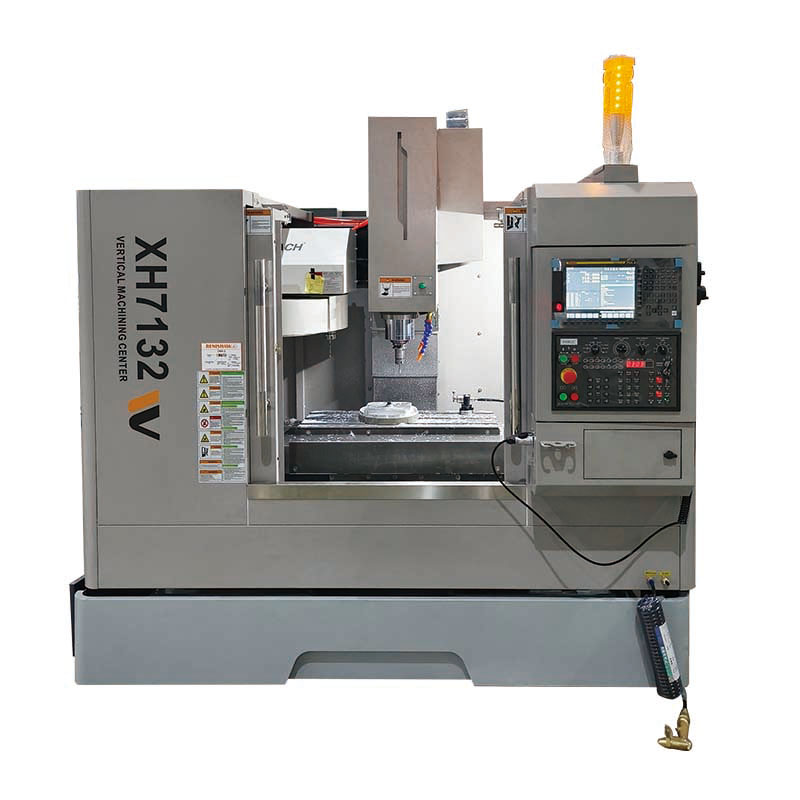

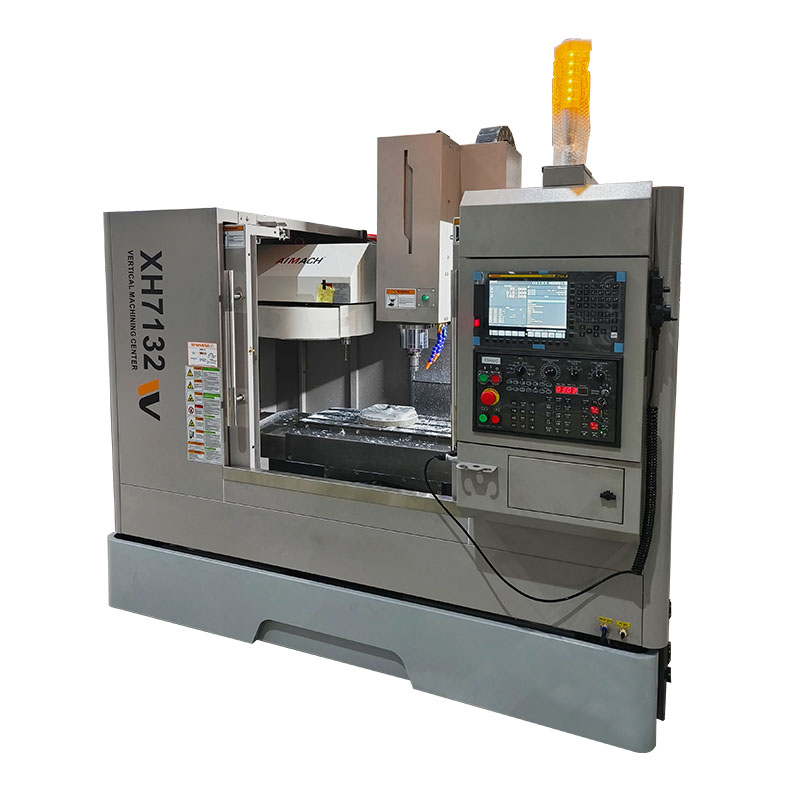

The WMTCNC 3-axis CNC Milling Machine XH7132 is perfect for machining box, shell, and disc-shaped parts. Its design ensures efficiency, versatility, and high rigidity, stability, and support for precise machining.
The XH7132 offers outstanding performance with strong rigidity, long-term stability, and higher accuracy. These features ensure optimal, consistent, and high-quality results for all your machining needs.
CNC milling machines offer high precision, efficiency, and automation, reducing human error while increasing productivity. Moreover, they can handle complex designs with consistent accuracy, making them ideal for various industries. Additionally, their ability to work with multiple materials enhances versatility, ensuring optimal performance for both prototyping and mass production.
Why Choose WMTCNC?
Manufacturing Ability
WMTCNC stands out for its strong manufacturing capabilities, with state-of-the-art facilities and a skilled team dedicated to producing high-quality CNC machinery. Our advanced production lines and rigorous quality control systems ensure that every product meets international standards. Furthermore, our experience in handling custom orders allows us to deliver tailored solutions to meet specific customer needs.
Competitive Price, Leaving The Biggest Profit To You
At WMTCNC, we prioritize offering competitive pricing without compromising on quality. Our efficient manufacturing processes and direct sourcing of materials help reduce production costs, allowing us to pass on the savings to our customers. As a result, you benefit from the best possible price, maximizing your profits while ensuring reliable, high-performance machinery.
Specification
| Specification | XH7132 |
| Worktable | |
| Worktable size (L×W) | 800×320mm |
| T-slot (N×W×D) | 3-16×100mm |
| Travel | |
| X/Y/Z axis travel | 600/400/450mm |
| Machining range | |
| Distance from spindle center to column | 400mm |
| Distance from spindle nose to worktable surface | 100-550mm |
| Spindle | |
| Spindle taper | BT40 |
| Spindle power | 5.5kw |
| Max. spindle speed | 8000rpm |
| Feed | |
| Max. feed speed | 10m/min |
| Rapid feed speed (X/Y/Z) | 20/20/18m/min |
| Power | |
| AC servo motor torque (X/Y/Z) | 7.7/7.7/15N.m |
| X/Y/Z feed motor power | 1.5/1.5/2kw |
| Rated power | 11kw |
| Ball screw | |
| X/Y/Z axis ball screw | 3210 |
| Tool magazine | |
| Tool magazine capacity | 12T/16T (optional) |
| Max. length of tool | 200mm |
| Tool change time (T-T) | 7s |
| Positioning accuracy | |
| Positioning accuracy (X/Y/Z) | ±0.01mm |
| Re-positioning accuracy (X/Y/Z) | ±0.005mm |
| Machine dimension | |
| L×W×H | 2200×1950×2300mm |
| Machine weight | |
| Max. loading of worktable | 300kg |
| Machine weight | 2400kg |
Main Features
- High-precision milling machine designed for optimal performance and accuracy.
- Sturdy worktable with dimensions of 800x320mm.
- Versatile machining range with X/Y/Z axis travel of 600/400/450mm.
- BT40 spindle taper and 5.5kw spindle power for efficient and precise cutting.
- Impressive maximum spindle speed of 8000rpm for rapid material removal.
- AC servo motors with torque values of 7.7/7.7/15N.m ensure smooth and reliable operation.
- 16T tool magazine for quick and seamless tool changes.
- Exceptional positioning accuracy of ±0.01mm and re-positioning accuracy of ±0.005mm.
- Elevate your machining capabilities with the XH7132 3 axis cnc milling machine, delivering outstanding precision, efficiency, and versatility.
Certificates
At WMTCNC, we ensure our products meet the strict health, safety, and environmental standards required in the European Economic Area (EEA). This commitment underscores our dedication to quality.
Additionally, we prioritize delivering high-performance machinery that safeguards both customer well-being and the environment, solidifying our position as a trusted CNC industry leader.
Machine Details
GSK, Fanuc, Siemens controller as optional selection

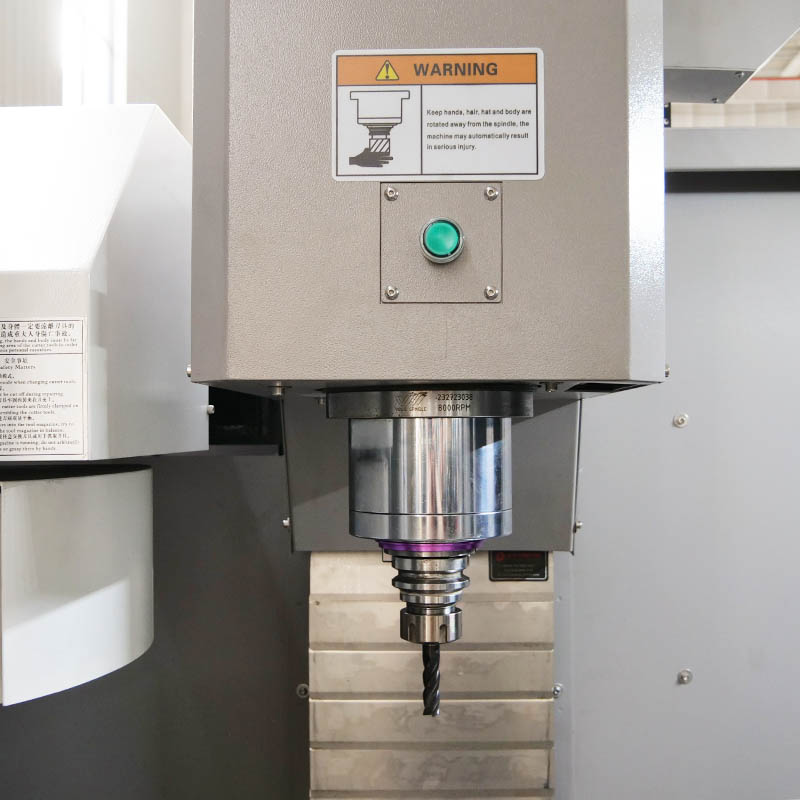

Spindle unit BT40
1250X360mm Worktable

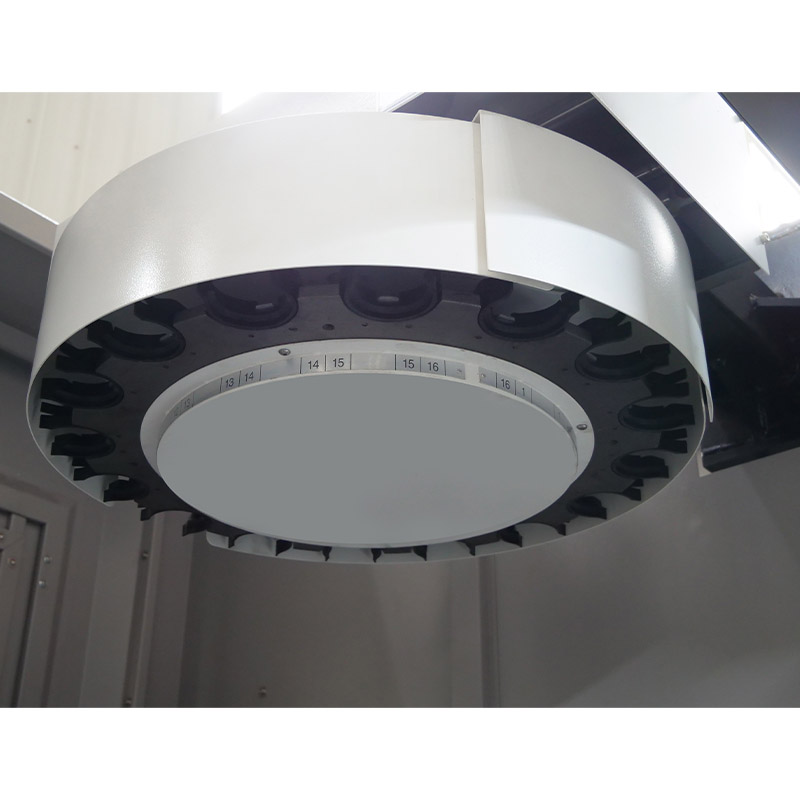

16 pcs Tool Magazine
FAQ
Q1:What materials can CNC milling machines process?
A1:The WMTCNC‘s CNC milling machine can process a wide range of materials, including metals, plastics, and composites. Moreover, its robust design ensures efficient machining of both hard and soft materials with high precision.
Q2: How is the warranty?
A2: Warranty time is 13 months after BL date.
Q3: Can we visit your factory before order?
A3: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
