Description

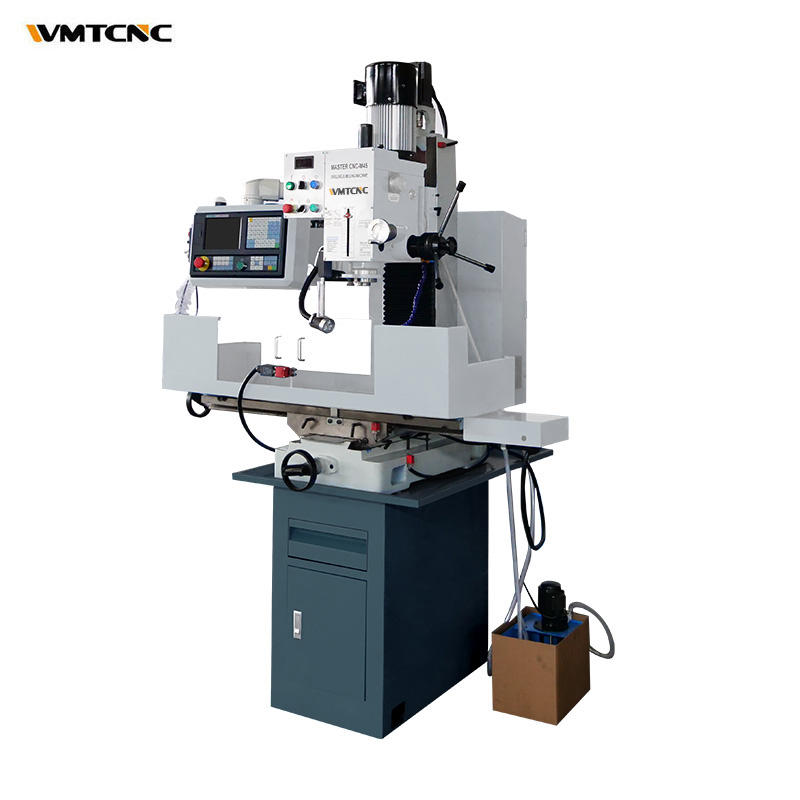

Mini drilling milling machine CNC-M45 is a small CNC milling machine. The machine tool is a small household, educational economical CNC machine tool. It can process ferrous metal stainless steel, 45 steel, non-ferrous metal copper, aluminum, plastic and wood and other different materials.
WMTCNC CNC milling machines deliver high precision, durability, and efficiency, ensuring stable performance for various applications. Moreover, their advanced control systems and robust construction enhance machining accuracy and reliability. This makes them an excellent choice for industries requiring consistent quality, from prototyping to mass production, while optimizing productivity and cost-effectiveness.
Specification of CNC Milling Machine CNC-M45
| Specification | CNC-M45 |
|---|---|
| Max. drilling capacity | 45mm |
| Max. milling diameter | 80mm |
| Max. tapping capacity | 20mm |
| Distance from spindle nose to table | 530mm |
| X-axis travel | 630mm |
| Y-axis travel | 265mm |
| Z-axis travel | 460mm |
| Table size | 1000×240mm |
| Distance from spindle to column | 291mm |
| Spindle sleeve travel | 130mm |
| Spindle taper | MT4/MT3/R8 |
| Spindle motor | 2.2KW variable frequency motor |
| Spindle motor voltage | Single phase/220V |
| Feed motor (X/Y/Z) | X/Y servo 750W + Z brake 1000W |
| Spindle speed (two gears + stepless speed regulation) | 0-2600PRM |
| CNC system | after990MDCa |
| Packing Size | 1450×1150×1618mm |
| N.W/G.W | 490KG/520KG |

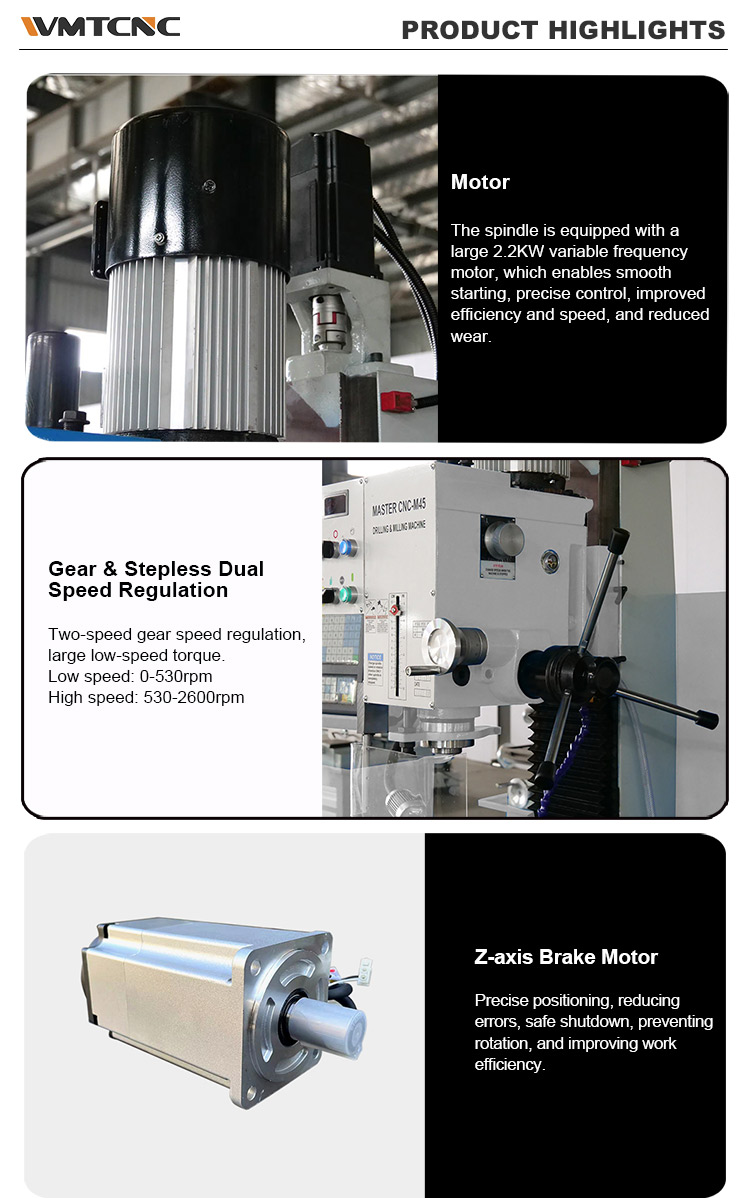

Main Features
The casting is optimized, about 25% more weight and more rigid than the same machine in the market.
Convenient and easy to operate. Can be manual or CNC.
Two-speed gear speed regulation of the spindle, low-speed torque.
Frequency variable motor, infinitely variable speed regulation.

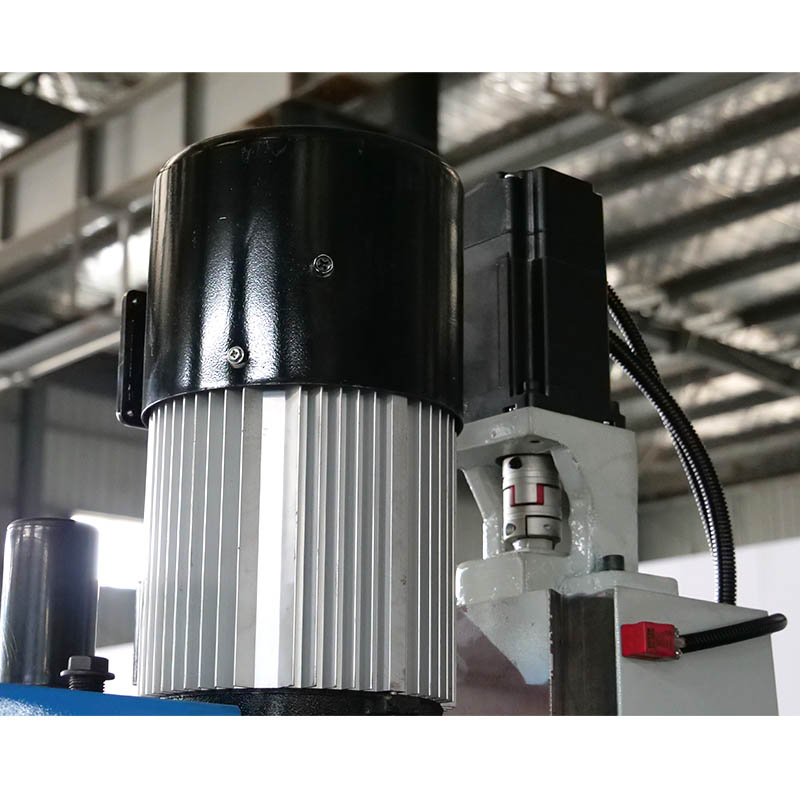

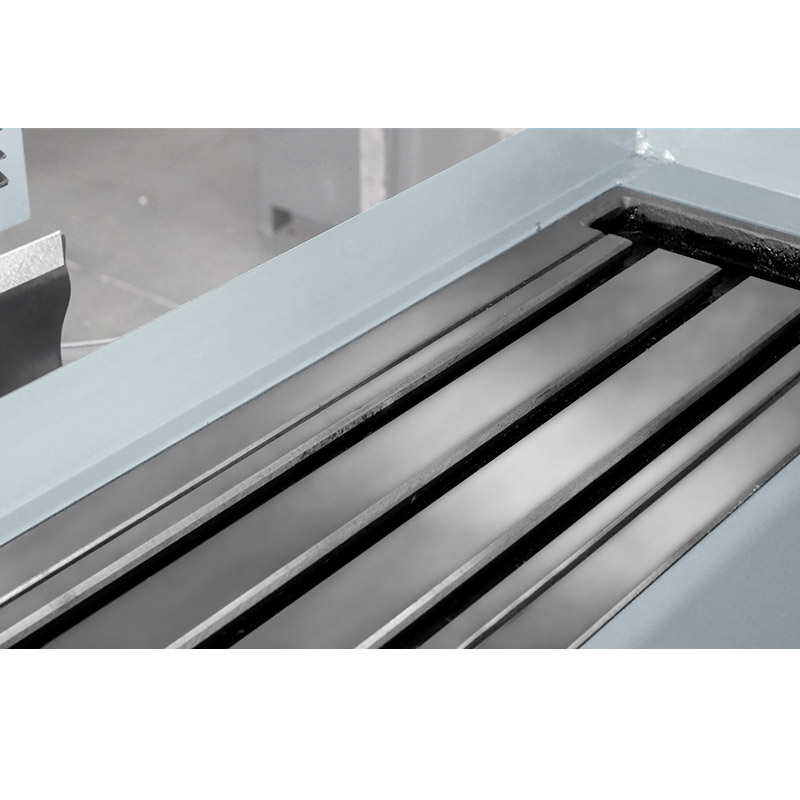

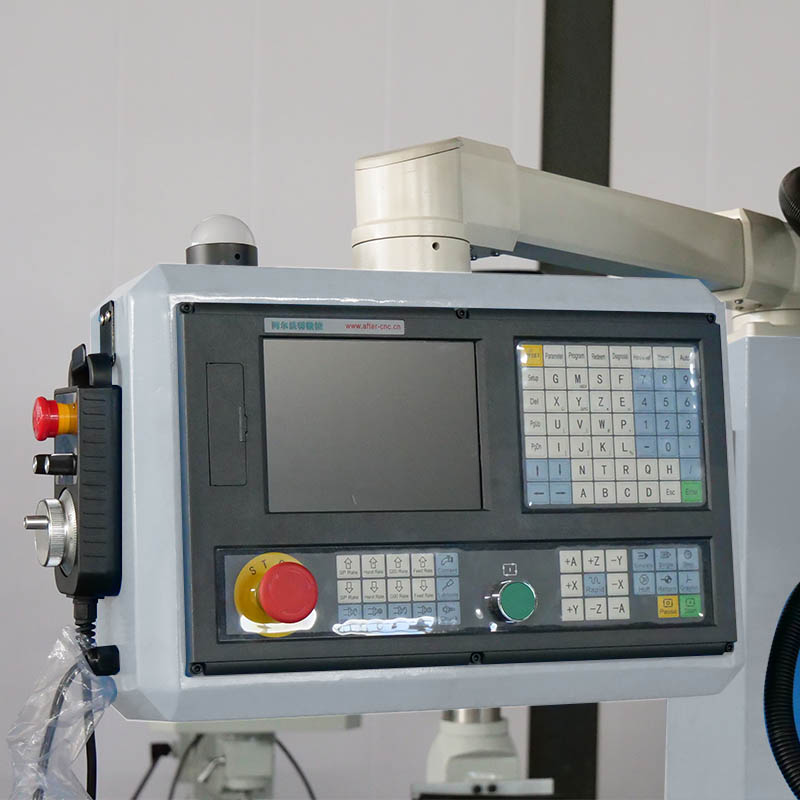

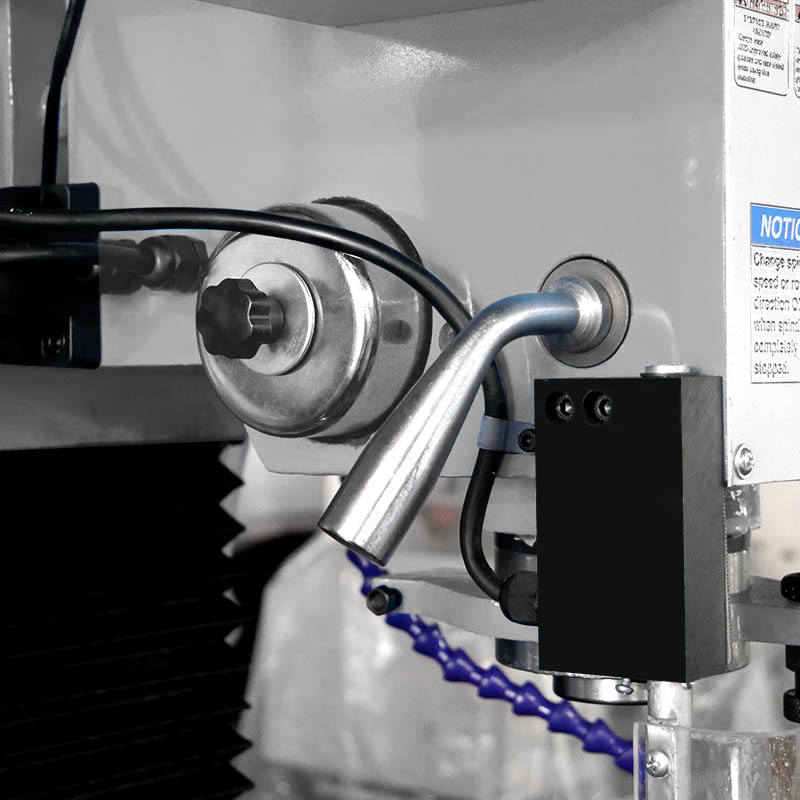

Machine Details of Mini Drilling Milling Machine
FAQ
Q1:What materials can CNC milling machines process?
A1:The WMTCNC’s CNC milling machine can process a wide range of materials, including metals, plastics, and composites. Moreover, its robust design ensures efficient machining of both hard and soft materials with high precision.
Q2: How is the warranty?
A2: Warranty time is 13 months after BL date.
Q3: Can we visit your factory before order?
A3: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
