Description

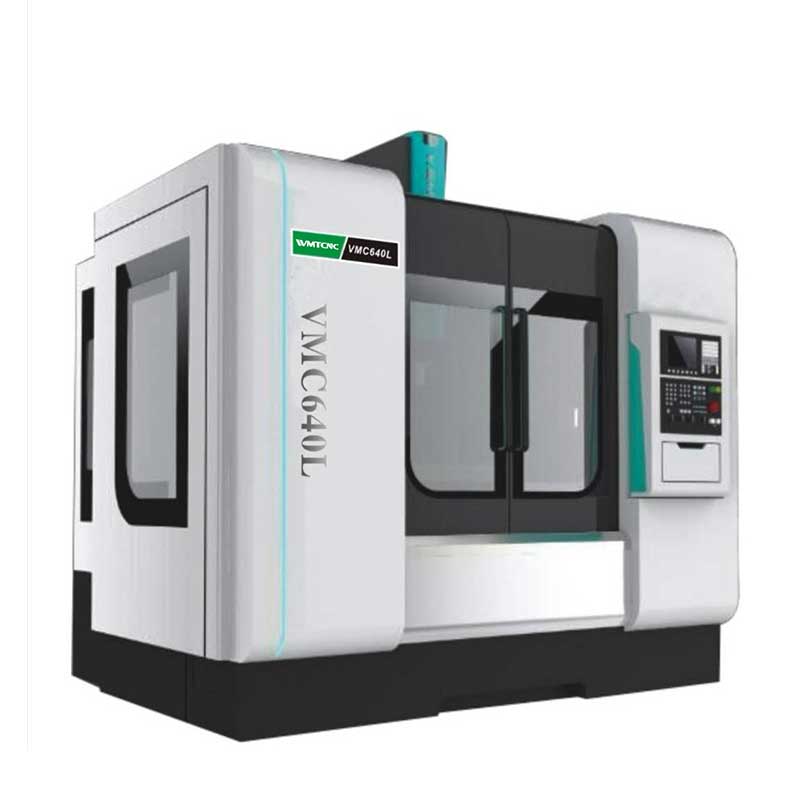

With advanced international standard of designing,modern structure, high quality components and spare parts introduced to this machine tool, no matter precise elements machining or mould processing,WMT BRAND Vertical machining center VMC640L will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
Specification
| Specification | VMC640L |
|---|---|
| Worktable size（LxW） | 900x400mm |
| T-slot (NxWxD) | 3x18x100mm |
| X/Y/Z axis travel | 640/400/500mm |
| Distance from spindle center to column | 476mm |
| Distance from spindle nose to worktable surface | 120-620mm |
| Spindle taper | BT40 |
| Spindle power | 5.5kw |
| Max. spindle speed | 8000rpm |
| Max. feed speed | 15m/min |
| Rapid feed speed (X/Y/Z) | 30/30/24m/min |
| X/Y/Z axis ball screw | 3212/3212/4012 |
| Tool magazine capacity | 16T |
| Max. length of tool | 240mm |
| Tool change time (T-T) | 2.5s |
| Positioning accuracy (X/Y/Z) | ±0.010mm |
| Re-positioning accuracy (X/Y/Z) | ±0.005mm |
| LxWxH | 2200x2100x2550mm |
| Max. loading of worktable | 350kgs |
| Machine weight | 4100kgs |
s
Main Features
- Spindle unit BT40 by KENTURN Brand with 8000rpm or 1000rpm as your requirement.
- Precious Ball Screwby PMI or HIWIN Brand
- Disk type ATC 24pcs by OSHIMA Brand
- FANUC 0i MF(5) as standard CNC controller system, and Mitsubishi System or Siemens system as optional selection.
- Optimized Structure of Heavy Rail Linear Guide
- Suitable for machining parts of automobile, mold industry and so on.
Machine details

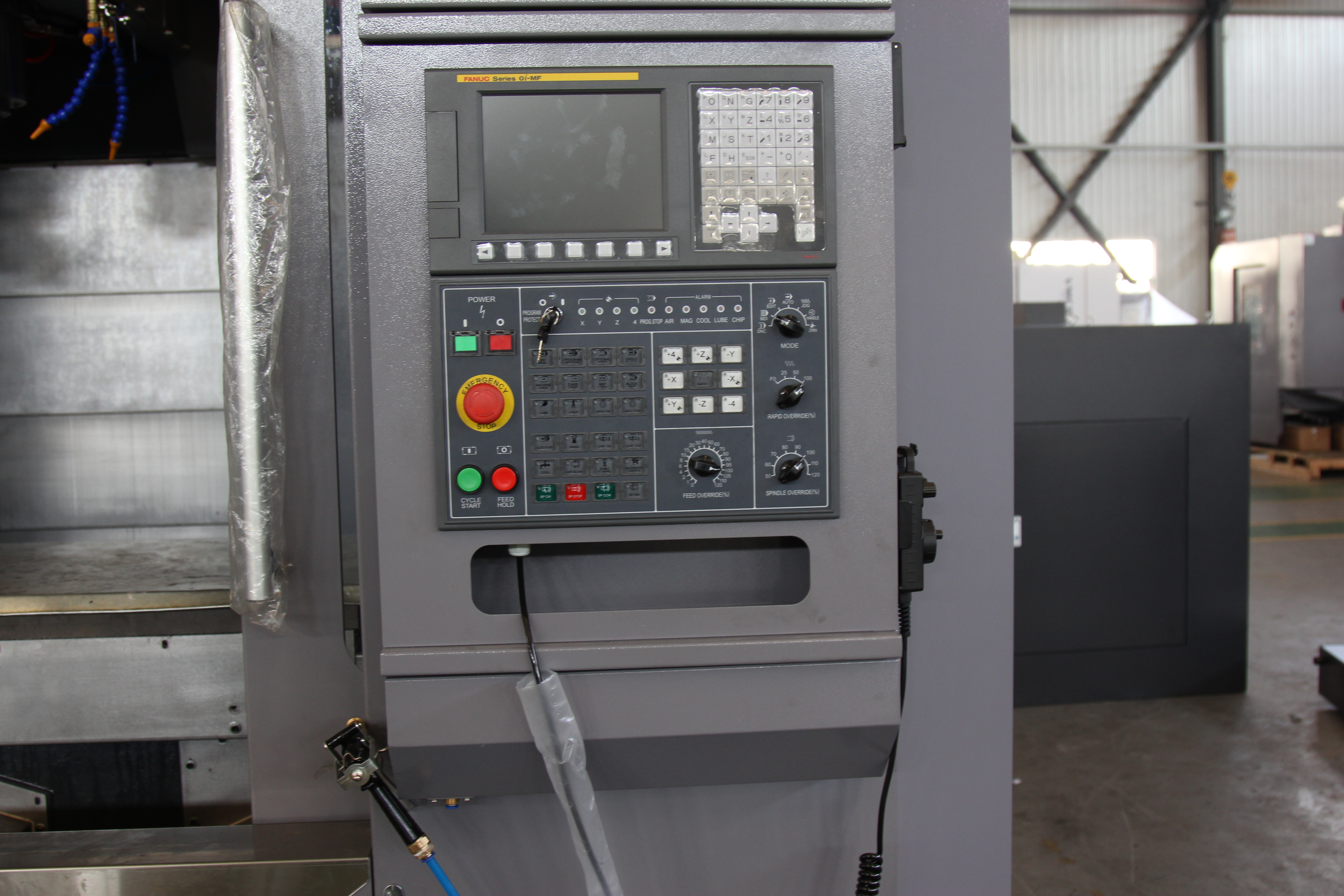

GSK, Fanuc, Siemens controller as optional selection

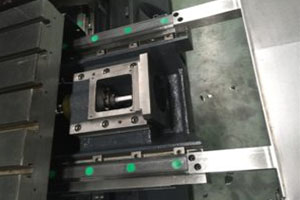

Linear guideway

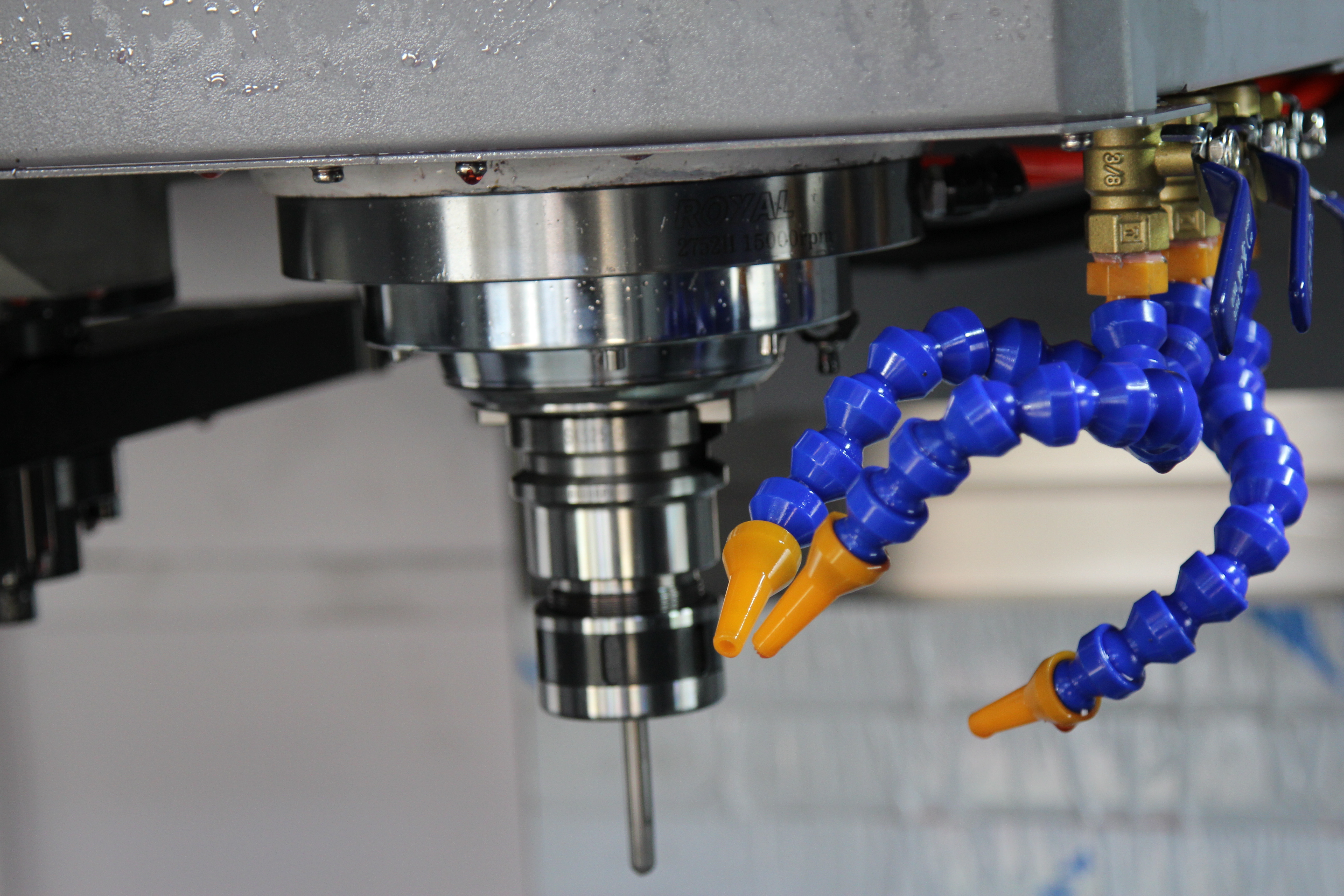

Spindle unit BT40

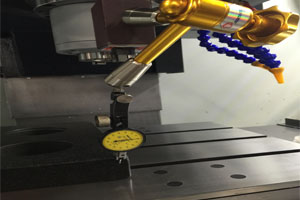

Inspection
