Description

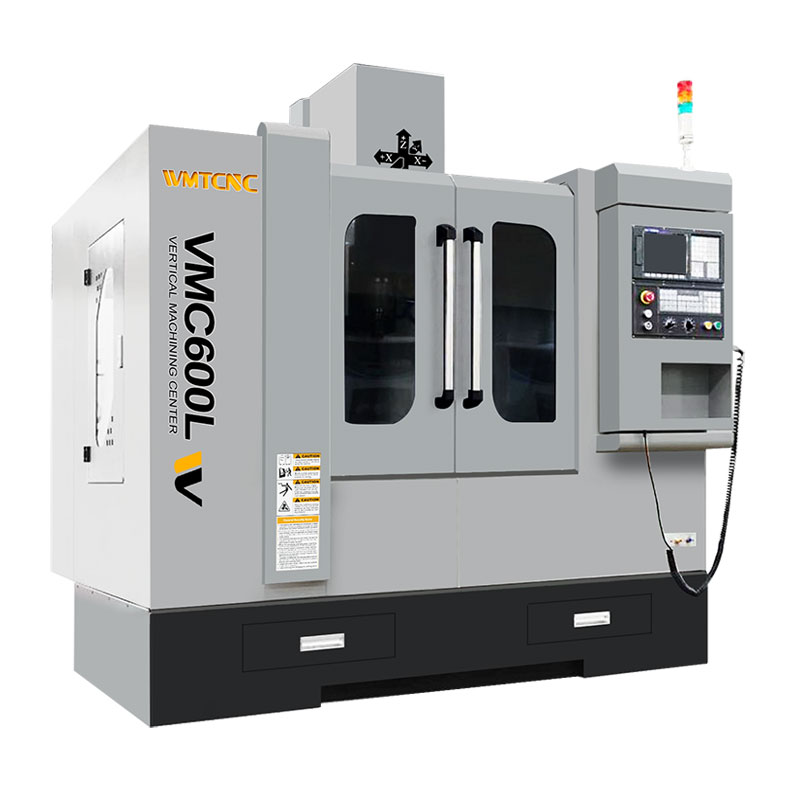

The WMTCNC VMC machine VMC600L is a high-performance vertical machining center designed for general mold processing. This state-of-the-art machine is equipped with advanced features and cutting-edge technology, making it an ideal choice for precision manufacturing applications.
The VMC600L CNC VMC machine is equipped with a user-friendly interface and intuitive controls, enabling operators to easily program and operate the VMC machines. Its advanced CNC system allows for complex machining operations, ensuring optimal performance and productivity.
Specification
Specification | VMC600L |
Worktable size（LxW） | 800x400mm |
T-slot (NxWx D) | 3x14x100mm |
X/Y/Z axis travel | 600/400/450mm |
Distance from spindle center to column | 550mm |
Distance from spindle nose to worktable surface | 100-550mm |
Spindle taper | BT40 |
Spindle power | 5.5kw |
Max.spindle speed | 8000rpm |
Max.feed speed | 10m/min |
Rapid feed speed（X/Y/Z) | 30/30/25m/min |
X/Y/Z axis ball screw | 3210 |
Tool magazine capacity | 12T/16T(optional) |
Max.length of tool | 300mm |
Tool change time(T-T) | 7s/2.5s |
Positioning accuracy（X/Y/Z) | ±.0.005mm |
Re-positioning accuracy（X/Y/Z) | ±.0.002mm |
LxWxH | 1900x1700x2240mm |
Max.loading of worktable | 300kgs |
Machine weight | 3500kgs |
Main Features
- Spindle unit BT40 with 10000rpm.
- Umbrella type ATC 12pcs
- GSK, Fanuc, Siemens controller, you can select.
- X/Y/Z Linear guideway
- VMC machine is suitable for machining parts of automobile, mold industry and so on.
Machine Details
GSK, Fanuc, Siemens controller as optional selection

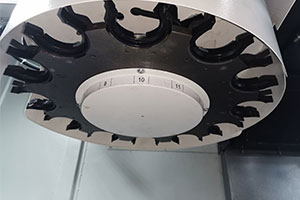

Umbrella type ATC 12pcs

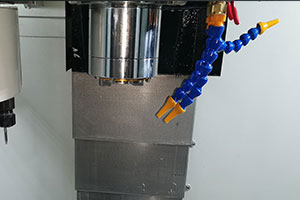

Spindle unit BT40

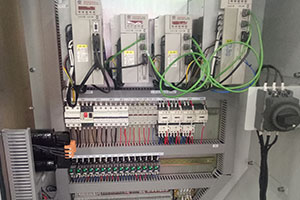

Electrical cabinet
