Description

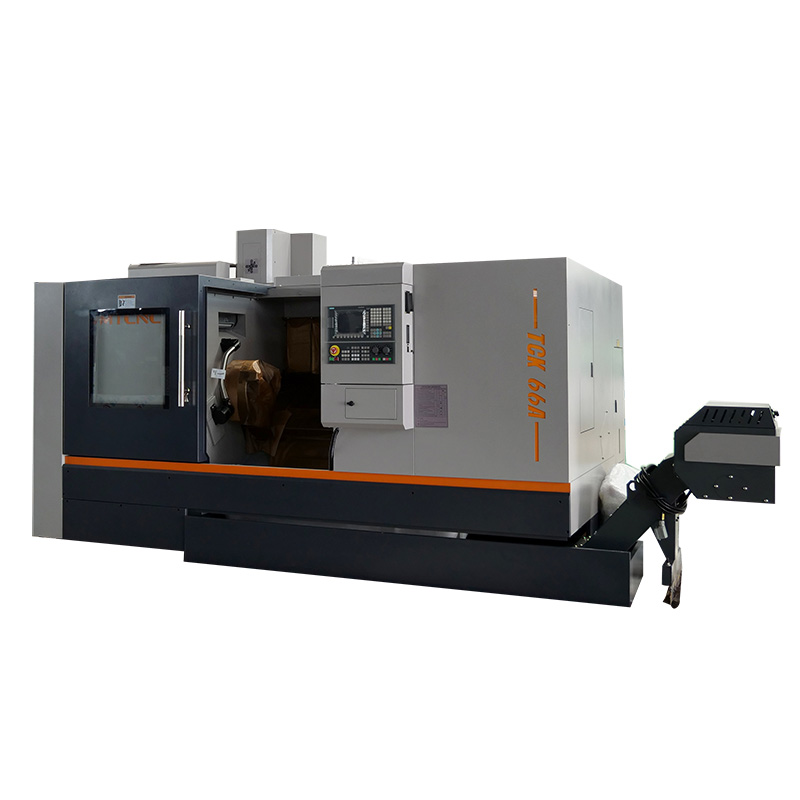

The TCK66A CNC Inclined Bed Lathe Turning Center is a high-value, high-performance precision machining solution. Built with exceptional rigidity and long-term stability, it ensures outstanding accuracy and consistency across a wide range of machining tasks. Designed to enhance productivity while reducing energy consumption, the TCK66A is suitable for precision cutting of various metals and non-metals. With its advanced structural design and reliable transmission system, this machine maintains high efficiency and stability even during extended operation, delivering consistent top-quality output and boosting overall manufacturing productivity.
Precision CNC Lathe Machine Specification
| Specification | TCK66-1000/1500/2000/3000 |
|---|---|
| Capacity | |
| Max. swing dia. over bed | φ650mm |
| Max. length of workpiece | 850/1500/2000/3000mm |
| Recommended standard turning diameter | φ305mm |
| Max. turning dia. | φ500mm (disc parts) φ400mm (shaft parts) |
| Max. swing dia. over slide | φ500mm |
| Spindle | |
| Spindle speed range | 60-2000r/min |
| Spindle bore | φ86mm |
| Max. bar diameter | φ70mm |
| Spindle nose | A2-8 |
| Max. spindle output torque | 343N.m |
| Spindle motor | 15KW |
| Hydraulic chuck size | 12″, *15″ |
| Axis | |
| X axis travel | 360mm |
| Z axis travel | 850/1500/2000/3000mm |
| Y axis travel | / |
| X axis rapid traverse | 16 Line-rail (12 Hard-rail)m/min |
| Z axis rapid traverse | 16 Line-rail (12 Hard-rail)m/min |
| Y axis rapid traverse | / |
| Turret | |
| Type | Horizontal hydraulic |
| No. of tool station | 12 position |
| Tool shank size | 25×25mm |
| Boring tool shank size | φ40mm |
| Tailstock | |
| Tailstock travel | 150mm |
| Taper of tailstock quill | M5 |
| Max. Loading Capacity | |
| Disk parts | 400kg |
| Shaft parts | 800kg |
| Machine Dimensions | |
| Overall dimension (L x W x H) | 4070/4820/5320/6320×2436×2480mm |
| Machine weight | 5900/7300/8200/10500kg |
Main Features
- Slant-bed CNC lathe uses a beveled overall bed for more stable force during cutting.
- The bed material is made of high-density cast iron, which has high strength and good shock absorption.
- The increased chip evacuation design ensures smooth machine cutting.
- Japan high precision ball screw ensure positioning accuracy more stable and enables users to obtain higher machining precision, faster moving speed and production efficiency.
- GSK, Siemens, Fanuc controller as optional.

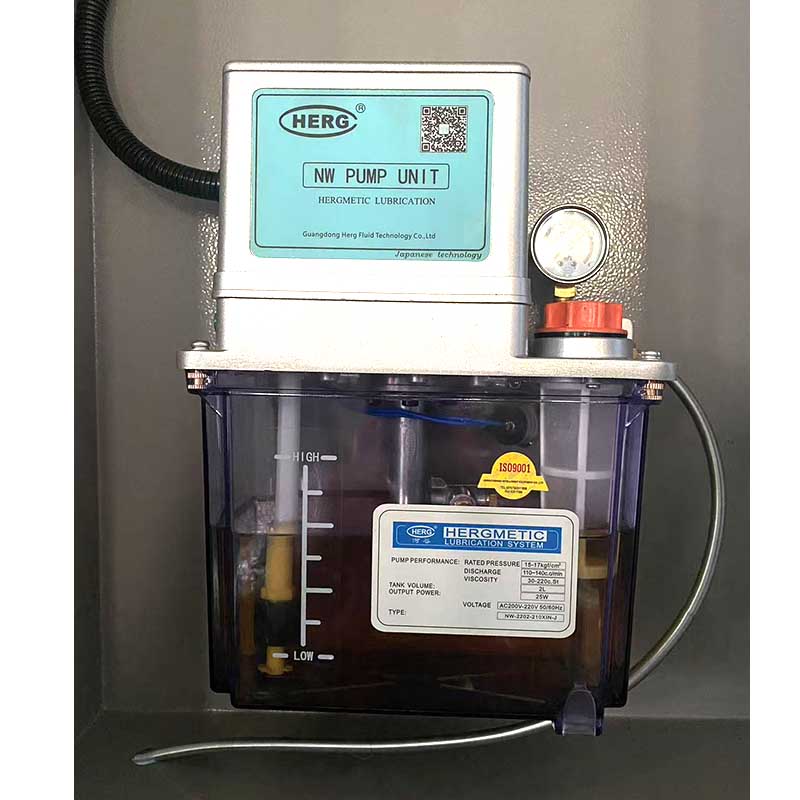

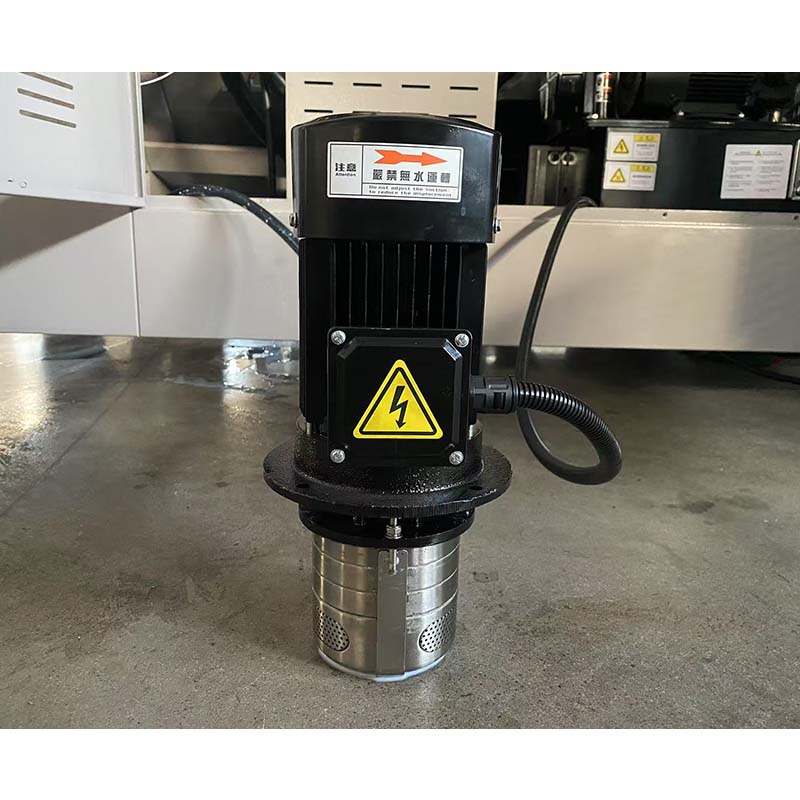

Machine Details

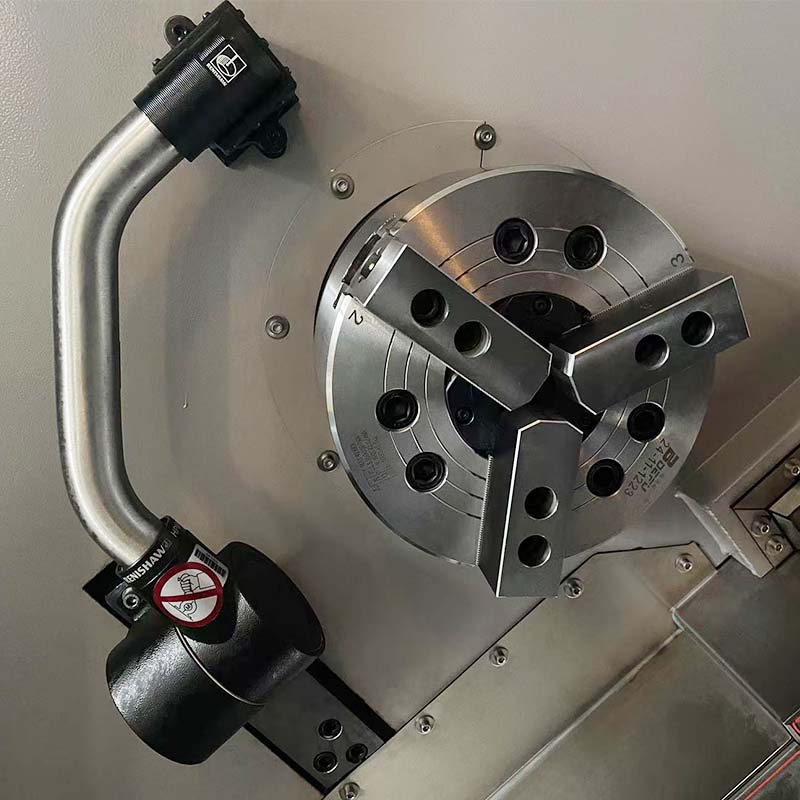

Hydraulic 3 jaw chuck

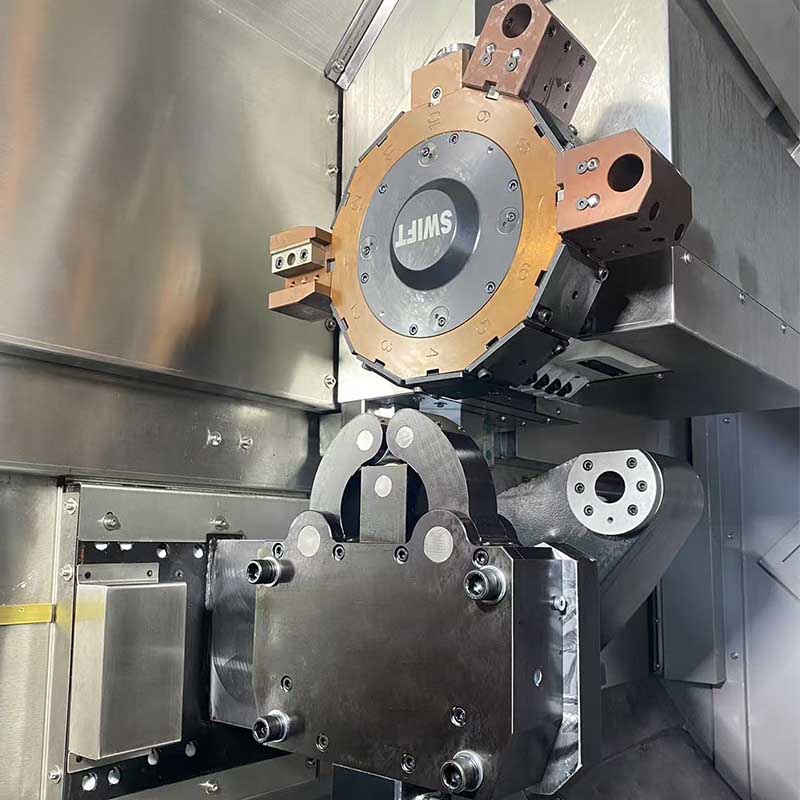

Power turret

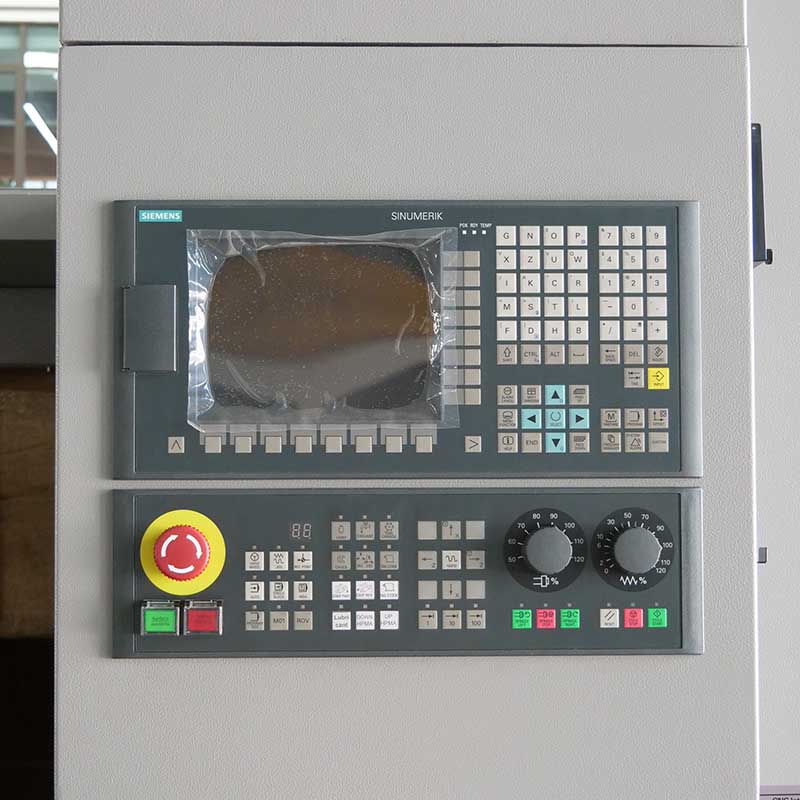

CNC controller

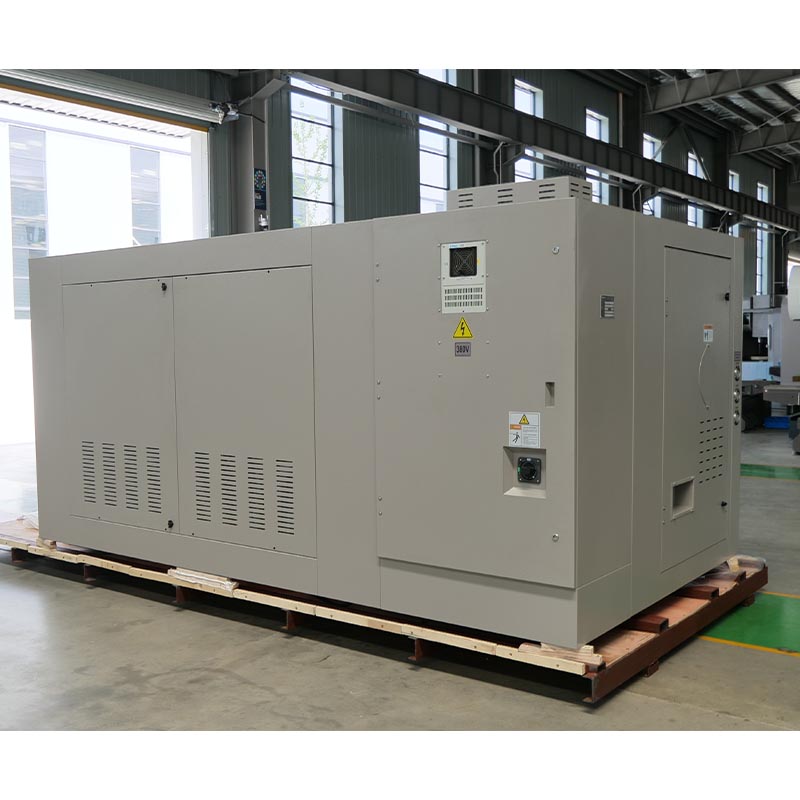

Electrical cabinet
