Description

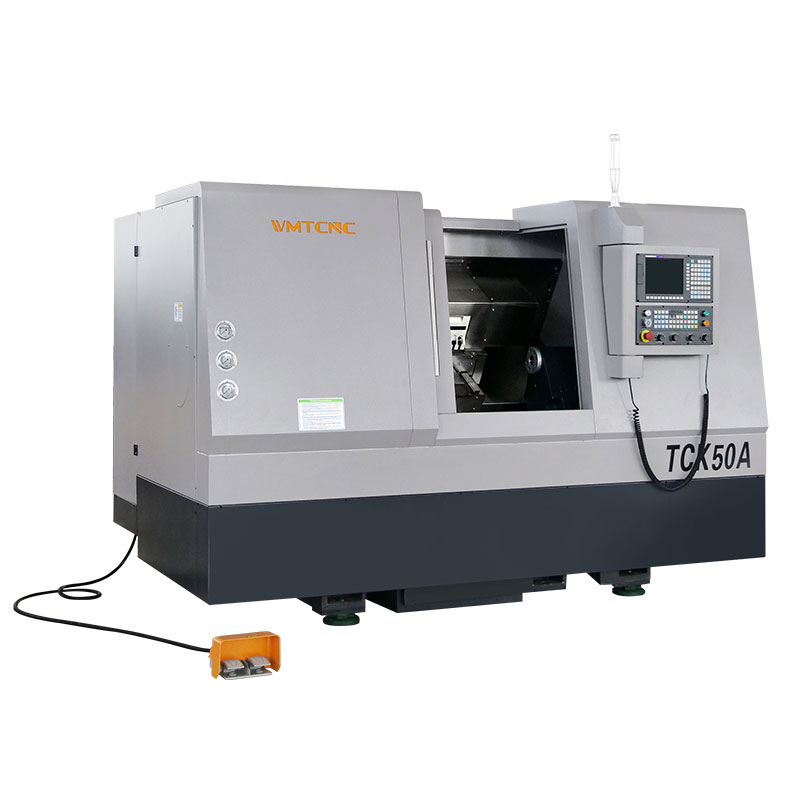

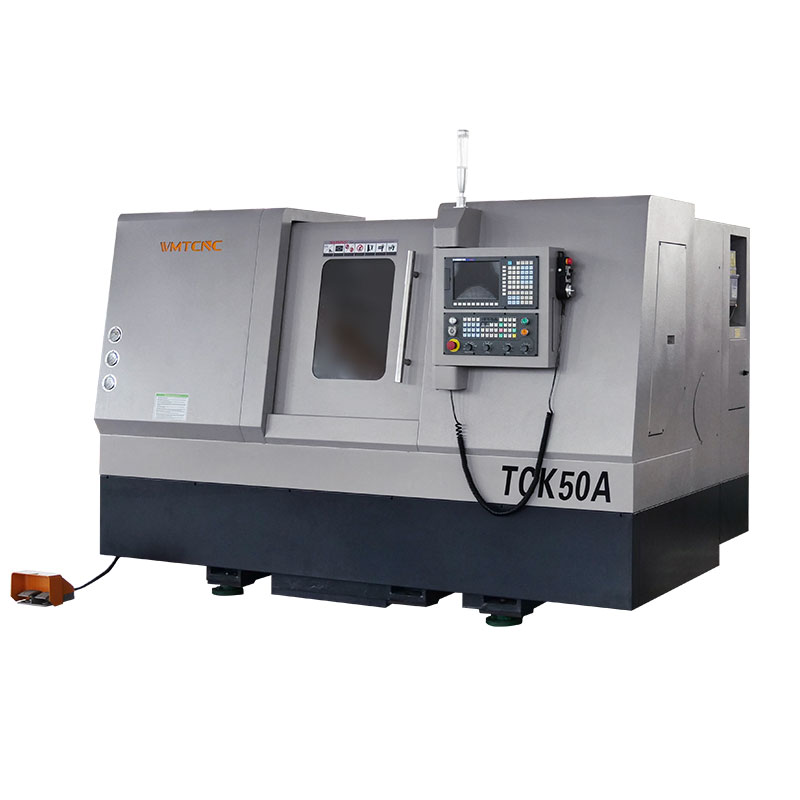

Precision CNC lathe machine TCK50A is a style of economically applicable precision machining equipment, characterized by stability and precision, high efficiency, and low consumption. WMTCNC BRAND precision cnc lathe machine will offer you perfect service through excellent performance, strong rigidity, long-term stability and higher accuracy.
Specification
| Specification | TCK50A-500 |
| Capacity | |
| Max. swing dia. over bed | φ560mm |
| Max. length of workpiece | 600mm |
| Max. turning dia. | Φ430mm (Disc parts) Φ310mm (Shaft parts) |
| Max. swing dia. over slide | φ310mm |
| Max. bar diameter | φ50mm |
| Spindle speed range | 50～3000r/min |
| Spindle bore | φ65mm |
| Spindle nose | A2-6 |
| Max. spindle output torque | 150Nm |
| Spindle motor | 11kw |
| Hydraulic chuck size | 8”/10″ |
| X axis travel | 220mm |
| Z axis travel | 520mm |
| X axis rapid traverse | 30m/min |
| Z axis rapid traverse | 30m/min |
| No. of tool station | 8 position |
| Tool shank size | 25×25mm |
| Boring tool shank size | φ40/φ32/φ25/φ20 |
| Tailstock travel | 350mm |
| Taper of tailstock quill | MT5 |
| Disk parts max. loading capacity | 200kg |
| Shaft parts max. loading capacity | 500kg |
| Overall dimension (L x W x H) | 2960×2160×2100mm |
| Machine weight | 4100kg |
Machine Details
Hydraulic 3 jaw chuck
Power turret
CNC controller
Electrical cabinet
