Description

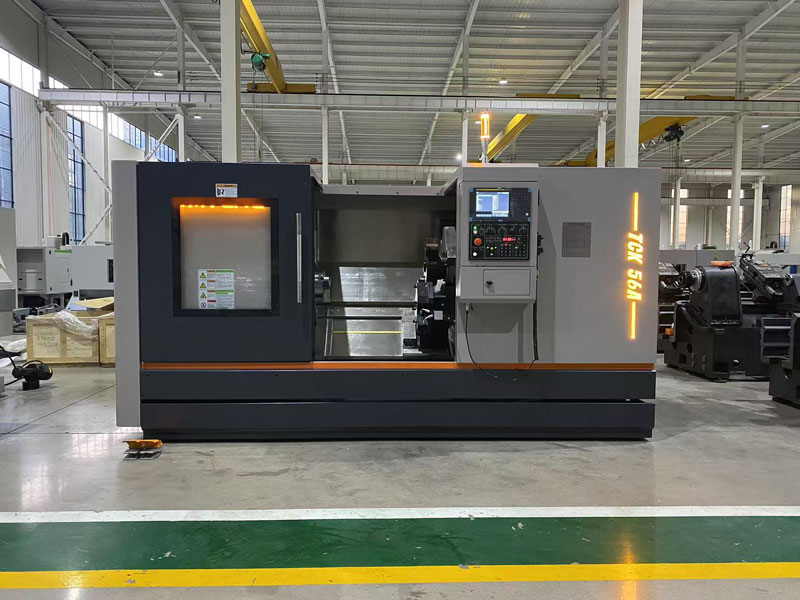

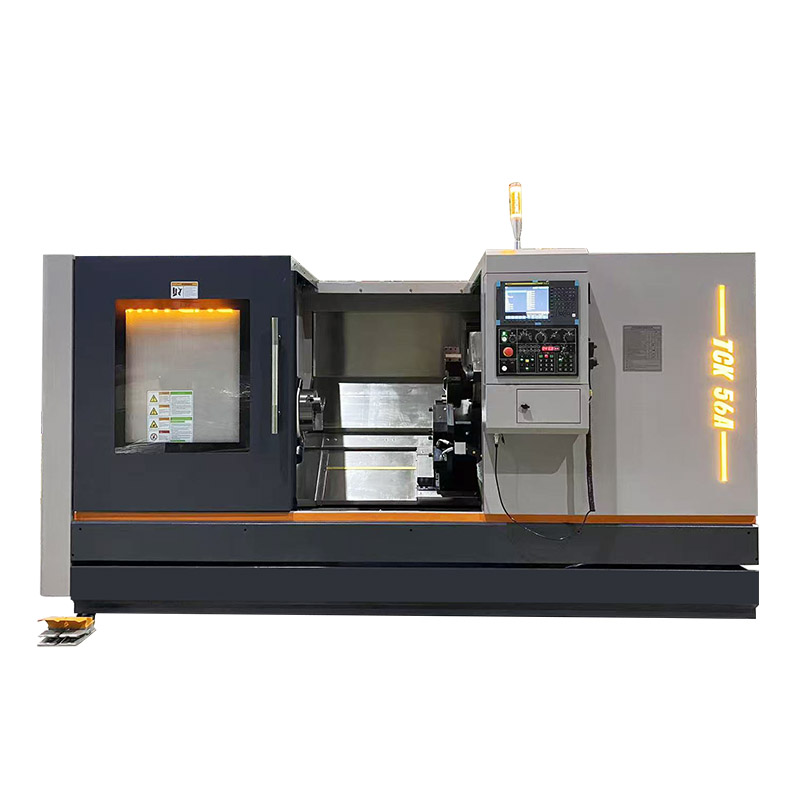

The Inclined Bed Lathe Machine TCK56A is a cost-effective and high-performance solution for precision machining needs. It delivers excellent stability, enhanced efficiency, and low power consumption, making it perfect for a wide range of machining applications. Featuring the trusted WMTCNC brand, this precision CNC lathe machine is known for its robust rigidity and long-lasting stability. This combination ensures superior accuracy, allowing for consistent and reliable results over time. With these outstanding features, the TCK56A ensures improved productivity and exceptional precision in all your machining tasks.
Precision CNC Lathe Machine Specification
Specification | TCK56A-500 | TCK56A-1000 |
Capacity | ||
Max. swing dia. over bed | φ560mm | φ560mm |
Max. processing length | 460mm | 960mm |
Max. turning dia. | Φ460mm (Disc parts) Φ340mm (Shaft parts) | Φ460mm (Disc parts) Φ340mm (Shaft parts) |
Max. swing dia. over slide | φ340mm | φ340mm |
Spindle | ||
Spindle speed range | 50～3000r/min | 50～3000r/min |
Spindle bore | φ65mm, *φ85mm | φ65mm, *φ85mm |
Max. bar dia. | φ50mm, *φ70mm | φ50mm, *φ70mm |
Spindle nose | A2-6 /*A2-8 | A2-6 /*A2-8 |
Max. spindle output torque | 150Nm | 150Nm |
Spindle motor | 11kw | 11kw |
Hydraulic chuck size | 10″ | 10″ |
Axis | ||
X axis travel | 220mm | 220mm |
Z axis travel | 560mm | 1060mm |
X axis rapid traverse | 30m/min | 30m/min |
Z axis rapid traverse | 30m/min | 30m/min |
Turret | ||
Type | Servo turret | Servo turret |
No. of tool station | 8,*12 position | 8,*12 position |
Tool shank size | 25×25mm | 25×25mm |
Boring tool shank size | φ32/φ40mm | φ32/φ40mm |
Tailstock | ||
Tailstock travel | 450mm | 950mm |
Taper of tailstock quill | MT5 | MT5 |
Max. Loading Capacity | ||
Disk parts | 200kg | 200kg |
Shaft parts | 500kg | 500kg |
Machine Dimensions | ||
Overal dimension（L x W x H） | 2850x2068x1880mm | 3660x2070x1880mm |
Machine weight | 4000kg | 4500kg |
Main Features
- Slant-bed CNC lathe uses a beveled overall bed for more stable force during cutting.
- The bed material is made of high-density cast iron, which has high strength and good shock absorption.
- The increased chip evacuation design ensures smooth machine cutting.
- Japan high precision ball screw ensure positioning accuracy more stable and enables users to obtain higher machining precision, faster moving speed and production efficiency.
- GSK, Siemens, Fanuc controller as optional.
Machine Details
Hydraulic 3 jaw chuck
Power turret

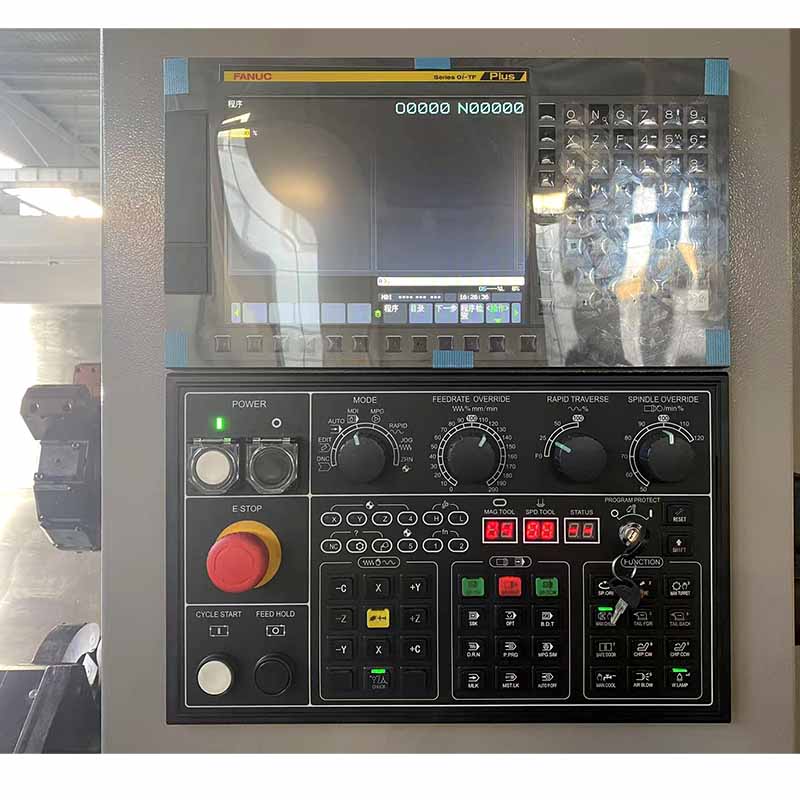

CNC controller
Electrical cabinet
