Description

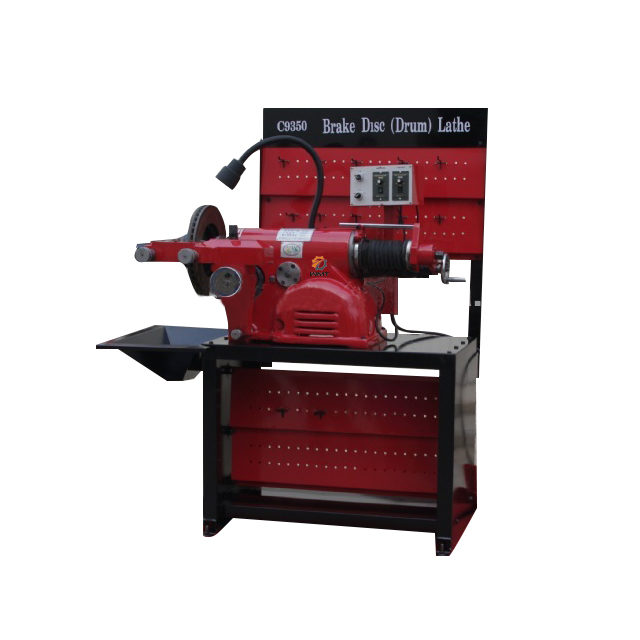

The machine C9350 is mainly used for boring and repairing the brake drum and plate for a pick-up truck, car, and mini car. Use bearing outer ring of brake drum as the locating datum, use dabber and taper sleeve can easily make clamping, boring, and repairing the brake drum come true.
Specification
| Specification | C9350 |
|---|---|
| Range of processing | Brake Drum: Φ152-Φ500mm |
| Brake Plate: Φ180-Φ330mm | |
| Max depth of processing brake drum | 175mm |
| Rotor thickness | 1-7/8” (48mm) |
| Spindle Speed | 70, 80, 115r/min |
| Spindle feed speed | 0.002″-0.02″ (0.05-0.5mm)Rev |
| Cross feed speed | 0.002″-0.02″ (0.05-0.5mm)Rev |
| Max processing depth | 0.5mm |
| Machine Power | 0.75kw |
| Motor | 110V/220V/380V, 50/60HZ |
| NW/GW | 300/350KG |
| Overall Dimension (L×W×H) | 970×920×1140mm |
| Packing Dimension (L×W×H) | 1220×890×1450mm |
Main Features
- The machine uses a horizontal structure, low center of gravity, and easy clamping.
- The machine is good in rigidity, quick in cutter speed, and highly efficient.
- The machine has variable speed control without steps, easy to operate, easy to repair, and safe.
