Description

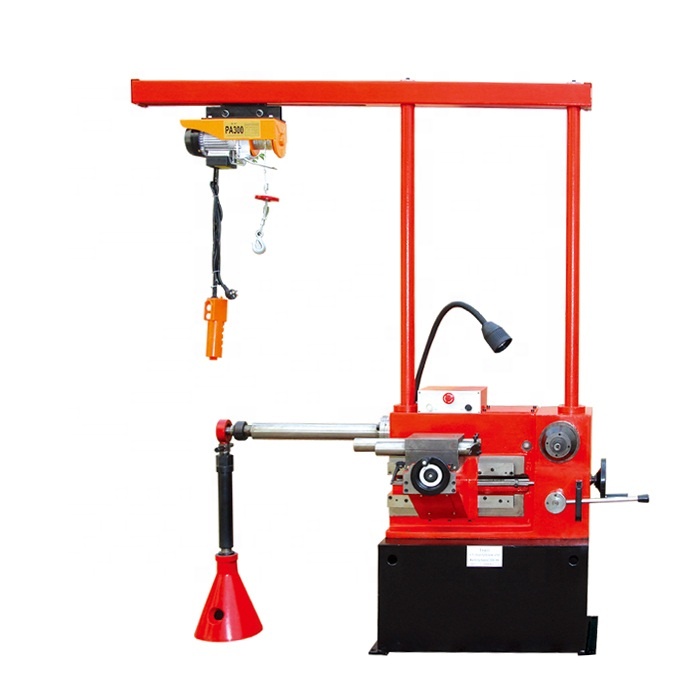

This equipment T8465 is a kind of lathe. It can fulfill the reparation of the brake drum, disc, and shoe of automobiles from mini-car to heavy trucks.
Specification
| Specifications | T8465 |
|---|---|
| Processing Diameter for Brake Drum | 180-650mm |
| Processing Diameter for Brake Disc | 102-520mm |
| Rotating Speed of Work-piece | 30/52/85r/min |
| Max. Travel of Tool | 265mm |
| Feeding Rate | 0.16mm/r |
| Packing Dimensions (L/W/H) | 1250/980/1110mm |
| G.W | 490kgs |
| Motor Power | 1.5kw |
Main Features
- The unusual feature of this equipment is its twin spindle perpendicular structure.
- The brake drum/shoe can be cut on the first spindle and the brake disc can be cut on the second spindle.
- This equipment has higher rigidity, accurate workpiece positioning, and is easy to operate.
Machine Details
