Description
Auto Brake Drum Disc Cutting Machine T8445FCV can fulfill the reparation of the brake drum disc and shoe of auto-mobiles from mini-car to medium-heavy trucks.
Specification
| Specification | T8445FCV |
| Disc dia. Capacity | 400mm |
| Spindle speed (3 steps) | 30, 50, 85 r/min |
| Toolpost travel | 170mm |
| Feed rate | 0-0.5mm/min |
| Motor | 1.1KW / 1400 rpm |
| Overall Dimension (L×W×H) | 820 × 1080 × 1180mm |
| Packing Dimension (L×W×H) | 1080 × 820 × 1280mm |
| N.W / G.W kg | 320 / 350 kg |
Main Features
- Its twin spindle each other perpendicular structure;
- The brake drum/shoe can be cut on the first spindle and the brake disc can be cut on the second spindle;
- Higher rigidity, accurate workpiece, positioning and is easy to operate.

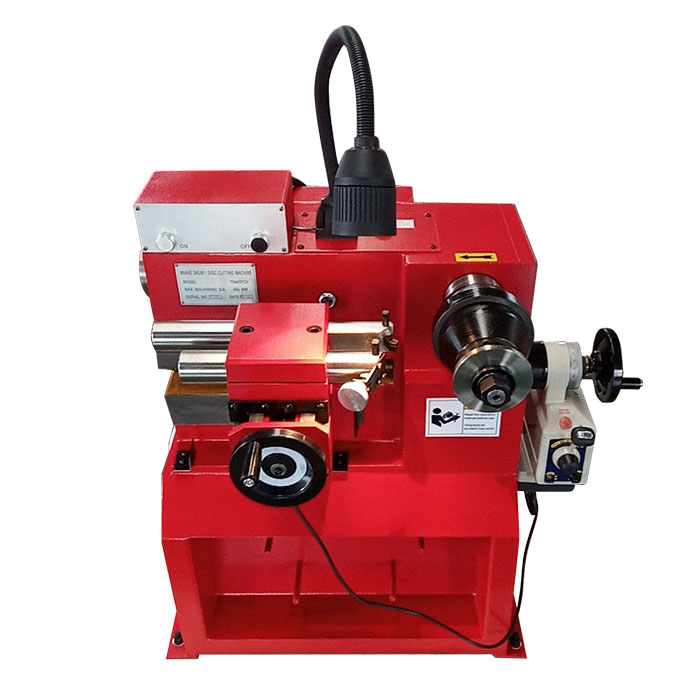

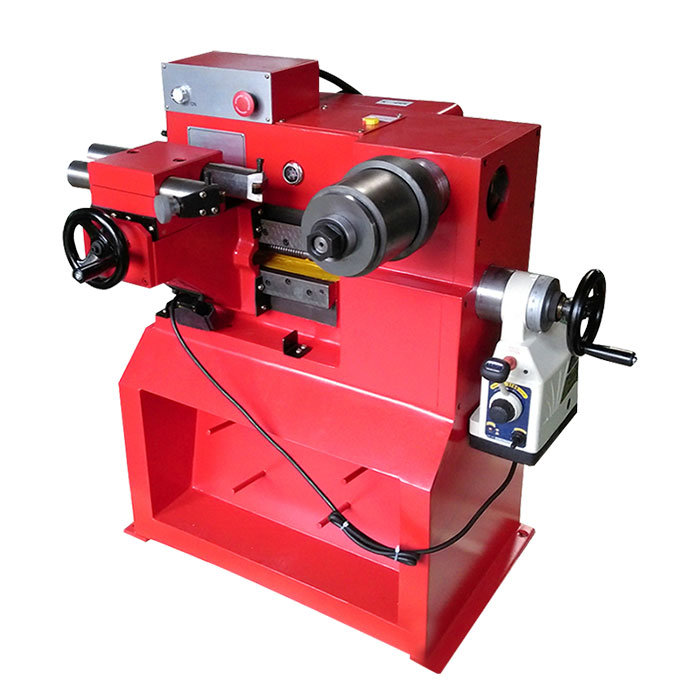

Machine Details
