Description

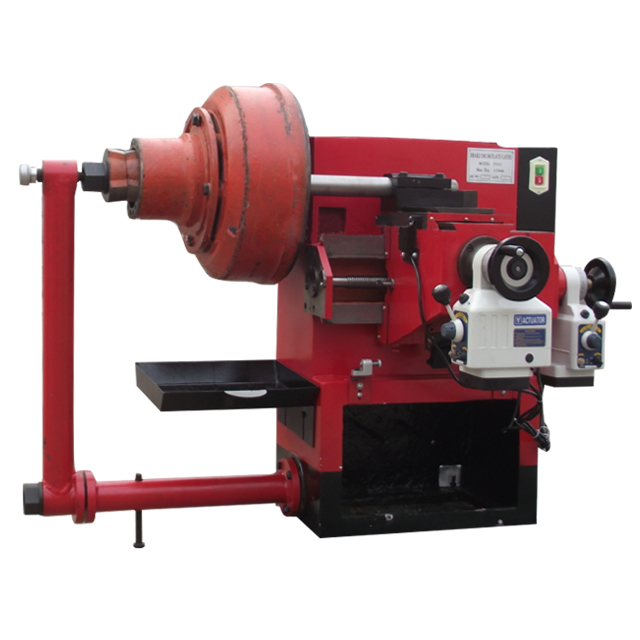

The machine C9365 is mainly used for boring and repairing the brake drum and plate for a pick-up truck, car, and mini car. Use bearing outer ring of brake drum as the locating datum, use dabber and taper sleeve can easily make clamping, boring, and repairing the brake drum come true.
Specification
| Specification | C9365 |
|---|---|
| Processing Diameter | Brake Drum: 350-600mm |
| Brake Disc: 180-480mm | |
| Rotating Speed of Work-piece | 30/49/88r/min |
| Max. travel of tool | 256mm |
| Overall Dimensions (L x W x H) | 1165 x 956 x 915mm |
| Packing Dimensions (L x W x H) | 1300 x 1100 x 1200mm |
| N.W/G.W | 680/800kgs |
| Motor Power | 1.1kw |
Main Features
- The machine uses a horizontal structure, low center of gravity, and easy clamping.
- The machine is good in rigidity, quick in cutter speed, and highly efficient.
- The machine has variable speed control without steps, easy to operate, easy to repair, and safe.
Machine Details
