Description
The disc drum brake lathe machine C9335 is widely applied for the car repair shop or 4S shop. The brake drum lathe is the best machine tool to repair brake disk and brake drum of cars, buses, and trucks, its maximum processing diameter is 350mm. It has the characteristics of high efficiency, easy operation, and energy saving. The brake disc lathe can be used to repair the wheel of BMW, BENZ, etc.
Specification
| Specification | C9335 |
|---|---|
| Processing diameter | Brake Drum: Φ180-Φ350mm |
| Brake Plate: Φ180-Φ400mm | |
| Slide travel | 100mm |
| Rotational speed of spindle | 60, 90r/min |
| Feed | 0.15mm/r |
| Motor Power | 0.75kw |
| Overall dimensions (L×W×H) | 695×565×635mm |
| Packing dimension (L×W×H) | 750×710×750mm |
| N.W/G.W | 200/260kgs |
Main Features
- Can repair brake disc and plate of most cars;
- Easy to operate;
- Mechanical power feed;

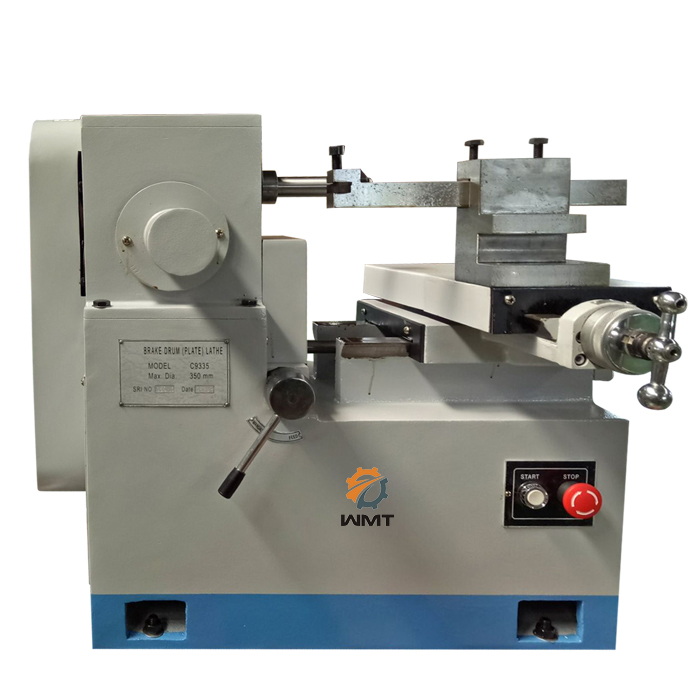

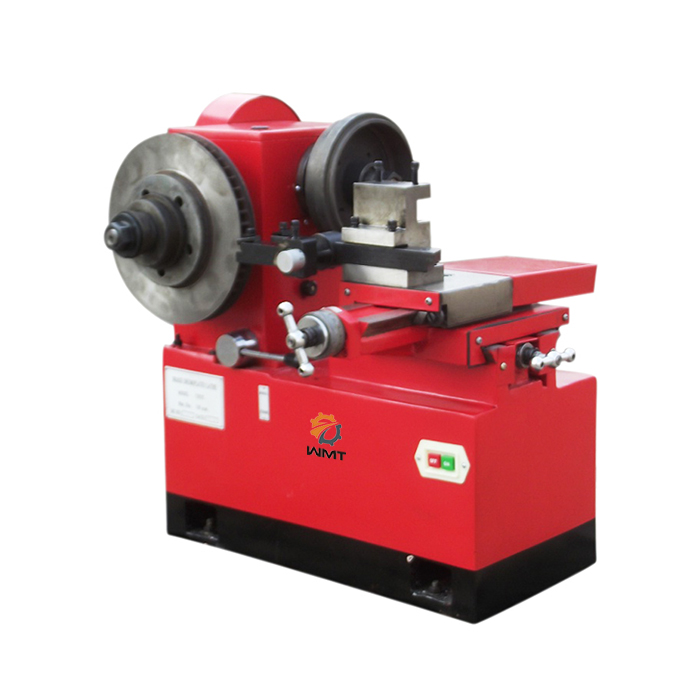

Machine Details
