Description

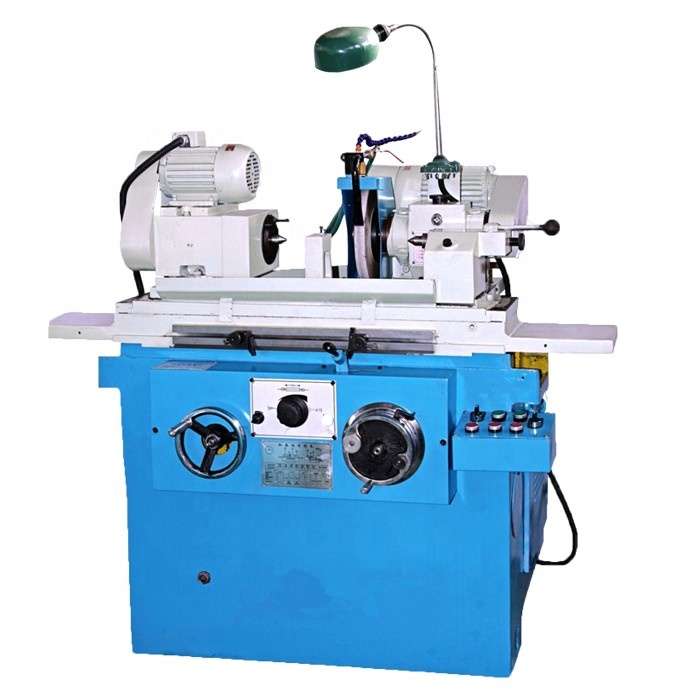

M1408 Universal cylindrical grinder is simple, fast processing speed, high precision, and low price; and there are two ways of transmission: hydraulic or manual; for precision machining of small pieces of the machinery industry.
Specification
| Specification | Unit | M1408×300 |
|---|---|---|
| Grinding dia.(O.D/I.D) | mm | Φ2~Φ80 / Φ10~Φ60 |
| Grinding length.(O.D/I.D) | mm | 300 / 125 |
| Center height | mm | 115 |
| Worktable speed | m/min | 0.1~4 |
| Max. travel of table | mm | 340 |
| Max. workpiece weight | kg | 10 |
| Swivel range of worktable | ° | -3~+7° |
| Wheel peripheral velocity | m/sec | 35 |
| External wheel size | mm | MaxΦ250×25×Φ75 / MinΦ180×Φ75 |
| Internal wheel spindle rotating speed | r/min | 16000 |
| Workhead and tailstock center | morse | NO.3 |
| Machine motor power | kw | 2.34 |
| Overall dimensions (L×W×H) | mm | 1360×1240×1000 |
| Machine weight | kg | 1500 |
Main Features
- The longitudinal movement of the worktable is driven by hydraulic or by hand wheel.
- The worktable can rotate to a certain degree so as to be suitable for grinding taper.
- The wheel head cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed. It can also do rough and fine feed through hand wheel.
