Description

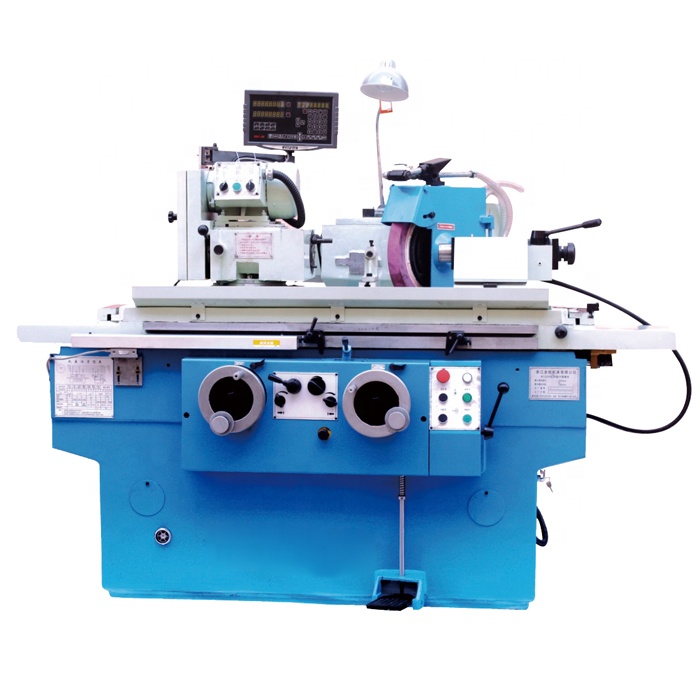

M1320HA transverse cylindrical grinding machine is an improved version of the M1320H cylindrical grinder. It features simple operation, high surface precision, and excellent performance-cost ratio. It is particularly suitable for gear manufacturing and other precision component industries.
Specification
| Description | Unit | M1320H-A×500 |
| External grinding diameters | mm | Φ8 ~ 200 |
| Center height | mm | 135 |
| Max. travel of table | mm | 850 |
| Hydraulic traverse speeds | m/min | 0.1 ~ 4 |
| Max. workpiece weight | kg | 50 |
| Grinding length (External) | mm | 500 |
| Swivel range of worktable | ° | -3 ~ +7 |
| Max. peripheral speed of grinding wheel | m/s | 38 |
| External wheel size | mm | Max Φ400×50×Φ203 / Min Φ280×50×Φ203 |
| Workhead and tailstock center | Morse | No.4 |
| Machine motor power | kW | 5.625 |
| Overall dimensions (L×W×H) | mm | 3000 × 1600 × 1500 |
| Machine weight | kg | 3000 |
Main Features
- The longitudinal movement of the worktable is driven either hydraulically or manually by handwheel.
- The worktable can be swiveled to allow grinding of tapered parts.
- The wheelhead features hydraulic cross feed, with automatic periodic and rapid feed. Manual rough and fine feed via handwheel is also supported.
