Description

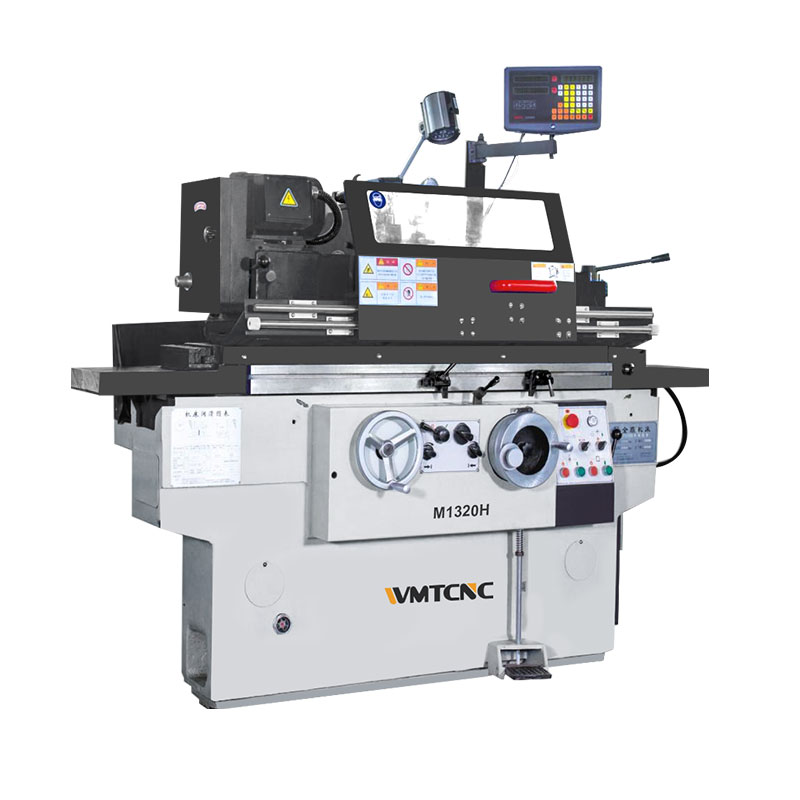

M1320H small cylindrical grinding machine is drawn Cylindrical Grinding Machine, based on the advantages of the major grinder professional manufacturing units, to improve new product with high performance and price ratio. This machine is used for grinding a variety of small parts cylinder, technical inside and outside the circle and the end surface.
Specification
| Specification | M1320H×500 | M1320H×800 |
|---|---|---|
| Grinding diameters with steady-rest (O.D.) | 8/60 mm | 8/60 mm |
| Grinding diameters without steady-rest (O.D.) | 8/200 mm | 8/200 mm |
| Max. workpiece weight | 50 kg | 50 kg |
| Grinding length External | 500 mm | 800 mm |
| Center height | 135 mm | 135 mm |
| Distance between centers | 500 mm | 800 mm |
| External wheel size | Max Φ400×50×Φ203 mm; Min Φ280×50×203 mm | |
| Peripheral speed of grinding wheel | 38 m/s | 38 m/s |
| Wheelhead spindle speed | 1670 r/min | 1670 r/min |
| Wheelhead rapid advance & withdrawal | 25 mm | 25 mm |
| Headstock and tailstock center | MT4 | MT4 |
| Worktable speed | 0.1~4 m/min | 0.1~4 m/min |
| Max. travel of table | 600 mm | 900 mm |
| Swivel range of worktable | -5~+7° | -3~+6° |
| Machine motor power | 5.625 kw | 5.625 kw |
| Machine weight | 2500 kg | 3000 kg |
| Overall dimensions (L×W×H) | 2500×1600×1000 mm | 3000×1600×1000 mm |
Main Features
- The machine has the characteristics of high cutting precision, strong rigidity and high efficiency. Suitable for grinding cylindrical and conical workpieces.
- The workpiece, cylindrical grinding wheel, oil pump and cooling pump are driven by independent motors.
- Machine moving parts feature electrical and hydraulic integration, ensuring safe and reliable operation.
