Description

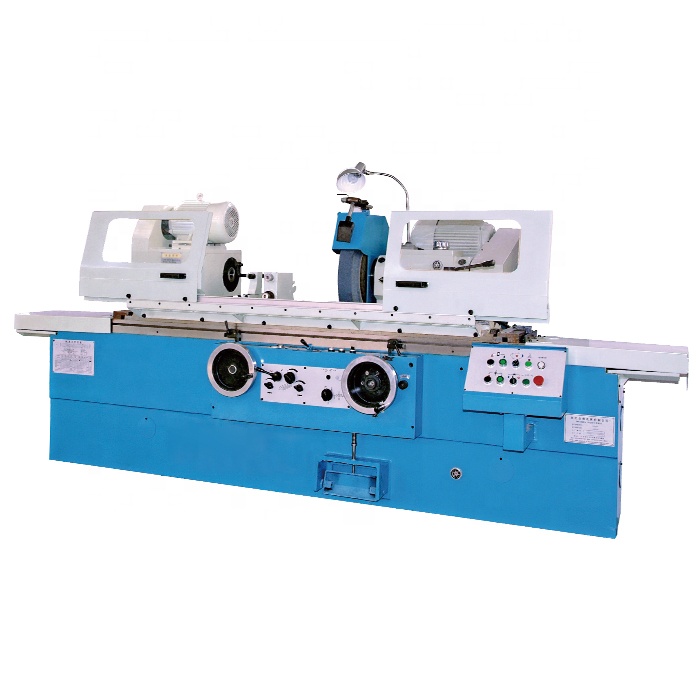

M1332B cylindrical grinding machine is designed on the basis of the M1332A cylindrical grinding machine. It is suitable for grinding cylindrical or conical parts, with an accuracy of IT6–IT5.
Specification
| Description | Unit | M1332B×1000 |
| Grinding length | mm | 1000 |
| Grinding diameter | mm | Φ8~Φ320 |
| Center height | mm | 180 |
| Max. workpiece weight | kg | 150 |
| Worktable speed | m/min | 0.1~4 |
| Max. peripheral speed of grinding wheel | m/s | 35 |
| Max. travel of table | mm | 1100 |
| Swivel range of worktable | ° | -3~+7 |
| External wheel size | mm | Φ600×75×Φ305 |
| Workhead spindle speeds | r/min | 26, 52, 90, 130, 180, 260 |
| Grinding spindle speed | r/min | 1100 |
| Headstock taper | Morse | No.5 |
| Tailstock taper | Morse | No.4 |
| Rapid advance and withdrawal | mm | 50 |
| Wheelhead handwheel movement (rev, coarse/fine) | mm | 2 / 0.5 |
| Wheelhead handwheel movement (div, coarse/fine) | mm | 0.01 / 0.0025 |
| Machine motor power | kW | 14.27 |
| Overall dimensions (L×W×H) | mm | 3605×1810×1515 |
| Machine weight | kg | 4000 |
Main Features
- Hydraulic or hand-driven longitudinal table travel with throttle-type lubrication.
- Hydraulic wheelhead rapid movement and manual micro feed with automatic cycle.
- Independent drive for workpiece, wheel, oil and coolant pumps.
- Spindle supported by two sets of four-shoe sliding bearings, ensuring high rigidity.
- Integrated tailstock-mounted wheel dresser and hydraulic retraction device.
- Safe operation through electro-hydraulic interlocks; hydrostatic table movement.
