Description

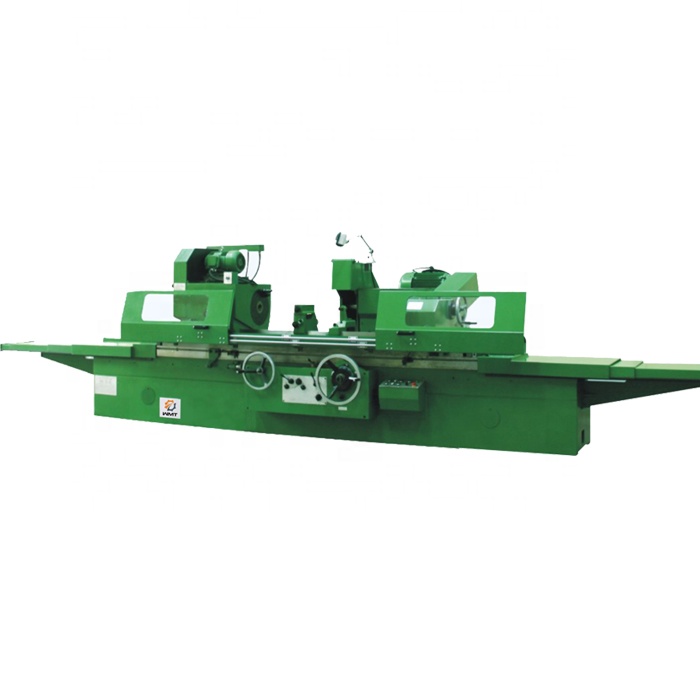

M1350B cylindrical grinding machine is designed for grinding cylindrical or taper surfaces of rotational parts. It is highly adaptable for single and small batch production.
Specification
| Specification | M1350Bx1500/2000/3000/4000 |
| Grinding length (O.D/I.D) | 1500 / 2000 / 3000 / 4000 mm |
| Grinding diameter (O.D/I.D) | Φ500 mm |
| Center height | 270 mm |
| Max. worktable traverse | 1500 / 2000 / 3000 / 4000 mm |
| Max. workpiece weight | 1000 kg |
| Worktable speed | 3 m/min |
| Max. wheel peripheral speed | 35 m/s |
| External wheel size | Φ750 × 75 × Φ305 mm |
| Wheelhead displacement (coarse/fine) | – |
| Auto intermittent infeed (coarse/fine) | 0.02 / 0.0025 mm |
| Manual microfeed (coarse/fine) | 0.02 / 0.0025 mm |
| Total motor power | 20.63 kW |
| Overall dimensions (L × W × H) | 5320 × 2140 × 1550 mm 6090 × 2140 × 1550 mm 10240 × 2140 × 1550 mm 12280 × 2140 × 1550 mm |
| Machine weight | 8400 / 9700 / 11200 / 12800 kg |
Main Features
- The table traverse is actuated by hydraulic means with infinitely variable speed, or operated by hand.
- Automatic intermittent infeed and rapid approach/withdrawal of the wheelhead are hydraulically driven; rough/fine feed is handled by handwheel. Worktable guideways are hydroelectrically lubricated.
- The grinding wheel spindle is supported by three tilting segmented shoes, ensuring stability and precision.
- Workpiece, grinding wheel, hydraulic pump, and coolant pump are driven by separate motors. All motions are interlocked electrically, hydraulically, and mechanically for safe operation.
