Description
The ZQ3040 Radial Drilling Machine delivers exceptional performance, making it ideal for handling various materials with ease. Equipped with a maximum drilling diameter of 32mm and a high-power main motor (2.2kW), it ensures efficient and stable drilling operations. With an arm lifting travel of 670mm and spindle travel of 270mm, it accommodates a wide range of workpieces. The 360° radial rotation angle allows for flexible operations, perfect for drilling and reaming complex parts. Its robust machine weight of 2000kg ensures exceptional stability, even during extended periods of heavy-duty use. With precise spindle speed ranges (75-1220r/min) and multiple adjustable settings, it provides optimal cutting performance in all conditions. Choose this drill to enhance your production efficiency and machining accuracy!
Specification of Radial Drilling Machine ZQ3040
| Technical parameters | ZQ3040×13 |
| Max Drilling Diameter(mm) | steel 32 / iron 40 |
| Column dia(mm) | 280 |
| Spindle center to column (mm) | 300-1300 |
| Spindle box travel (mm) | 1000 |
| Spindle nose to table (mm) | 250–1200 |
| Arm lifting travel (mm) | 670 |
| Spindle travel (mm) | 270 |
| Spindle taper (Morse) | 4 |
| Spindle speed range (r/min) | 75 / 130 / 240 / 380 / 660 / 1220 |
| Spindle speeds series (mm/r) | 0.10 / 0.16 / 0.25 |
| Arm lifting speed (m/min) | 1.3 |
| Radial rotation angle | 360° |
| Main motor power (kW) | 2.2 |
| Lifting motor power (kW) | 0.55 |
| Coolant motor power (kW) | 0.04 |
| Machine weight (kgs) | 2000 |
| Machine overall size (L×W×H mm) | 2000×800×2240 |
Main Features
1.Radial drilling machine
2.Transmission:Mechanical transmission
3.Max. drilling diameter:40mm
4.Spindle taper:Morse 4
5.Spindle travel:200mm

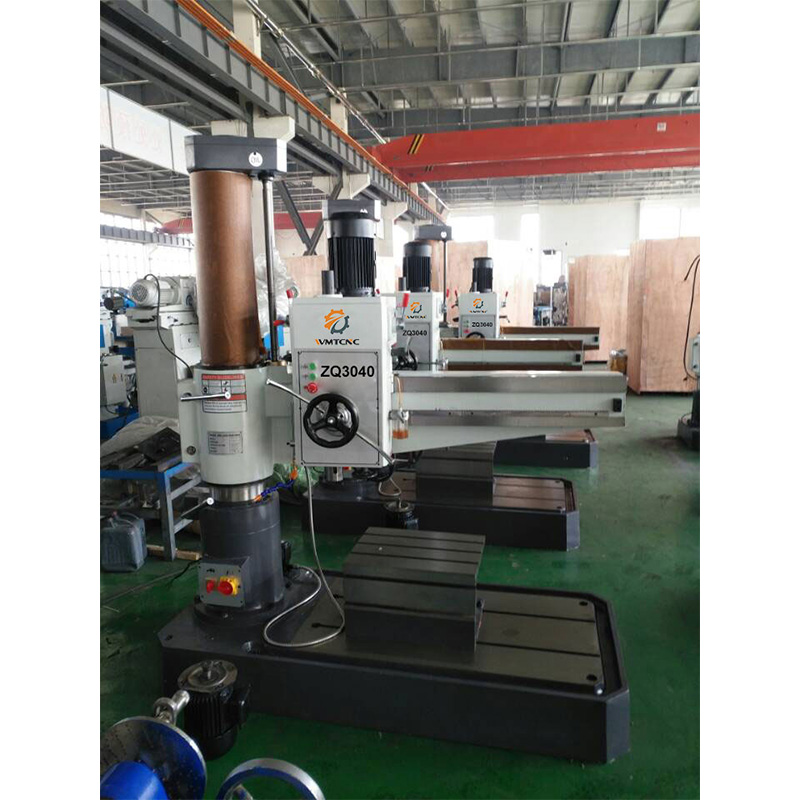

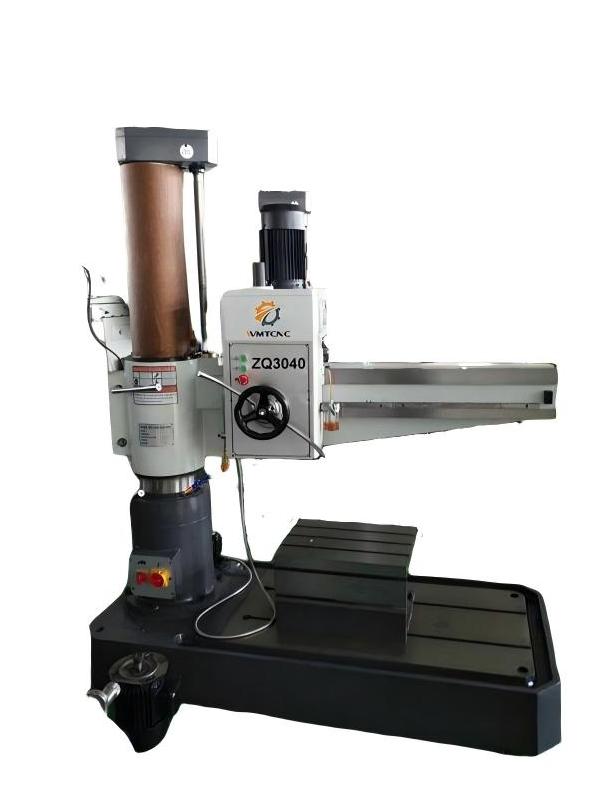

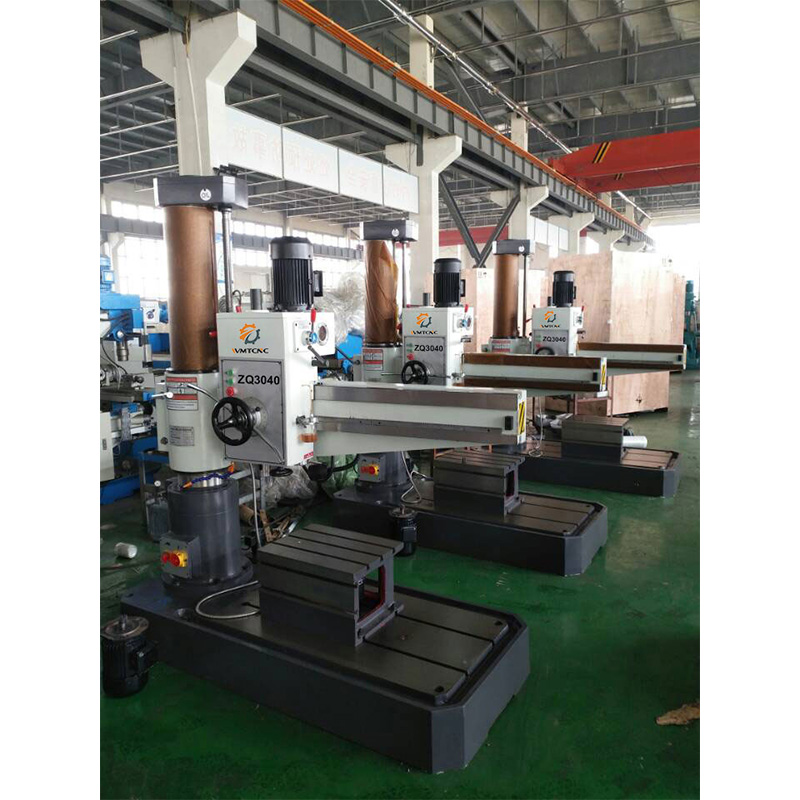

Machine Details
