Radial Drilling Machine Z3050 | High Precision & Versatile Speed

Steel Hydraulic Drilling Machine Z3050 High Precision Radial Arm Metal Hole Drilling Machine in China

Certification: ISO9001 CE
Type: Vertical
Warranty: 13 months
Voltage: As customers’ requirement
Color: As customers’ requirement
After-sale service: Available
Brand Name:WMTCNC

Description

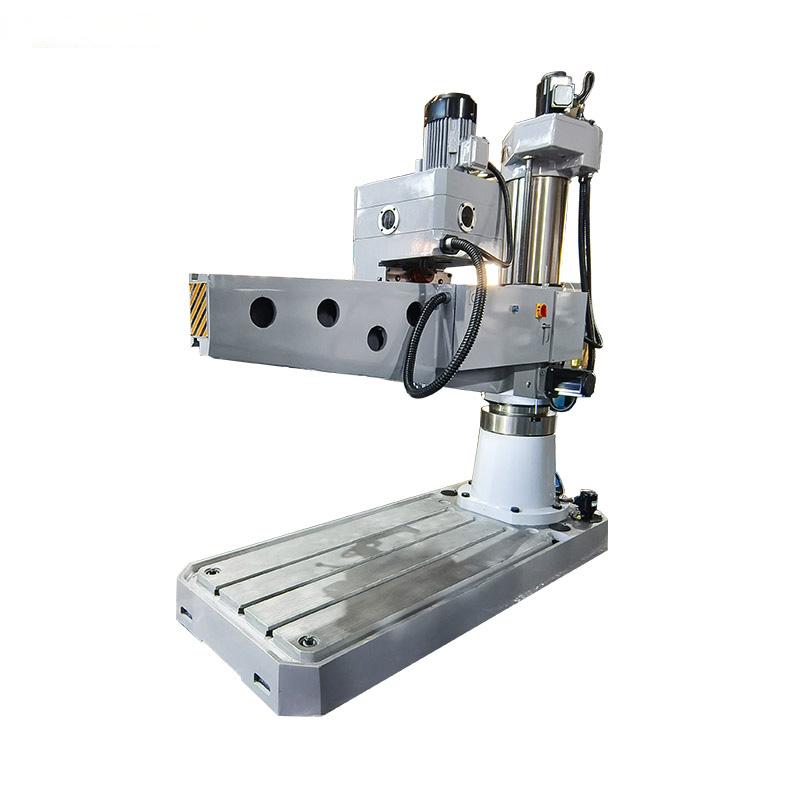

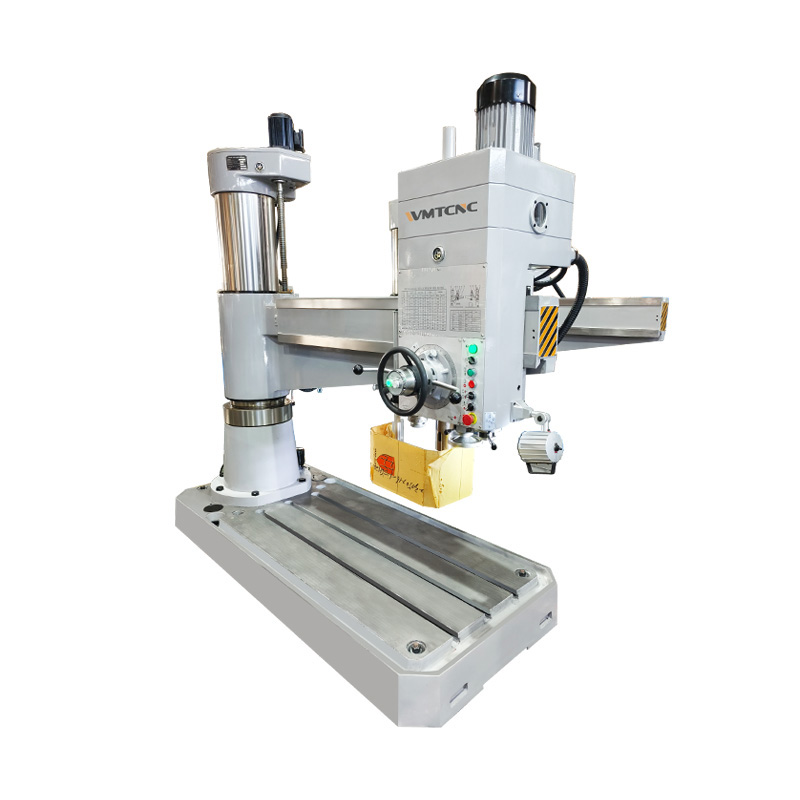

The Z3050 radial drilling machine features a versatile design with a wide range of speeds and feeds, making it ideal for various drilling operations.The operator can easily engage and disengage manual, power, and fine feeds during use. The machine delivers high precision and efficiency, as technicians manufacture its key parts using advanced KIA-imported equipment. They build the spindle components from high-quality steel and apply heat treatment to enhance strength and durability. The design integrates centralized controls to simplify operation, and the hydraulic clamping system reliably handles speed changes. By applying superior materials and precise manufacturing methods, the Z3050 maintains excellent reliability, low noise, and high precision during operation.

Specification of Radial Drilling Machine Z3050

Specification	Z3050
Max. drilling dia.	50mm
Distance between spindle axis and column	350-1600mm
Distance from spindle nose and working surface of base	320-1220mm
Diameter of column	350mm
Spindle travel	315mm
Spindle taper	MT5
Spindle speed	25-2000rpm
Number of spindle speed	16 steps
Range spindle feed	0.04-3.20mm/r
Number of spindle feed	16 steps
Distance of head horizontal movement	1250mm
Table size	630x500x500mm
Base size	2400x1000x200mm
Main motor power	4kw
Overall size	2500X1060X2650mm
Packing size	2600x1120x2550mm-With disassembly
N.W./G.W.	3400/3650kgs

1. With wide range of speed and feed, with manual、power and fine feeds. The feed of machines are very easily engaged and disengagedat any time.

2. With safe and reliable feed safety machine,all parts easy operation and change.

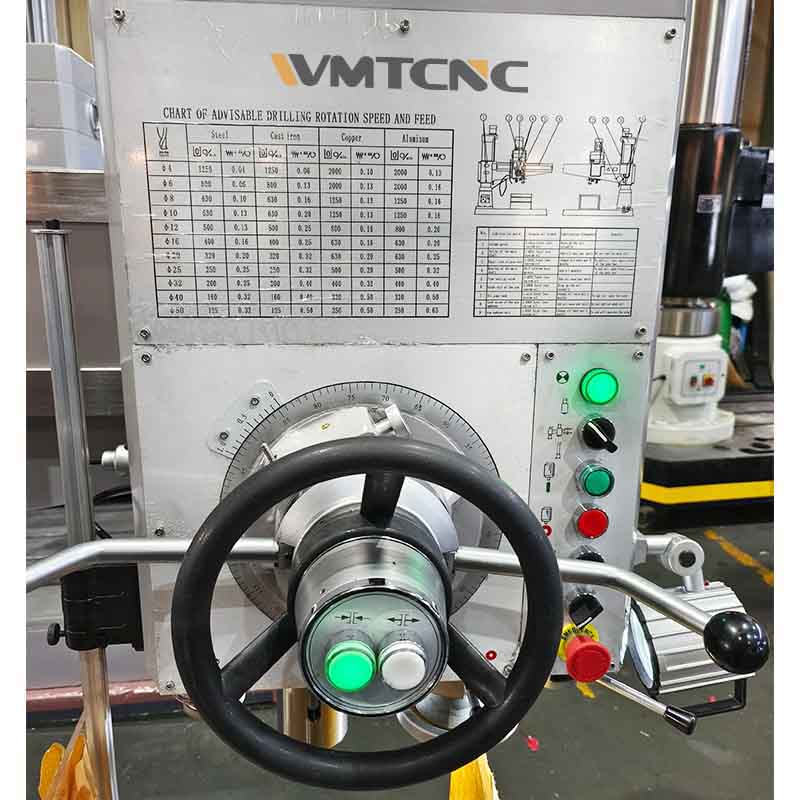

3. All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achiered by hydrandic power,cmle is sensitna owet nelile.

4. Main parts are made by machine center which import form KIA with high precision and efficiency,ensuring reliability and high quality.

5. Integrating technology for casting parts is excellent,adopting casting equipment，ensuring high quality of materia for basic parts.

6. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments,ensuring high strength and durability.Main gears are machined by gear grinding,the machine
ensuring high precision and low noise.
