Description

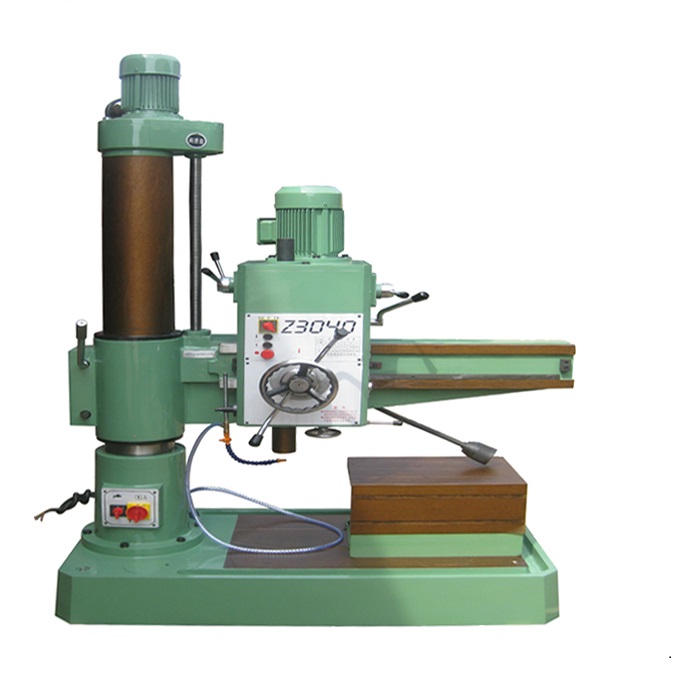

Z3040×12 radial drilling machine is with extensive use of the universal machine, suitable for in machinery manufacturing departments in the processing of small parts, drilling, reaming, reaming, countersink flat and tapping. In process equipment conditions, it can also be used for boring.
Specification
| Specification | Z3040/12 |
| Max drilling capacity | 40mm |
| Distance from spindle nose to column | 300-1200/1400mm |
| Spindle horizontal travel | 900/1100mm |
| Spindle vertical travel | 300-1240mm |
| Spindle taper | MT4 |
| Spindle travel | 210mm |
| Radial arm lifting speed | 1.26m/min |
| Radial arm lifting distance | 650mm |
| Drilling depth per circle | 140mm |
| Spindle speed | 80-1200r/min |
| Spindle speed series | 6 |
| Range of spindle feed | 0.10-0.30mm/r |
| Spindle feed series | 3 |
| Main motor power | 1.5kw |
| Lifting motor power | 0.75kw |
| Hydraulic clamping motor power | 0.55kw |
| Coolant pump power | 40w |
| Table size | 550x350x350mm |
| Net weight | 1500kgs/1700kgs |
| Overall size | 1700/1900x800x2200mm |
Features:
Radial drilling machine
Transmission: Mechanical transmission
Max. drilling diameter: 40mm
Spindle taper: Morse 4
Spindle travel: 200mm
Features
Radial drilling machine is provided with hydraulic presetting speed shift mechanism to save auxiliary time.
It only needs one handle to operate clockwise rotation, stop (brake), variable speed and neutral gear conveniently.
Spindle box, rocker arm, inner and outer posts are reliably clamped by hydraulic diamond clamping mechanism.
Perfect safety protector and outer post protection are available. In design and production of structure, it further adopts a series of effective measures to prolong precision durability and lifespan of whole machine.
Its electrical equipment completely contributes to personal safety, reliability, long service life and convenient maintenance.
Machine details
