Description

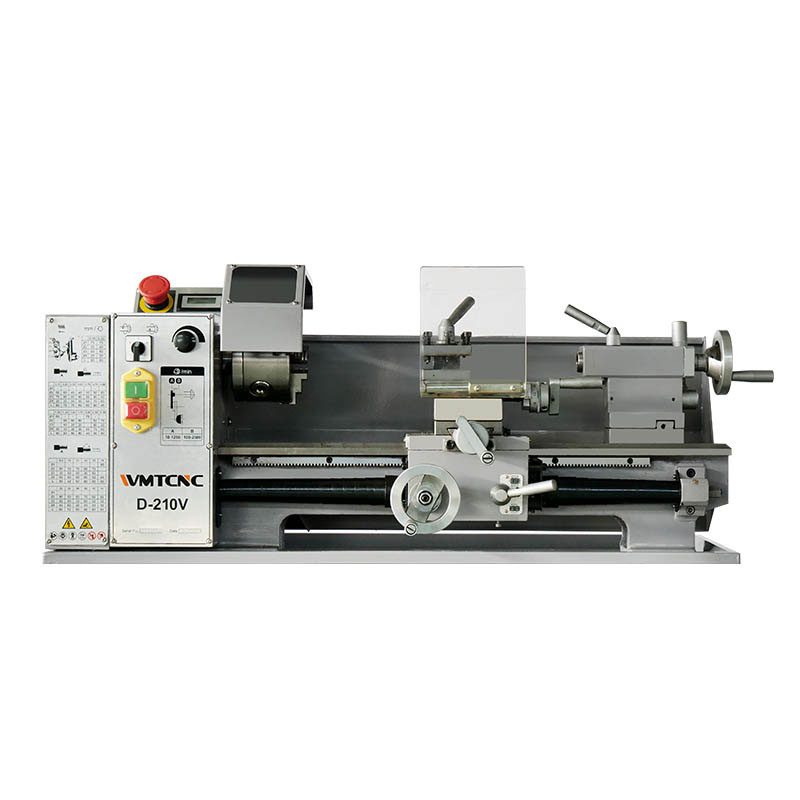

Mini metal lathe is a machine that rotates a workpiece about an axis of rotation to perform various operations such as cutting, sanding, knurling, drilling, deformation, facing, and turning. WMTCNC mini metal lathe D210V will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
Specification
| Specification | D210V |
|---|---|
| Swing over bed | Φ210mm |
| Swing over cross slide | Φ135mm |
| Admits between centers | 400mm |
| Center height | 105mm |
| Width of bed | 100mm |
| Spindle bore | Φ21mm |
| Taper of spindle bore | MT3 |
| Range of spindle speed | 50-2500rpm |
| Compound rest travel | 75mm |
| Cross slide travel | 100mm |
| Lead screw thread | Tr16X2-L |
| Max. Section of tool (W×H) | 10×10mm |
| Threads metric pitches | 0.25-3mm |
| Threads imperial pitches | 8-44TPI |
| Quill diameter | Φ25mm |
| Quill travel | 50mm |
| Quill taper | MT2 |
| Main motor power | 600W / 230V 50HZ |
| Dimensions (L×W×H) | 890×390×310mm |
| Net weight / Gross weight | 58 / 75kgs |
| Shipping dimensions (L×W×H) | 910×500×510mm |
Main Features
- Precision ground and hardened bed ways.
- The spindle is supported with precision roller bearings.
- Headstock gears are made of high quality steel, ground and hardened.
- Easy operating speed change levers.
- Spindle speed range 50-2500rpm.
- Easy operating gear box has various feeds and thread cutting function.

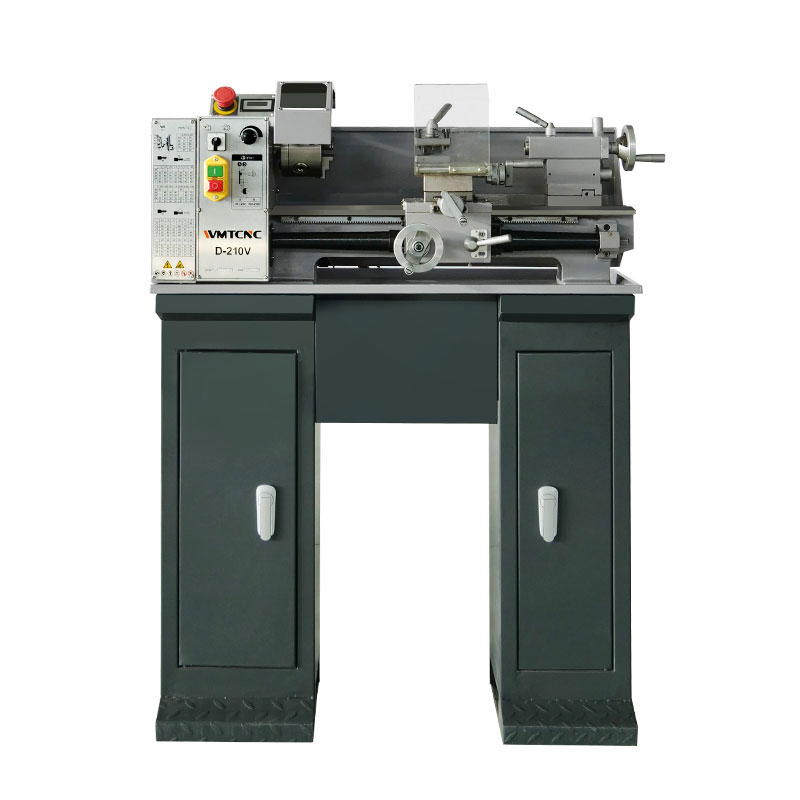

- With or without cabinet according to requirement.
Machine details
3 Jaw Chuck

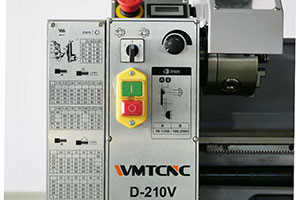

Spindle Box
Gear Box
4 Position Toolpost
