Description
Lathe is a machine that rotates a workpiece about an axis of rotation to perform various operations such as cutting, sanding, knurling, drilling, deformation, facing, and turning. WMTCNC BRAND bench lathe D250V will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
Specification
| Specification | D250V |
|---|---|
| Swing over bed | Φ250mm |
| Swing over cross slide | Φ140mm |
| Admits between centers | 500mm |
| Center height | 125mm |
| Width of bed | 135mm |
| Spindle bore | Φ26mm |
| Taper of spindle bore | MT4 |
| Range of spindle speed | 50-2500rpm |
| Compound rest travel | 75mm |
| Cross slide travel | 100mm |
| Lead screw thread | Tr20X3-L |
| Max. Section of tool (W×H) | 12X12mm |
| Threads metric pitches | 0.2-3.5mm |
| Threads imperial pitches | 8-56TPI |
| Quill diameter | Φ30mm |
| Quill travel | 60mm |
| Quill taper | MT2 |
| Main motor power | 1.1KW |
| Dimensions (L×W×H) | 1100×500×500mm |
| Net weight / Gross weight | 137 / 150kgs |
| Shipping dimensions (L×W×H) | 1200×560×580mm |
Main Features
- 26mm spindle bore.
- With variable speed.
- Widely useful, operation very easy, processing scope widespread.
- Best choice for hobby users.
Machine details

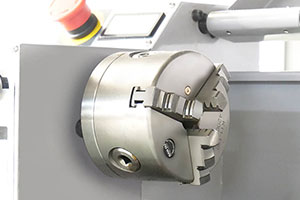

3 Jaw Chuck
Spindle Box

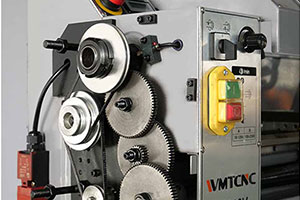

Gear Box

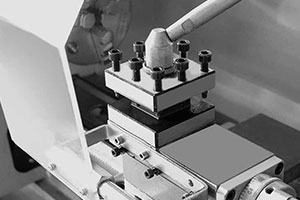

4 Position Toolpost
