Description

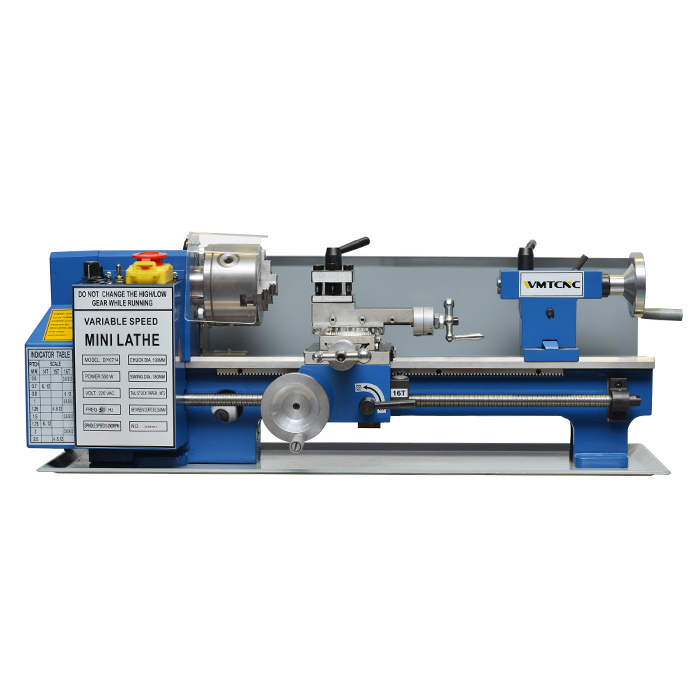

Lathe is a machine that rotates a workpiece about an axis of rotation to perform various operations such as cutting, sanding, knurling, drilling, deformation, facing, and turning. WMT BRAND mini lathe DIY0714 is suitable for hobby and educational.
Specification
| Specification | QK1322 | |
|---|---|---|
| Capacity | ||
| Chuck size | 3 jaw chuck (500) | |
| Max. swing dia over bed | 670mm | |
| Max. swing dia over slide | 370mm | |
| Max. length of workpiece | 1500mm | |
| Width of bed | 550mm | |
| Spindle | ||
| Spindle bore | 225mm | |
| Spindle speed range | (L): 25-120 r/min | |
| (H): 100-500 r/min | ||
| Power of spindle motor | 11kw | |
| Mode of spindle speed | Variable speed in 2 steps | |
| Axis | ||
| Max. traverse of X/Z axis | X: 350mm | |
| Z: 1250mm | ||
| X/Z rapid traverse | 4000/6000 mm/min | |
| X-axis motor | Speed | 1500 r/min |
| Torque | 10 N.m | |
| Power | 1.5kw | |
| Z-axis motor | Speed | 1500 r/min |
| Torque | 15 N.m | |
| Power | 2.4kw | |
| Electric tool-post | Model | HAK-21240 |
| No. of tool stations | 4 position | |
| Dimension | 240×240mm | |
| Tool change time | 2.6s | |
| Tailstock | ||
| Tailstock quill | Diameter | 100mm |
| Travel | 250mm | |
| Taper | MT5 | |
| Positioning accuracy | 0.02mm | |
| Repositioning accuracy | 0.01mm | |
| Machine Dimensions | ||
| Overall dimensions (LxWxH) | 3800×1900×1900mm | |
| Machine weight | 5.5t | |
Main Features
- 20mm spindle bore.
- With variable speed.
- Best choice for hobby users.
Machine details

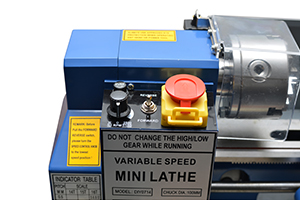

Variable speed button

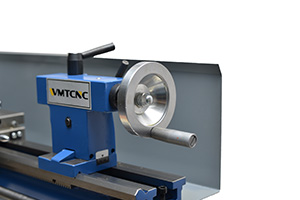

Tailstock

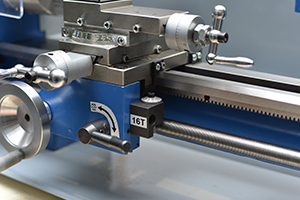

Leadscrew

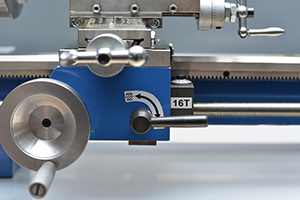

Handwheel
