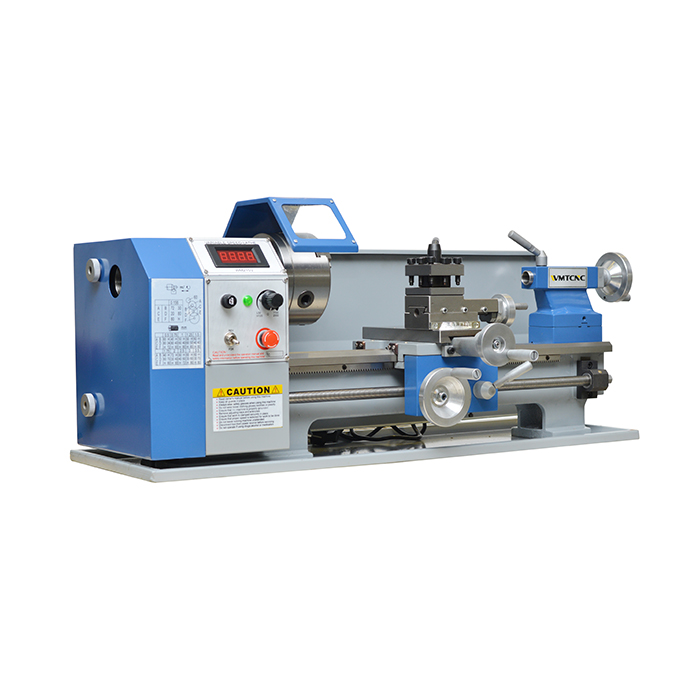

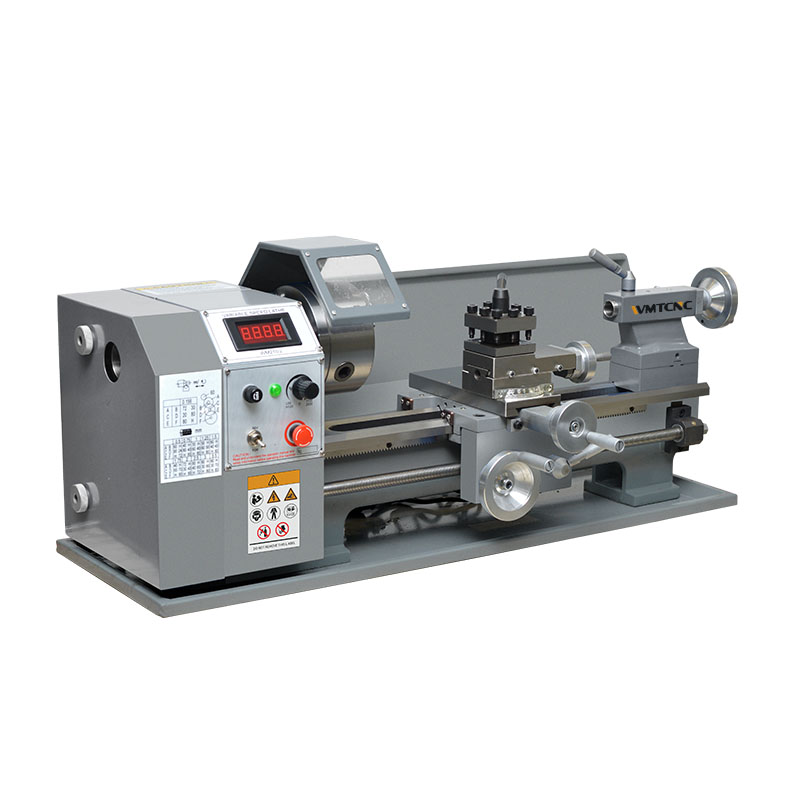

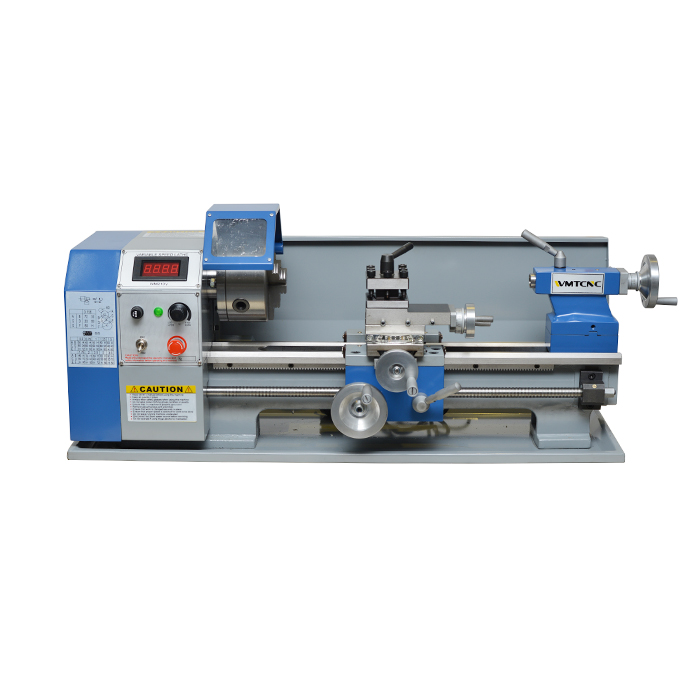

DIY0816 Mini Metal Bench Lathe Machine | Small DIY Lathe
bench lathe
bench lathe

DIY0816 Mini Metal Bench Lathe Machine | Small DIY Lathe

  • Certification: ISO9001 CE
  • Type: Horizontal
  • Warranty:  13 months
  • Voltage: As customers’ requirement
  • Color: As customers’ requirement
  • After-sale service: Available
  • Brand Name:WMTCNC

    Leave us your contact
    We will reply you within 2 hours.






    Category:

    Description

    Lathe is a machine that rotates a workpiece about an axis of rotation to perform various operations such as cutting, sanding, knurling, drilling, deformation, facing, and turning. DIY0816 is suitable for DIY hobby users and educational.

    Specification

    SpecificationDIY0816
    Distance between centers400mm
    Swing over bed210mm
    Toolpost travel55mm
    Spindle taperMT5
    Spindle bore38mm
    Chuck diameter125mm
    Bed width100mm
    Range of metric threads0.5-3mm
    Travel of cross slide75mm
    Max. travel of tailstock quill60mm
    Taper of tailstock quillMT2
    Main Motor600W
    Range of spindle speeds0-2500rpm
    Packing size800×450×450mm
    Net/gross weight85/95kgs

    Main Features

    • 38mm spindle bore.
    • With variable speed.
    • Widely useful, operation very easy, processing scope widespread.
    • Best choice for hobby users.



    Machine details

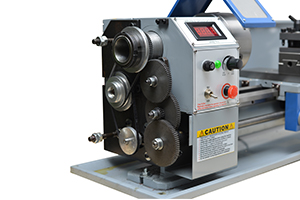

    Gear box

    Gear box

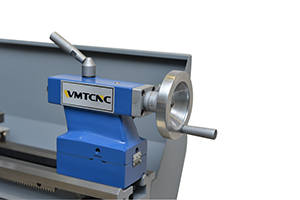

    Tailstock

    Tailstock

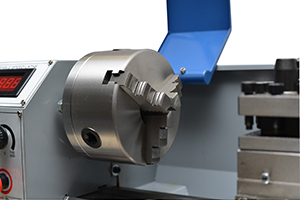

    3 jaw chuck

    3 jaw chuck

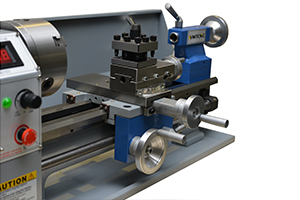

    4 position toolpost

    4 position toolpost
