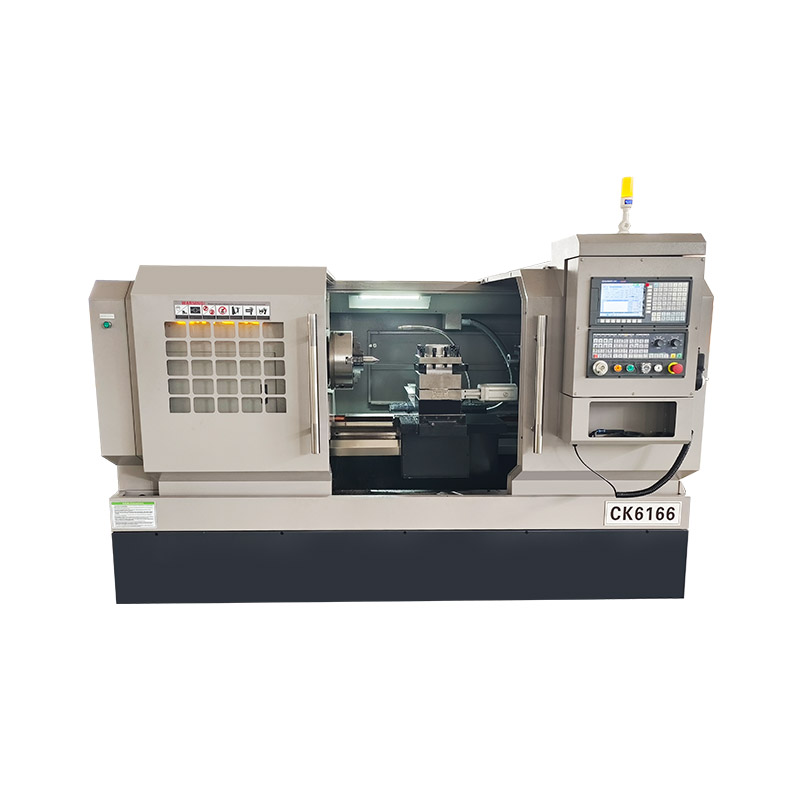

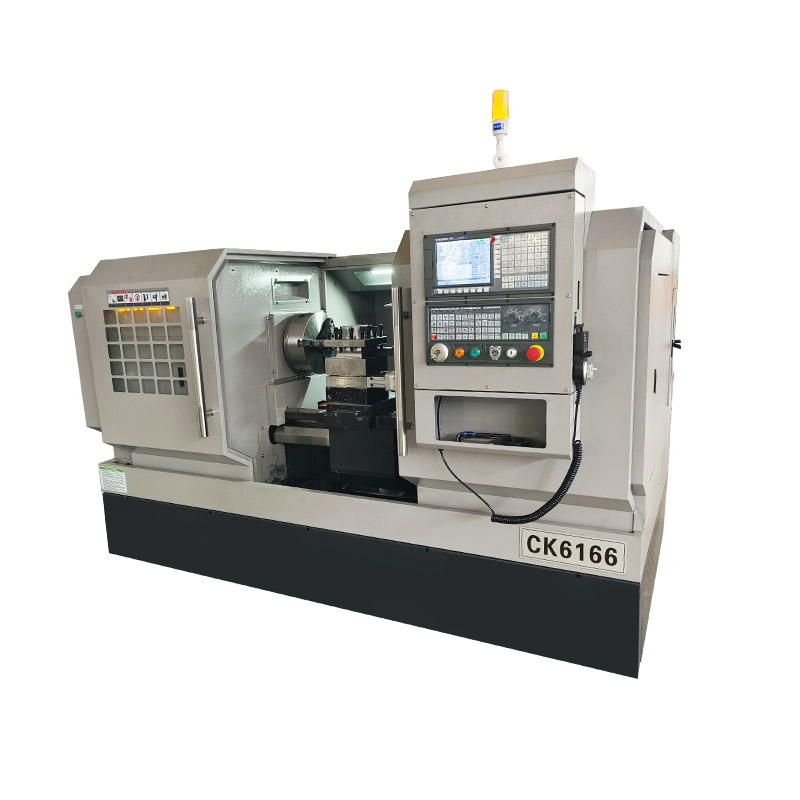

High precision flat bed CNC lathe with hard rail

Description

Mainly used for turning inner and outer cylindrical surface, end surface, taper surface, arc surface and thead of shaft, etc., with high efficiency and accurate processing. WMTCNC flat bed cnc lathe CK6166 will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.

High-Quality CNC Lathe Machines

If you’re looking for CNC lathe machines, we offer a variety of options. Our collection includes horizontal CNC lathe machines, flat bed CNC lathe machines, and CNC turning machines. These machines are designed to meet the needs of different industries, ensuring precision and efficiency.

Affordable CNC Lathes for Every Budget

We provide cheap CNC lathes and low-cost CNC lathe machines, without compromising on quality. For those on a budget, our affordable CNC turning centers are an excellent option. We also offer educational CNC lathe machines for training purposes.

Precision CNC Machines

For high-precision work, our CNC metal lathe machines, CNC engine lathes, and horizontal CNC lathes are ideal. We also offer the H-turn series CNC machines, designed for maximum accuracy and durability. Our large flatbed lathes and long bed CNC lathes are perfect for heavy-duty tasks.

CNC Lathe Machine Suppliers and Manufacturers

Whether you’re looking for CNC lathe machine suppliers Guangdong or a CNC lathe machine manufacturer, we have you covered. We WMTCNC offer both horizontal CNC lathe machines and CNC flatbed lathes. Our machines are available in different configurations to suit your needs.

Versatile CNC Lathe Machines

We offer digital lathe machines and CNC turning lathe machines for all types of projects. Whether you’re in need of a CNC turning center machine or a CNC flatbed lathe, our products will meet your expectations. We also specialize in CNC machining lathes and CNC flatbed lathes.

Quality and Affordability

Our CNC lathe machines come with competitive CNC lathe prices and a variety of configurations, such as line rail flat bed CNC lathes. These machines are perfect for heavy-duty work and ensure superior precision. Whether you’re looking for CNC lathe machine distributors or CNC lathe machine suppliers, we offer the best deals on the market.

Horizontal CNC Lathe Specification

Specification	CK6166
Capacity

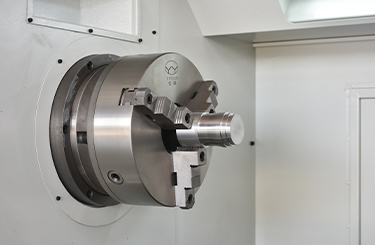

Chuck size	12”
Max. swing dia. over bed	660mm
Max. swing dia. over slide	420mm
Distance between center	1000/1500/2000/3000mm
Width of bed	400mm
Spindle
Spindle speed range	45-180/180-750/600-1600rpm
Spindle bore	Ф80mm,*Ф105mm
Max. dia. of through-hole	Ф60mm,*Ф77mm
Spindle nose	A2-8(*105mm for C-11)
Spindle taper	Φ90mm 1:20,*105mm for 120mm 1:20
Axis
X axis travel	360mm
Z axis travel	1000/1500/2000/3000mm
X/Z axis rapid traverse	4/6m/min

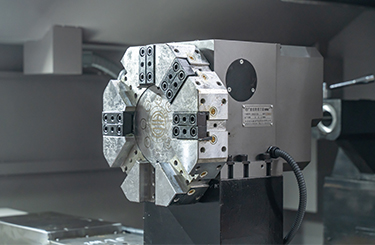

Turret
Type	Electrical type

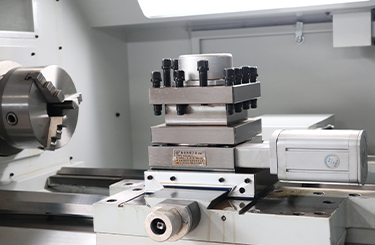

No. of tool stations	4,6,8 position
Max. section of tool	25x25mm
Tailstock
External diameter	Φ75mm
Travel of tailstock quill	150mm
Taper of tailstock quill	MT5
Motor
Spindle motor power	11kw
Coolant pump power	90w
Machine Dimensions
Overal dimension (L×W×H)	2750/3250/3700/4600x1800X2000mm
Packing size(L×W×H)	2900/3400/3800/4700x2000x2250mm
N.w	2700/2900/3300/3800kg
G.w	2900/3200/3600/4300kg

Main Features

Full enclosure complete, safe and easy operation.
High rigidity casting bed.
High precision spindle bearing.

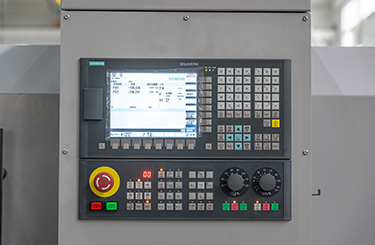

GSK, FANUC ,Siemens system as optional selection.
Flat bed cnc lathe bed guideways industively hardened.

What is Bed in Lathe Machine?

The bed is a large horizontal structure or beam that’s used to support other parts of a lathe like the headstock and tailstock. With the exception of woodworking lathes, nearly all lathes have a bed. It’s the long platform on which these parts are mounted.
