Description

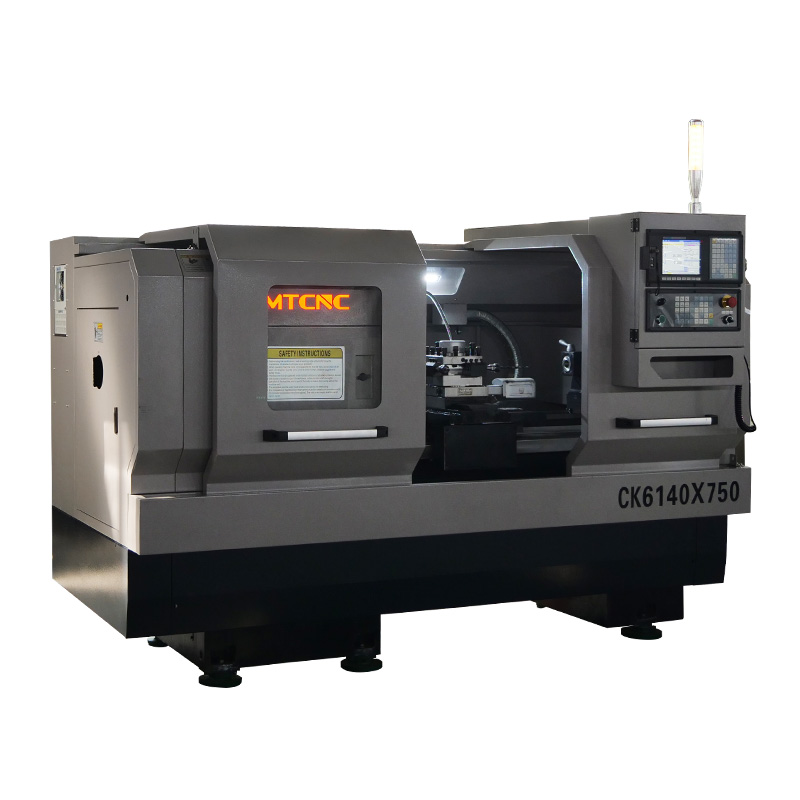

Mainly used for turning inner and outer cylindrical surface, end surface, taper surface, arc surface and thead of shaft, etc., with high efficiency and accurate processing. WMTCNC metal cnc lathe CK6140 will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
Wide Range of CNC Lathes for Sale
If you’re looking for high-quality CNC lathes, we offer a variety of models. From CNC lathes for metal turning to industrial lathes for sale, we have solutions for every need. Our CNC lathe pricing is competitive, with options to suit both small and large-scale operations.
Affordable CNC Lathe Prices and Models
WMT CNC provide CNC lathe machines for metal processing. Our offerings include advanced Fanuc CNC lathe machines, steel CNC machines, and automatic metal turning systems. Whether you need a CNC mill used machine or a brand-new CNC lathe, we’ve got you covered.
Best CNC Lathe Machines for Metal
Our CNC lathe machines are perfect for precision metal turning. We offer popular models like the CK6140 CNC lathe, designed for high-performance machining. Looking for a CNC lathe machine for sale? We also have a CNC lathe auction with great deals
Competitive CNC Lathe Cost and Price Options
Explore CNC machine lathe price options that fit your budget. Whether you’re looking for a CNC lathe turning machine or a metal CNC lathe, we offer competitive prices. Our factory-direct CNC lathe machine cost is among the best in the industry.
High-Quality CNC Lathe Machines from China
We also carry CNC metal lathe machines from China, available at excellent prices. If you’re interested in a CNC lathe machine for metal, check out our China CNC lathe machine for sale offers. We provide both new and used CNC lathes for various machining needs.
Steel Lathes and More for Sale
In addition to CNC lathes, we offer steel lathes for sale, including metal CNC lathe models. Whether you want a CNC lathe for sale or are interested in CNC lathe prices, we provide top-quality products and customer service. Our CNC lathe machines are built to deliver long-lasting results.
CK6140 CNC Lathe Specification
| Specification | CK6140 |
| Capacity | |
| Chuck size | 10” |
| Max. swing dia. over bed | 400mm |
| Max. swing dia. over slide | Φ240mm(Φ220mm) |
| Distance between center | 500/750/1000/1500mm |
| Width of bed | 330mm |
| Spindle | |
| Spindle speed range | 150-2200rpm |
| Spindle bore | Φ60mm |
| Max. dia. of through-hole | Φ50mm |
| Spindle nose | A2-6 |
| Spindle taper | MT6 |
| Axis | |
| X axis travel | 250mm |
| Z axis travel | 500/750/1000/1500mm |
| X/Z axis rapid traverse | 6/8m/min |
| Turret | |
| Type | Electrical type |
| No. of tool stations | 4,*6,*8 position |
| Max. section of tool | 25x25mm |
| Tailstock | |
| External diameter | Φ55mm |
| Travel of tailstock quill | 120mm |
| Taper of tailstock quill | MT4 |
| Motor | |
| Spindle motor power | 5.5kw,*7.5kw |
| Coolant pump power | 120w |
| Machine Dimensions | |
| Overal dimension (L×W×H) | 1700/2050/2520/3050x1400x1680mm |
| Packing size(L×W×H) | 1850/2250/2640/3200x1530x2020mm |
| N.w | 1400/1600/1800/2200kg |
| G.w | 1600/1800/2000/2400kg |
Main Features
- Full enclosure complete, safe and easy operation.
- High rigidity casting bed.
- High precision spindle bearing.
- GSK, FANUC ,Siemens system as optional selection.
- Metal cnc lathe bed guideways industively hardened.
Machine Details
3 jaw chuck
4 position toolpost
GSK, Fanuc, Siemens controller as optional selection
6 position toolpost for optional
