Description

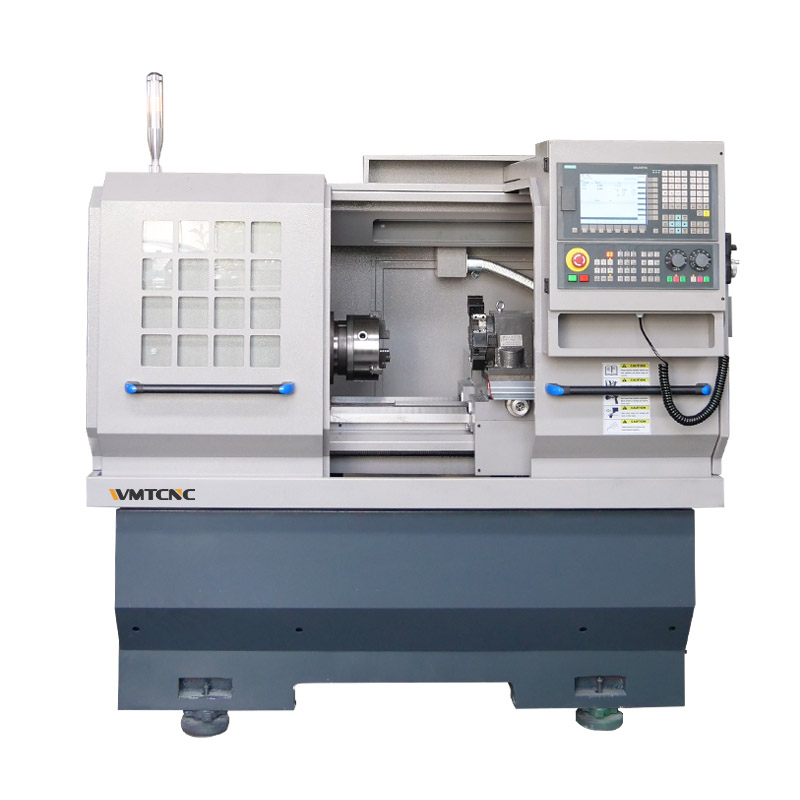

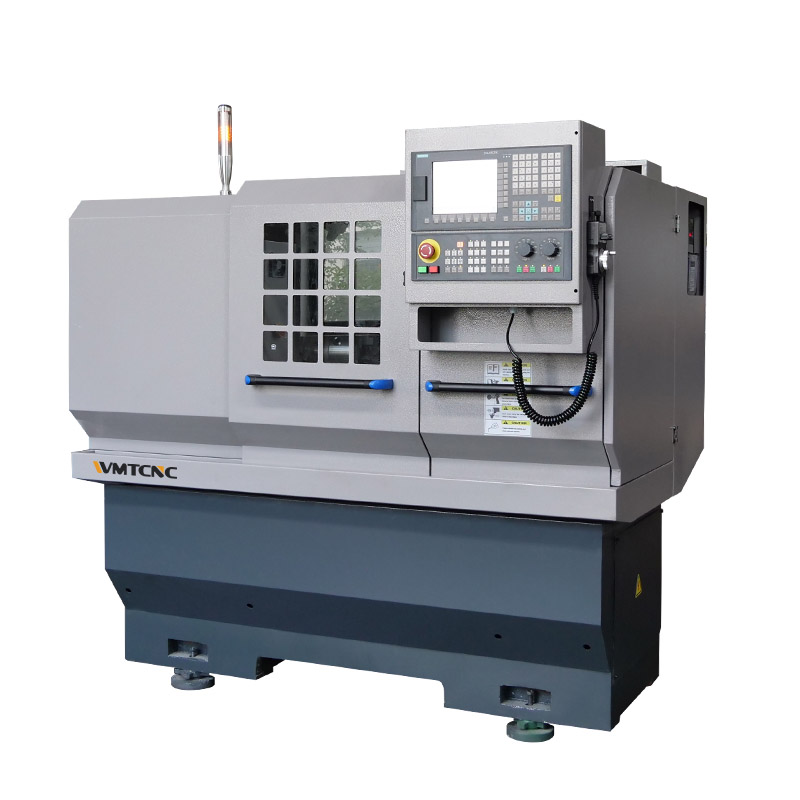

Mainly used for turning inner and outer cylindrical surface, end surface, taper surface, arc surface and thead of shaft, etc., with high efficiency and accurate processing. WMTCNC BRAND small CNC lathe CK6432 will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
Explore Our Range of Small CNC Lathes and Turning Machines
If you’re searching for a compact CNC lathe or a mini CNC lathe, we have a wide selection tailored for metal turning and precision machining. Our micro CNC lathe machines offer exceptional accuracy for small-scale operations, making them perfect for hobbyists and professionals alike.
Discover the Best Mini CNC Lathe Options
We offer a variety of small CNC lathes that are designed for high precision and affordability. Whether you’re looking for the smallest CNC lathe or a tiny CNC lathe for delicate tasks, our machines provide reliable performance for all your turning needs. Browse our collection of mini CNC lathe machines for sale, and find the right equipment to meet your requirements.
Affordable Prices on Small CNC Lathe Machines
When it comes to small CNC lathe machines, we offer competitive prices, including options for discount mini CNC lathes. Whether you need a computerized lathe for industrial use or a small CNC lathe for sale for personal projects, we have affordable options to suit your budget. Our miniature CNC lathes provide precision while maintaining an economical price point.
Compact CNC Lathes for Metal Turning
For those in need of metal turning solutions, we provide CNC metal lathe machines that offer great versatility. Whether you’re interested in a mini CNC turning machine or a small CNC turning center, our lathes ensure accurate results every time. Our mini CNC lathe for sale options are perfect for turning metal and other materials with ease.
Why Choose Our CNC Lathe Machines?
From micro CNC lathe machines to small piece partition turning machines, our product lineup is designed to meet a variety of industrial needs. We offer both small CNC lathe machines for intricate tasks and mini CNC lathes for larger turning operations. With reliable performance and modern features, these machines are ideal for a range of machining applications.
Compact CNC Lathe Specification
| Specification | CK6432 |
| Capacity | |
| Chuck size | 8” |
| Max. swing dia. over bed | 360mm |
| Max. swing dia. over slide | 155mm |
| Distance between center | 500/750/1000mm |
| Width of bed | 260mm |
| Spindle | |
| Spindle speed range | 150-2200 rpm |
| Spindle bore | Φ60mm |
| Max. dia. of through-hole | Φ50mm |
| Spindle nose | A2-6 |
| Spindle taper | MT6 |
| Axis | |
| X axis travel | 350mm |
| Z axis travel | 500/750/1000mm |
| X/Z axis rapid traverse | 6/8m/min |
| Turret | |
| Type | Electrical type |
| No. of tool stations | 4,*6,*8 position |
| Max. section of tool | 4P (20x20mm),*6P,8P (16x16mm) |
| Tailstock | |
| External diameter | Φ50mm |
| Travel of tailstock quill | 110mm |
| Taper of tailstock quill | MT4 |
| Motor | |
| Spindle motor power | 4kw |
| Coolant pump power | 120w |
| Machine Dimensions | |
| Overal dimension (L×W×H) | 1800/2060/2320x1200x1600mm |
| Packing size(L×W×H) | 920/2250/2500x1460x2000mm |
| N.w | 1300/1450/1600kg |
| G.w | 1450/1650/1800kg |
Main Features
- Full enclosure complete, safe and easy operation.
- High rigidity casting bed.
- High precision spindle bearing.
- GSK, FANUC ,Siemens system as optional selection.
- Small cnc lathe bed guideways industively hardened.
Machine Details
3 jaw chuck
4 position toolpost
GSK, Fanuc, Siemens controller as optional selection
6 position toolpost for optional
