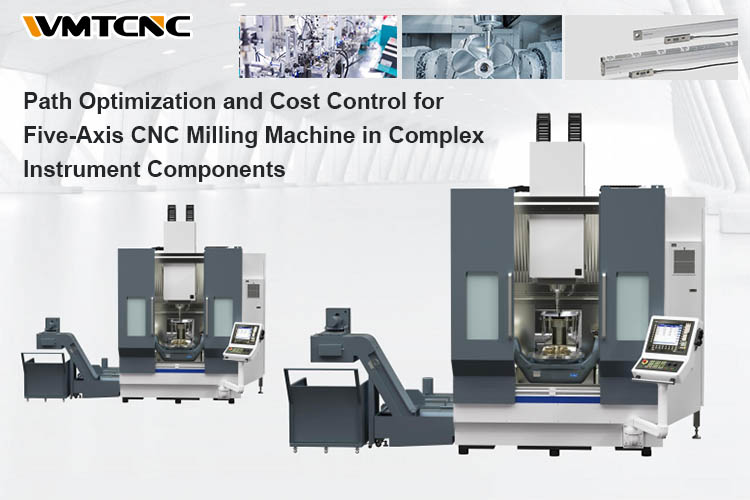

High-precision, high-efficiency machine tools, five-axis CNC milling machines are widely used in contemporary manufacturing, especially for the machining of intricate instrument components.With technological advancements, the design of intricate components has become increasingly sophisticated, rendering traditional machining methods inadequate for meeting demands for high precision and rapid production.As a result, a key answer to this problem is five-axis CNC technology.However, in practical application, the challenge of enhancing production efficiency and reducing resource wastage through path optimisation and cost control remains an urgent technical issue.This study investigates cost control and path optimization for 5-axis CNC milling machines used to machine intricate mechanical parts. It offers pertinent solutions based on the WMTCNC brand’s actual use.
A five-axis CNC milling machine refers to a machine tool capable of performing coordinated machining operations across five independent coordinate axes. Its operating principle differs from that of traditional three-axis milling machines. By incorporating two additional rotary axes, the tool can move freely in multiple directions, enabling the production of more complex and precise components. Compared to conventional CNC milling machines, 5-axis CNC milling machines offer several significant advantages:
High precision: Five-axis interpolation enables smoother tool paths, facilitating more accurate machining of complex-shaped components.
High efficiency: Simultaneous machining across multiple axes reduces workpiece repositioning time, thereby enhancing production efficiency.
Exceptional capability for complex geometries: Five-axis CNC milling machines can easily handle complex geometries, including parts for medical and aerospace devices.
The foundation for increasing the production capacity and accuracy of five-axis CNC milling machines is path optimization, which is also a fundamental technique for increasing machining efficiency. Path optimization aims to minimize tool wear, increase cutting efficiency, reduce machining time, and eliminate unnecessary movements when producing complex instrument components. The following table describes the technical steps taken and their useful results in order to make sense of the complicated idea of path optimization:
| Optimization Goal | Optimization Techniques & Strategies | Optimization Effects | Practical Application Example |
| Reduce Idle Travel | Use smart path planning and dynamic adjustment algorithms | Reduces tool idle time when not in contact with the workpiece | Efficient processing of aerospace components |
| Increase Cutting Efficiency | Dynamically adjust tool feed speed and cutting depth | Increases cutting volume per unit time, reducing processing cycle time | Precision machining of medical device components |
| Tool Wear Control | Optimize tool paths to minimize unnecessary high-load cutting | Extends tool life and reduces frequent tool replacements costs | Batch production of high-precision mechanical parts |
| Minimize Collision Risks | Optimize paths using simulation and CAD (Computer-Aided Design) | Prevents tool collisions with workpieces or other machine parts | High-precision mold manufacturing, precision part machining |
For machining complex components, 5-axis CNC milling machines’ exceptional precision and adaptability provide clear benefits. However, their substantial equipment investment and maintenance costs necessitate effective cost control during operation. How to reduce production costs through judicious investment and optimised production processes remains a critical challenge for enterprises.
Five-axis CNC milling machines entail significant initial investment, with equipment utilisation directly impacting return on investment. As a result, sensible setup and effective functioning are crucial. An intelligent task scheduling system is a feature of WMTCNC 5-axis CNC milling machines. This prevents extended downtime and increases utilization rates by automatically optimizing equipment usage time in accordance with production plans. Additionally, businesses can use the same machine for a variety of production processes thanks to the equipment’s adaptability and flexibility, which lowers maintenance and purchase costs even more.
For their five-axis CNC milling machines, other well-known brands like DMG MORI and HAAS place an equal emphasis on intelligent production scheduling and equipment management. DMG MORI’s ‘CELOS’ platform delivers efficient production scheduling and resource management functions, maximising equipment utilisation. HAAS’s 5-axis CNC milling machines feature the ‘Intuitive Programming’ system, simplifying operation and task scheduling for more effective equipment management.
Tool management constitutes a critical aspect of five-axis CNC milling operations. The judicious selection and effective management of cutting tools can substantially reduce production costs. Whilst high-performance tools entail a higher initial investment, their superior cutting efficiency and extended service life significantly decrease tool change frequency, thereby lowering overall expenditure.
For example, Siemens’ tool management system uses real-time tool status monitoring to dynamically modify machining procedures and tool parameters. This helps users cut down on waste and prolong tool life. Furthermore, high-level integration with machine tool systems is provided by Mitsubishi’s tool management software, allowing for more accurate tool condition analysis. It further improves machining efficiency and reduces tooling costs by minimizing ineffective cutting.
Reducing processing time directly impacts production efficiency and cost control. Five-axis CNC milling machine can substantially minimise unnecessary idle travel, excessive cutting, and machine downtime through path optimisation and process adjustments. Intelligent machining technologies automatically optimise cutting paths and tool feed rates according to component requirements, thereby shortening processing times and enhancing overall production efficiency.
The well-known brand FANUC has extremely effective control systems that cleverly optimize machining operations to cut down on processing time. With the help of its “FANUC Intelligent Edge Link” technology, FANUC machines can automatically modify their machining strategies to increase processing speed and production efficiency by sending production data in real-time to the cloud for analysis. To further reduce inefficient motion and increase productivity, Haas Automation also uses its “Next Generation Control” system in conjunction with sophisticated dynamic path planning.
For instance, WMTCNC’s five-axis CNC milling machines have proven to be exceptionally effective in machining intricate medical device components in a variety of industries. Here are a few examples of common use cases:
Aerospace Industry: Conventional three-axis machines find it difficult to meet the high precision and complex geometries required for aerospace components. Through precise path optimization and tool control, WMTCNC’s 5-axis CNC milling machines achieve efficient machining, greatly increasing component quality and production efficiency.
Medical Device Industry: Processing components for medical devices requires excellent surface finish and high precision. The intelligent path optimization technology used by WMTCNC’s 5 axis CNC milling machines lowers idle travel and tool wear during machining, lowering costs and improving processing quality.
Precision Machinery Industry: WMTCNC’s 5 axis CNC milling machines can flexibly modify their cutting paths based on the geometry and properties of precision mechanical components. This lowers material waste and equipment energy consumption while improving machining quality and efficiency.
Through cost control and path optimization, the use of 5 axis CNC milling machines in the machining of intricate instrument components has successfully increased production efficiency and machining precision. With their sophisticated technology and intelligent systems, WMTCNC’s 5-axis CNC milling machines have emerged as the go-to piece of machinery for many businesses looking to reduce costs and increase production efficiency. Five-axis CNC milling machines will become more and more important as technology develops, bringing industries into a period of more accurate and efficient manufacturing.
