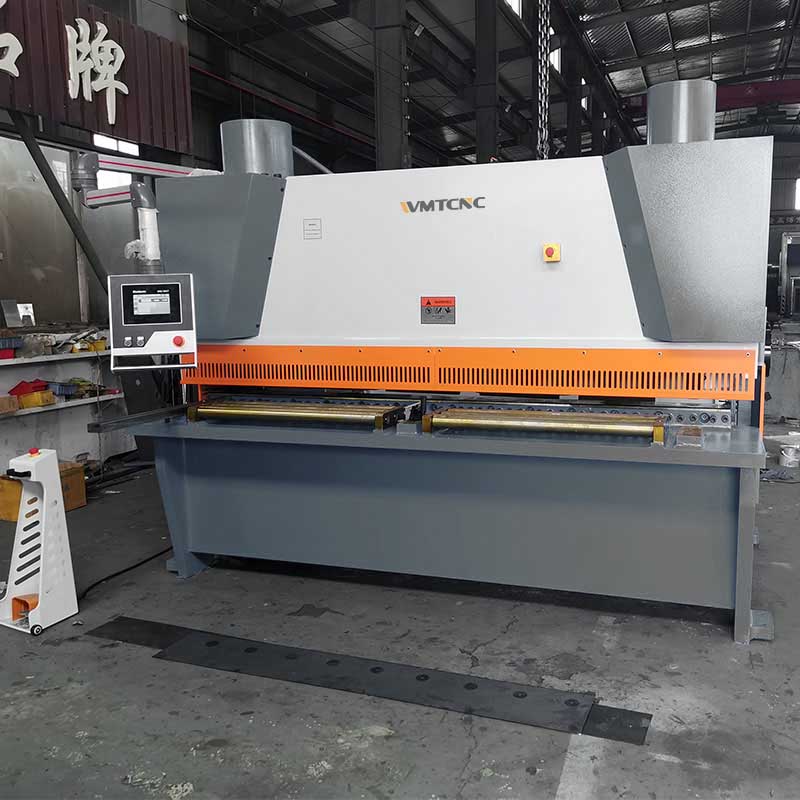

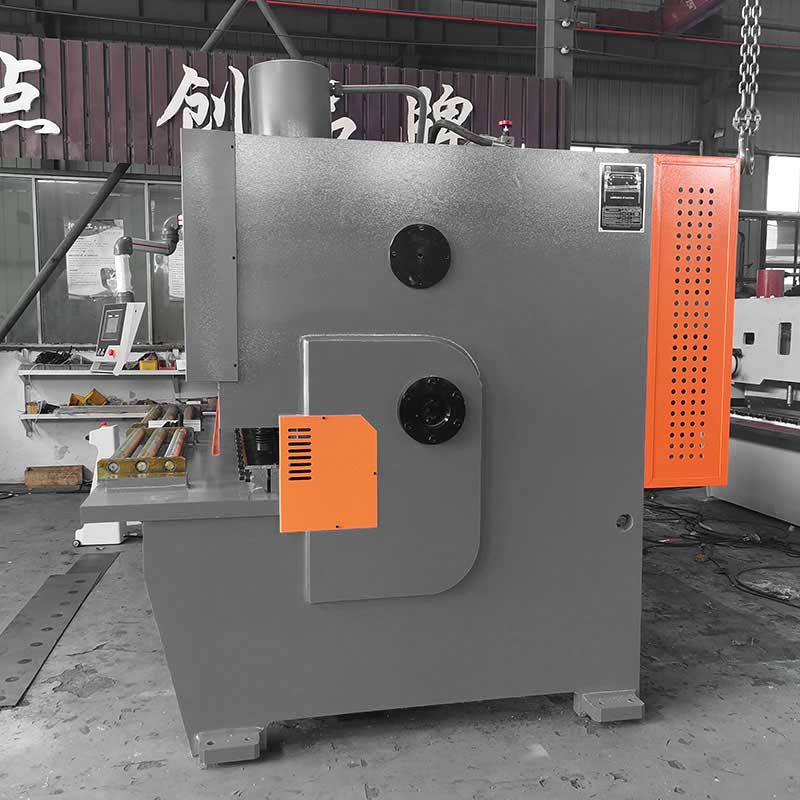

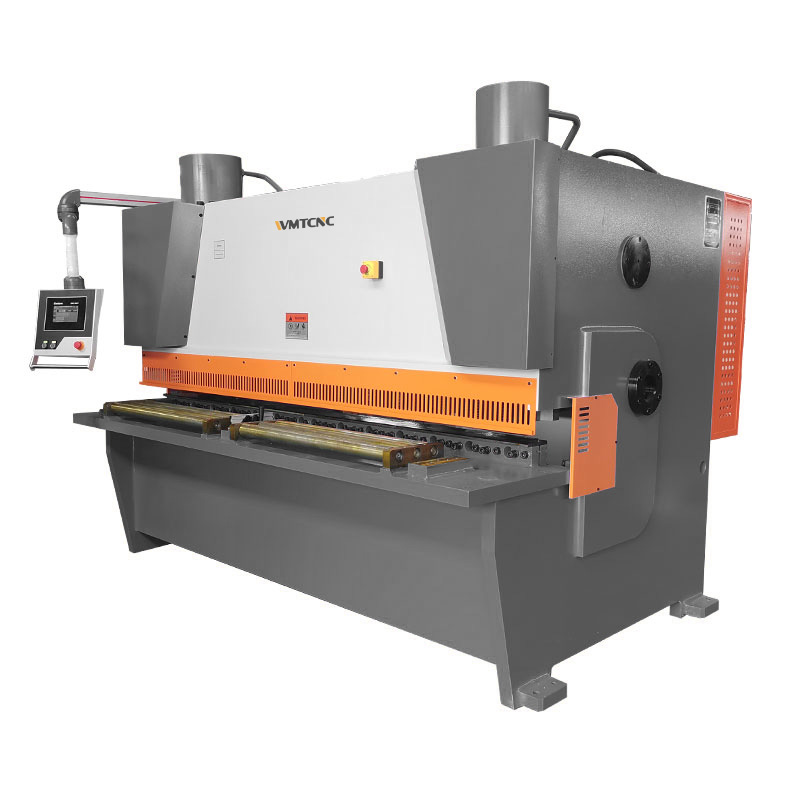

QC11Y-20X2500 Heavy-Duty Hydraulic Guillotine Shear

Description

The QC11Y-20X2500 Heavy-Duty Hydraulic Guillotine Shear is designed for high-precision cutting of steel plates and heavy sheet metal in demanding industrial environments. Built with a reinforced welded steel frame, this machine offers exceptional structural rigidity, minimizing vibration and ensuring consistent accuracy during prolonged high-load operations.

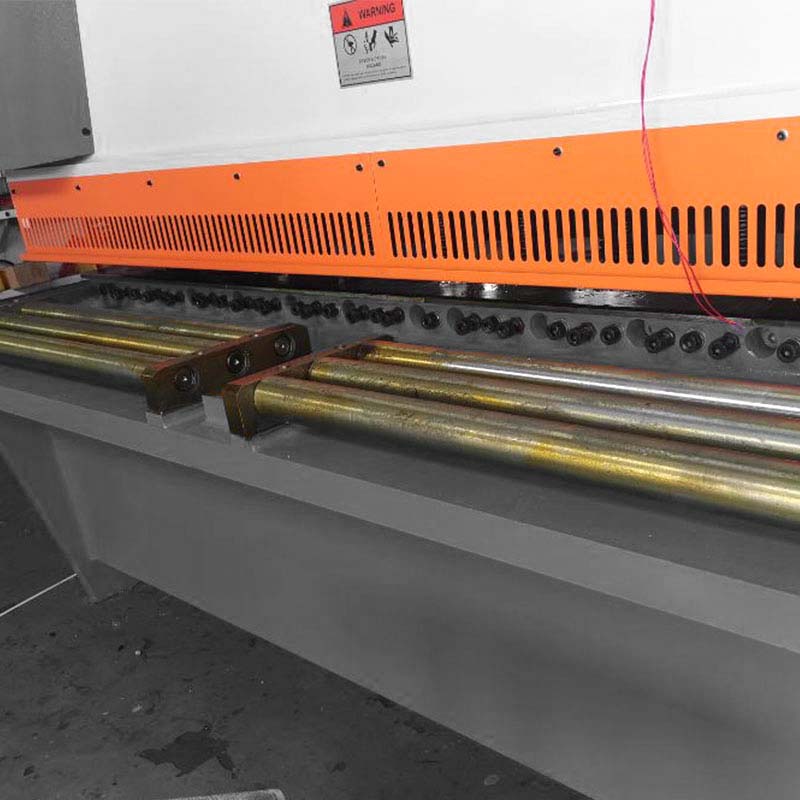

Fitted with high-carbon high-chromium guillotine blades, the QC11Y-20X2500 produces clean, burr-free cuts with minimal material deformation. Its advanced hydraulic system delivers stable, powerful cutting force, while the adjustable shear angle optimizes performance for different material types and thicknesses.

With a cutting capacity of up to 20mm thickness and 2500mm maximum cutting length, it is ideal for steel structure fabrication, shipbuilding, heavy machinery manufacturing, and metal processing workshops. The precision back gauge system ensures accurate, repeatable cutting, improving production efficiency and reducing waste.

Specifications

Model	Shear Thickness	Shear Width	Shear Angle	Number of Stroke	Backgauge Range	Main Power
QC11Y/K-6×2500	6 mm	2500 mm	30′-1º30′	16-35 min-1	10-600 mm	7.5 kw
QC11Y/K-6×3200	6 mm	3200 mm	30′-1º30′	14-32 min-1	10-600 mm	7.5 kw
QC11Y/K-6×4000	6 mm	4000 mm	30′-1º30′	10-30 min-1	10-600 mm	7.5 kw
QC11Y/K-6×6000	6 mm	6000 mm	30′-1º30′	8-25 min-1	10-800 mm	11 kw
QC11Y/K-8×2500	8 mm	2500 mm	30′-1º30′	14-32 min-1	10-600 mm	7.5 kw
QC11Y/K-8×3200	8 mm	3200 mm	30′-1º30′	12-30 min-1	10-600 mm	11 kw
QC11Y/K-8×4000	8 mm	4000 mm	30′-1º30′	10-25 min-1	10-600 mm	11 kw
QC11Y/K-8×6000	8 mm	6000 mm	1º-2º	8-20 min-1	20-800 mm	15 kw
QC11Y/K-12×2500	12 mm	2500 mm	1º-2º	12-25 min-1	20-600 mm	18.5 kw
QC11Y/K-12×3200	12 mm	3200 mm	1º-2º	10-22 min-1	20-600 mm	18.5 kw
QC11Y/K-12×4000	12 mm	4000 mm	1º-2º	8-20 min-1	20-600 mm	18.5 kw
QC11Y/K-12×6000	12 mm	6000 mm	1º-2º30′	6-15 min-1	20-800 mm	22 kw
QC11Y/K-16×2500	16 mm	2500 mm	1º-2º30′	12-22 min-1	20-600 mm	18.5 kw
QC11Y/K-16×3200	16 mm	3200 mm	1º-2º30′	10-20 min-1	20-600 mm	18.5 kw
QC11Y/K-16×4000	16 mm	4000 mm	1º-2º30′	8-15 min-1	20-600 mm	18.5 kw
QC11Y/K-16×6000	16 mm	6000 mm	1º-3º	6-15 min-1	20-800 mm	22 kw
QC11Y/K-20×2500	20 mm	2500 mm	1º-3º	8-20 min-1	20-800 mm	22 kw
QC11Y/K-20×3200	20 mm	3200 mm	1º-3º	8-15 min-1	20-800 mm	22 kw
QC11Y/K-20×4000	20 mm	4000 mm	1º-3º	6-12 min-1	20-800 mm	30 kw
QC11Y/K-25×2500	25 mm	2500 mm	1º-3º	5-12 min-1	20-800 mm	30 kw
QC11Y/K-25×3200	25 mm	3200 mm	1º-3º	5-10 min-1	20-800 mm	30 kw
QC11Y/K-25×4000	25 mm	4000 mm	1º-3º	6-12 min-1	20-1000 mm	37 kw
QC11Y/K-32×2500	32 mm	2500 mm	1º-3º30′	5-12 min-1	20-1000 mm	37 kw
QC11Y/K-32×3200	32 mm	3200 mm	1º-3º30′	5-10 min-1	20-1000 mm	37 kw
QC11Y/K-32×4000	32 mm	4000 mm	1º-3º30′	8-12 min-1	20-1000 mm	55 kw
QC11Y/K-40×2500	40 mm	2500 mm	2º-4º	4-10 min-1	20-1000 mm	55 kw
QC11Y/K-40×3200	40 mm	3200 mm	2º-4º	4-10 min-1	20-1000 mm	55 kw
QC11Y/K-40×4000	40 mm	4000 mm	2º-4º	4-10 min-1	20-1000 mm	55 kw
