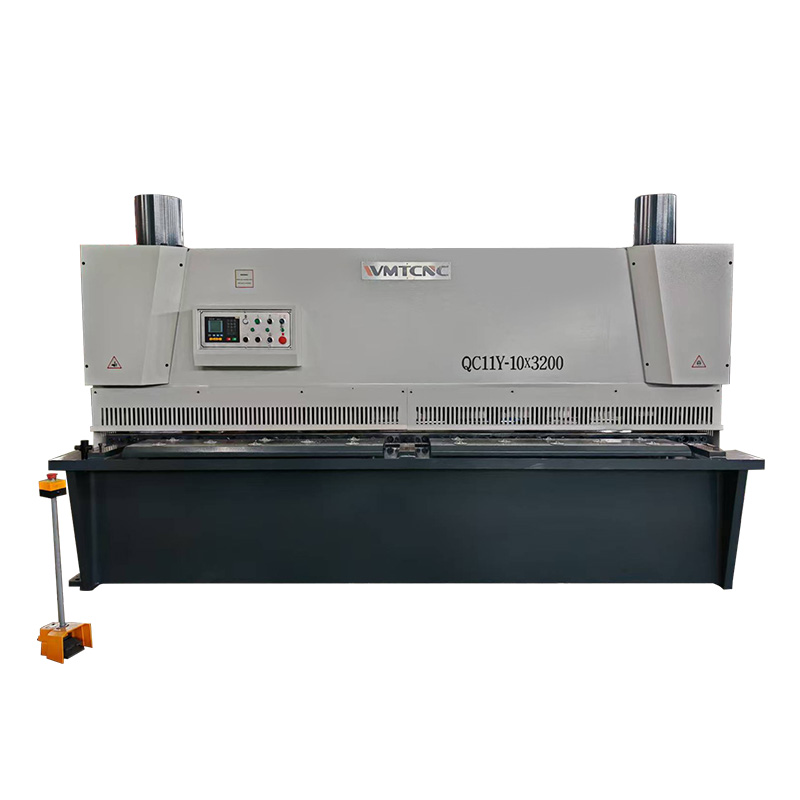

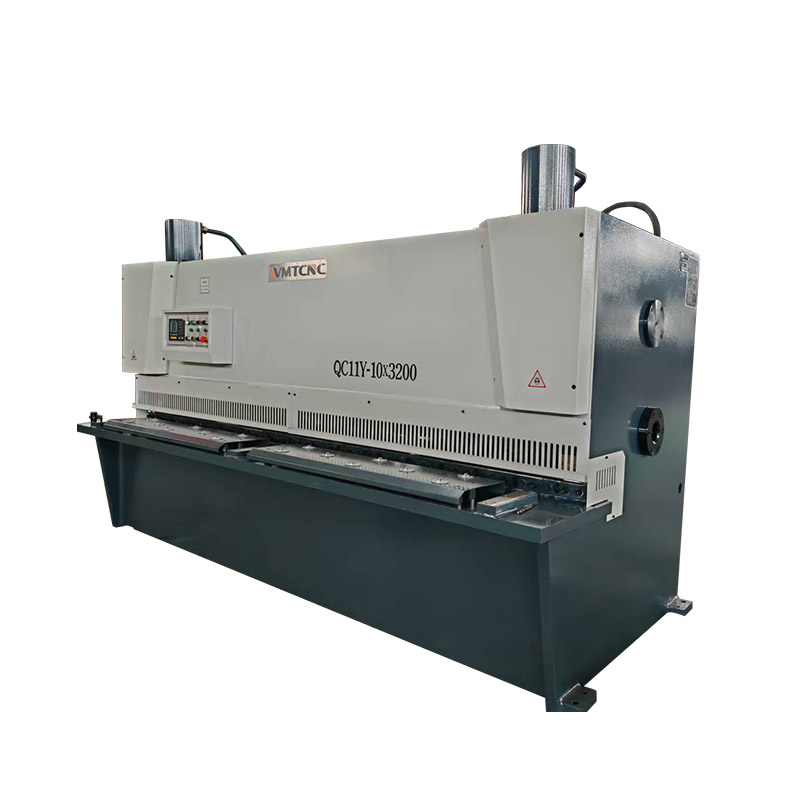

QC11Y-10X3200 Factory Sale Hydraulic Guillotine Plate Shear

QC11Y-10X3200 Factory Direct Sale Hydraulic Guillotine Plate Shear

Cutting length: 2500/3200/4000/6000mm
Cutting thickness: 10mm
Back gauge range: 20-600mm
Motor power: 18.5kw
Brand Name:WMTCNC

Description

The Hydraulic Guillotine Shear Machine offers exceptional accuracy and performance for sheet metal and steel plate cutting. Engineered with a robust steel frame, precision-ground guillotine blades, and a responsive hydraulic system, it ensures smooth, burr-free cuts with minimal effort. Available in CNC-controlled and heavy-duty industrial configurations, this shear is ideal for high-volume production, guaranteeing consistent results, low maintenance, and long-term durability.

Specifications

Model	Shear Thickness	Shear Width	Shear Angle	Number of Stroke	Backgauge Range	Main Power
QC11Y/K-6×2500	6 mm	2500 mm	30′-1º30′	16-35 min-1	10-600 mm	7.5 kw
QC11Y/K-6×3200	6 mm	3200 mm	30′-1º30′	14-32 min-1	10-600 mm	7.5 kw
QC11Y/K-6×4000	6 mm	4000 mm	30′-1º30′	10-30 min-1	10-600 mm	7.5 kw
QC11Y/K-6×6000	6 mm	6000 mm	30′-1º30′	8-25 min-1	10-800 mm	11 kw
QC11Y/K-8×2500	8 mm	2500 mm	30′-1º30′	14-32 min-1	10-600 mm	7.5 kw
QC11Y/K-8×3200	8 mm	3200 mm	30′-1º30′	12-30 min-1	10-600 mm	11 kw
QC11Y/K-8×4000	8 mm	4000 mm	30′-1º30′	10-25 min-1	10-600 mm	11 kw
QC11Y/K-8×6000	8 mm	6000 mm	1º-2º	8-20 min-1	20-800 mm	15 kw
QC11Y/K-12×2500	12 mm	2500 mm	1º-2º	12-25 min-1	20-600 mm	18.5 kw
QC11Y/K-12×3200	12 mm	3200 mm	1º-2º	10-22 min-1	20-600 mm	18.5 kw
QC11Y/K-12×4000	12 mm	4000 mm	1º-2º	8-20 min-1	20-600 mm	18.5 kw
QC11Y/K-12×6000	12 mm	6000 mm	1º-2º30′	6-15 min-1	20-800 mm	22 kw
QC11Y/K-16×2500	16 mm	2500 mm	1º-2º30′	12-22 min-1	20-600 mm	18.5 kw
QC11Y/K-16×3200	16 mm	3200 mm	1º-2º30′	10-20 min-1	20-600 mm	18.5 kw
QC11Y/K-16×4000	16 mm	4000 mm	1º-2º30′	8-15 min-1	20-600 mm	18.5 kw
QC11Y/K-16×6000	16 mm	6000 mm	1º-3º	6-15 min-1	20-800 mm	22 kw
QC11Y/K-20×2500	20 mm	2500 mm	1º-3º	8-20 min-1	20-800 mm	22 kw
QC11Y/K-20×3200	20 mm	3200 mm	1º-3º	8-15 min-1	20-800 mm	22 kw
QC11Y/K-20×4000	20 mm	4000 mm	1º-3º	6-12 min-1	20-800 mm	30 kw
QC11Y/K-25×2500	25 mm	2500 mm	1º-3º	5-12 min-1	20-800 mm	30 kw
QC11Y/K-25×3200	25 mm	3200 mm	1º-3º	5-10 min-1	20-800 mm	30 kw
QC11Y/K-25×4000	25 mm	4000 mm	1º-3º	6-12 min-1	20-1000 mm	37 kw
QC11Y/K-32×2500	32 mm	2500 mm	1º-3º30′	5-12 min-1	20-1000 mm	37 kw
QC11Y/K-32×3200	32 mm	3200 mm	1º-3º30′	5-10 min-1	20-1000 mm	37 kw
QC11Y/K-32×4000	32 mm	4000 mm	1º-3º30′	8-12 min-1	20-1000 mm	55 kw
QC11Y/K-40×2500	40 mm	2500 mm	2º-4º	4-10 min-1	20-1000 mm	55 kw
QC11Y/K-40×3200	40 mm	3200 mm	2º-4º	4-10 min-1	20-1000 mm	55 kw
QC11Y/K-40×4000	40 mm	4000 mm	2º-4º	4-10 min-1	20-1000 mm	55 kw
