Description

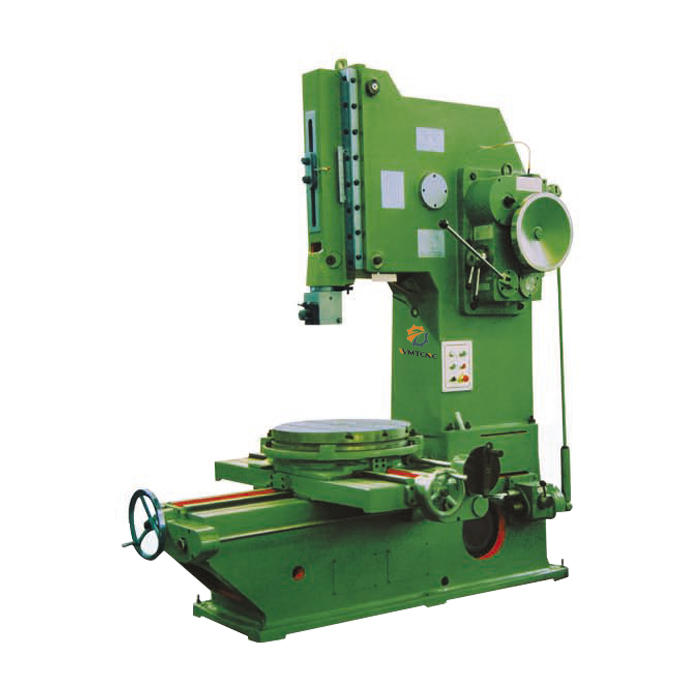

This automatic slotting machine is highly suitable for vertical slotting of active surfaces, notches, and various other intricate features of parts. In addition, it offers excellent versatility across different types of workpieces. Moreover, the machine operates with superior smoothness and stability because it adopts a robust double-crank mechanism, which not only enhances machining precision but also significantly extends the machine’s service life.
Specification
| Specification | BQ5040 |
| Max. cutting length (interpolated inner hole 360 mm) | 400mm |
| Max. weight of the workpiece | 500kg |
| Max. cutting force | 750N |
| Number of reciprocations per minute of the ram | 20, 32, 50, 80 |
| Ram vertical adjustment distance | 315mm |
| Ram tilt angle | 0–8° |
| Max. size of the plug (width × height) | 25×40mm |
| Table diameter | 630mm |
| Distance between the support surface of the cutter head and the front wall of the bed | 600mm |
| Work surface to the lower end of the carriage | 690mm |
| Worktable max. longitudinal movement distance | 620mm |
| Worktable max. lateral movement distance | 560mm |
| Worktable vertical and horizontal maneuvering feed range | 0.08–1.21mm |
| Worktable rotary maneuvering feed range | 0.052–0.783° |
| Main motor power | 4kW |
| Main motor speed | 960r.p.m |
| Machine size (L×W×H) | 2290×1525×2485mm |
| Machine weight | 3700kg |
Main Features
This machine tool processes all kinds of flat part surfaces, profiles, and keyways, making it suitable for single or small batch production.
The main transmission mechanism changes the rotary motion of the crank gear into the reciprocating motion of the ram. Operators manually feed the worktable to perform longitudinal, transverse, and rotary maneuvers.
The workbench automatically stops feeding when a malfunction occurs. The product design follows standardization, universality, serialization, and a high degree of integration, featuring a reasonable layout, compact structure, and easy maintenance.
The machine uses three intersecting power supply with a voltage of 380 volts and frequencies of 50 Hz.Other power conditions proposed by the user can be specially supplied after negotiation.
