Description
The automatic slotting machine is a highly versatile piece of equipment designed for precision cutting of planes, contoured surfaces, grooves, and keyways on a wide range of parts. It is particularly well-suited for machining the internal surfaces of complex workpieces that require high levels of accuracy and detailed profiling.
This machine employs a vertical reciprocating motion of the cutting tool, allowing it to produce clean, consistent cuts on both flat and irregular surfaces. Operators can easily set the stroke length and adjust the cutting depth to match the specific requirements of each project, making it ideal for creating slots, internal gears, keyways, and shaped profiles.
Thanks to its robust structure and advanced control capabilities, the slotting machine maintains excellent stability during operation, even when working with large or heavy components. The real-time adjustment features enable seamless modification of machining parameters without stopping the machine, which significantly enhances operational efficiency and productivity.
Specification of Automatic Slotting Machine
| Specification | BC5050 |
| Maximum cutting length (inserted hole 450 mm) | 500mm |
| Table diameter | 1000mm |
| Worktable maximum longitudinal movement distance | 660mm |
| Worktable maximum lateral movement distance | 1000mm |
| Workbench maximum load | 2000kg |
| Distance from work surface to the lower end of the carriage | 740mm |
| Distance from the tool support surface to the front wall of the bed | 990mm |
| Ram adjustment distance | 430mm |
| Ram tilt angle (left and right direction) | ±10° |
| Number of ram reciprocations (per minute) | 9, 12.5, 18, 25, 36, 50 |
| Worktable vertical and horizontal feed rate per ram stroke (mm) | 0.1, 0.2, 0.3, 0.4, 0.6, 1.2 |
| Worktable rotary feed range (per ram stroke) | 3′, 6′, 9′, 12′, 18′, 36′ |
| Maximum cutting force | 16000N |
| Main drive motor | 7.5kW 1440r.p.m |
| Feed servo motor | 4.0kW |
| Cooling pump motor | 0.125kW 2800r.p.m |
| Machine weight | 10.3T |
| Machine contour (length × width × height) | 3480×2085×3307mm |
| Split package size | 3680/2260/1200/2250/1100/2250mm |
Main Features
- The machine adopts double crank mechanism the moving stable table adopts advanced PLC system and this feeding system is composed of digital control system and feeding motor system.
- Worktable with mobile rotary positioning, provides convenience processing multiple keyways simultaneously,continuous non-polar feed, with real-time feed parameters are shown on a text display.
- When the machine tool is used for a long time,the machine system wears severely,it can be carried out by professionals to do some error compensation with the control system to ensure the accuracy.

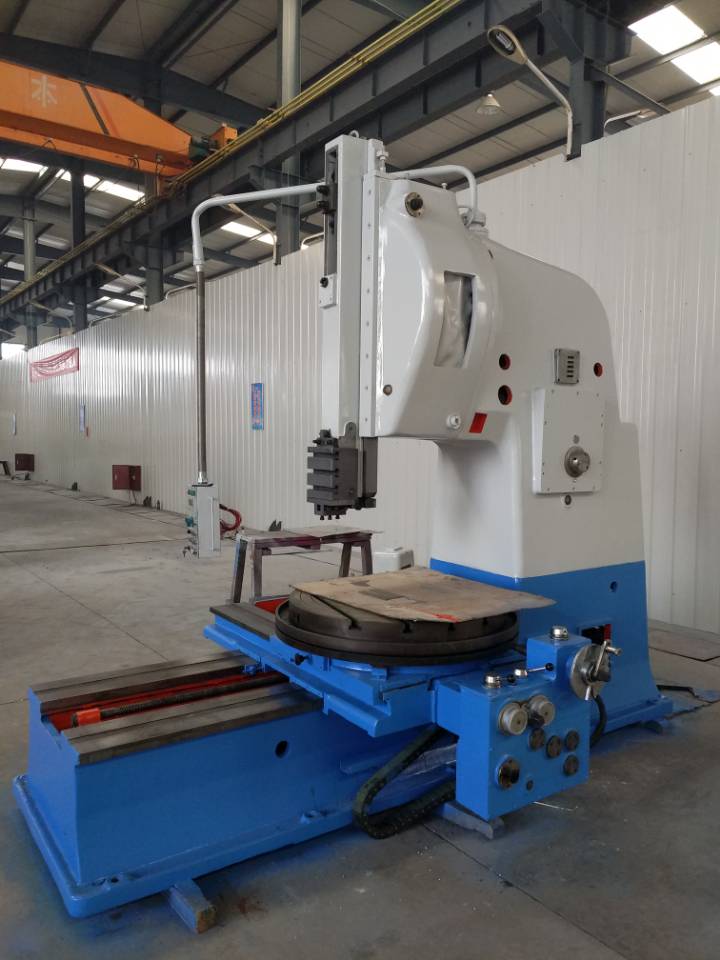

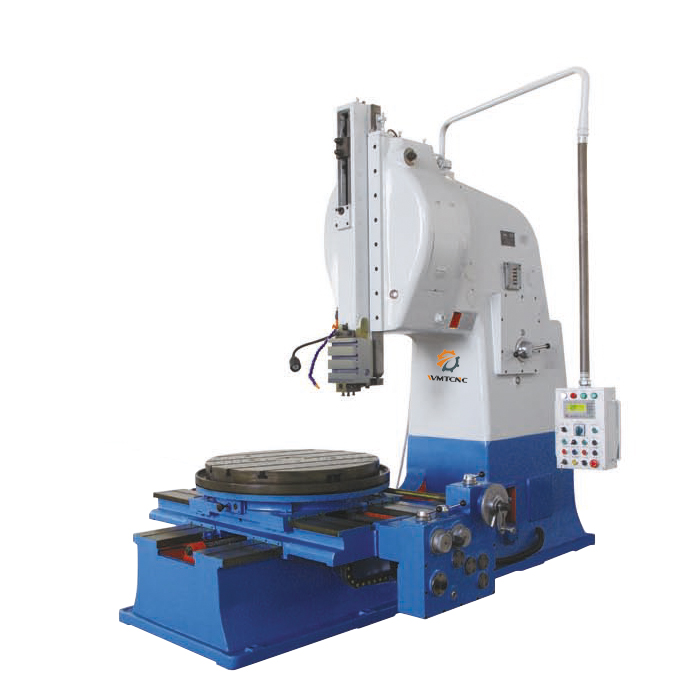

Machine details
