Description

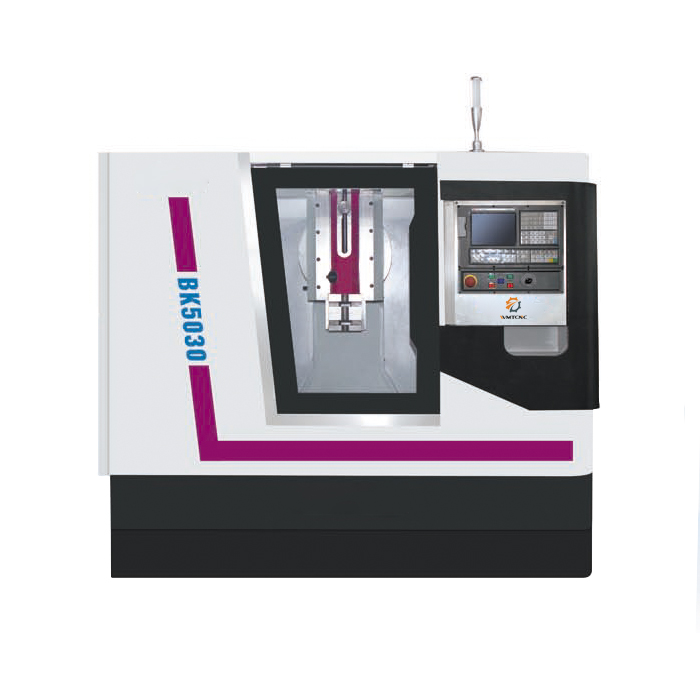

The CNC slotting machine BK5030 is a highly versatile and efficient tool designed for the precise processing of keyway splines and the inner keyways of blind holes. Its advanced design and robust structure make it particularly suitable for demanding machining tasks that require high accuracy and consistency.
This machine is widely used in the manufacturing of machinery components and automotive parts, where precise internal slotting is essential for product performance and reliability. Its ability to handle complex inner structures with high precision has made it an indispensable tool in modern manufacturing environments.
Specification
| Specification | BK5030 |
| The maximum length of ram | 300mm |
| Ram adjustment stroke | 300mm |
| Number of ram movements | 20/80 n/min |
| Working desk size | 550×405mm |
| Table travel (X, Y) | 280×330mm |
| Distance between the axis of the tool bearing hole and the forearm of the column | 505mm |
| Distance between the end face of the cutter head support hole and the table | 540mm |
| X direction motor torque | 6 N·m |
| Y direction motor torque | 6 N·m |
| Fast-moving speed (X direction) | 5 m/min |
| Fast-moving speed (Y direction) | 5 m/min |
| Ball screw (X) | FFZD3205-3/P4 |
| Ball screw (Y) | FFZD3205-3/P4 |
| Main motor power | 3.7kW |
| Machine tool weight (about) | 2800kg |
| Package dimensions | 2300/2200/2300mm |
Main Features
Synchronous belt drive,low noise,high transmission power
main motor:servo motor
Y ball screw :double nut preload
Perpendicularity of Z/Y≦0.02mm
Optional configuration over numerical control rotary table(with chuck)
All-closed protection
Machine Details of CNC Slotting Machine
