Description

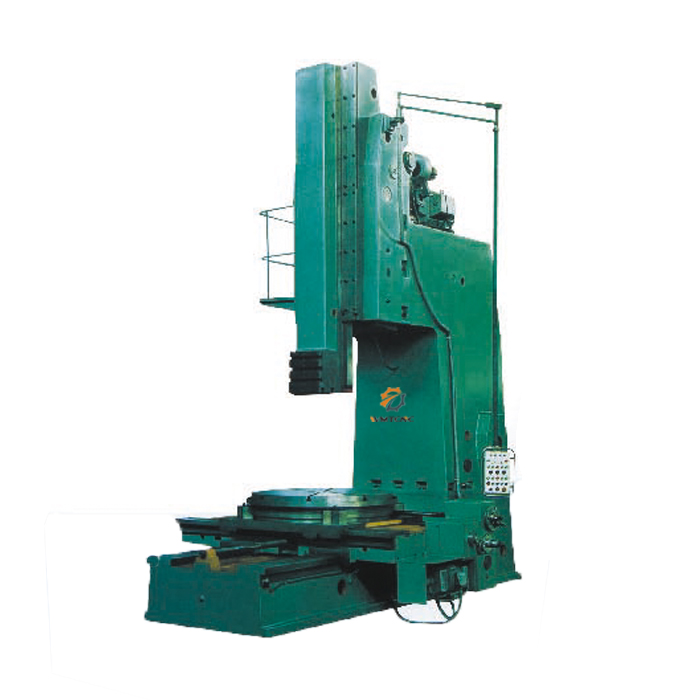

The vertical slotting machine is designed to cut a variety of internal and external planes on large and medium-sized parts. It features an adjustable sliding reciprocating motion, allowing real-time modifications to profile surfaces and keyways without stopping the operation.
Furthermore, the vertical slotting machine handles a wide range of slotting tasks with ease. Operators can create simple straight slots as well as more intricate and complex profiles, maintaining high levels of accuracy throughout the machining process. The machine’s robust design ensures consistent performance even when working on heavy or complex workpieces, making it an indispensable tool across industries such as automotive manufacturing, aerospace engineering, heavy equipment production, and general metalworking.
With its combination of real-time adjustment capabilities, precise control, and versatility, the vertical slotting machine provides manufacturers with a reliable solution for enhancing production efficiency, improving part quality, and reducing operational costs. Its ability to handle various applications while maintaining continuous operation sets it apart as an essential asset in modern machining environments.
Specification
| Specification | BC50125 |
| Maximum cutting length (interpolated inner hole 850mm) | 1250mm |
| Cutting stroke speed | 4-30m/min |
| Return travel speed | 7-30r/min |
| Maximum weight for pluggable work | 450kg |
| Main drive motor power | 37kw |
| Allow maximum cutting force (when the stroke speed is 16m-20m) | 24500N |
| Table diameter | 1400mm |
| Workbench maximum movement (longitudinal) | 1400mm |
| Workbench maximum movement (transverse) | 1120mm |
| Workbench rotation | 360° |
| Distance from tool support surface to front wall of the bed | 1600mm |
| Feed range | 0.2-3mm/double stroke |
| Landscape feed | 0.2-3mm/double stroke |
| Circumferential feed (based on circumference of 700) | 0.1-5mm/double stroke |
| Distance from work surface to lower end of carriage | 1650mm |
| Workbench quick shift (portrait and landscape) | 500mm/min |
| Machine dimensions (length × width × height) | 4600×3200×5300mm |
| Total machine weight (including electrical equipment) | 26T |
Main Features
The slide bed, work table and oil pump are driven by separate electric motors
The cutting speed can be step-less adjusted.
Machine has various safety devices like electromagnetic automatic knife lifting of the tool holder and bar
The tool holder is used for external cutting, and the tool bar is used for interpolation and keyway.
The vertical slotting machine offers the unique capability to adjust its sliding reciprocating motion during operation. Operators can actively modify the depth, angle, and position of the cut in real time without halting the machine, which significantly enhances operational efficiency and minimizes downtime. By allowing on-the-fly adjustments, the machine enables continuous production workflows and adapts quickly to varying machining needs without interrupting the process.
The advanced control system empowers operators to fine-tune cutting parameters with speed and accuracy, matching the requirements of different materials and workpiece geometries. Instead of relying on complex manual settings, operators can easily access user-friendly controls that streamline setup and adjustment procedures. This intuitive interface reduces learning curves, increases productivity, and ensures that each job meets strict precision standards.
