Description

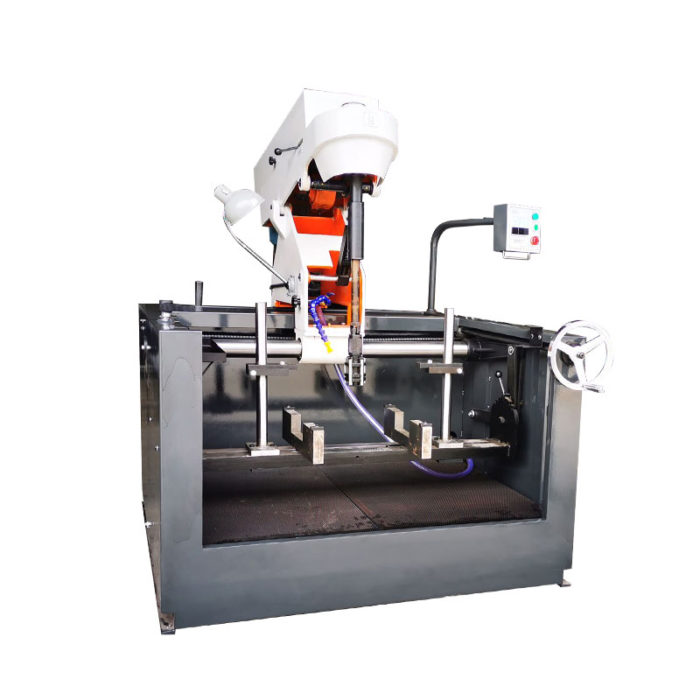

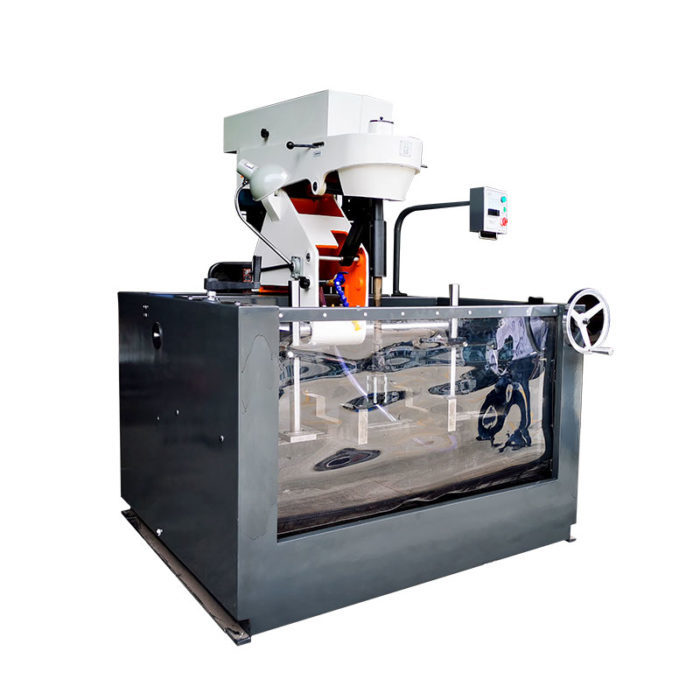

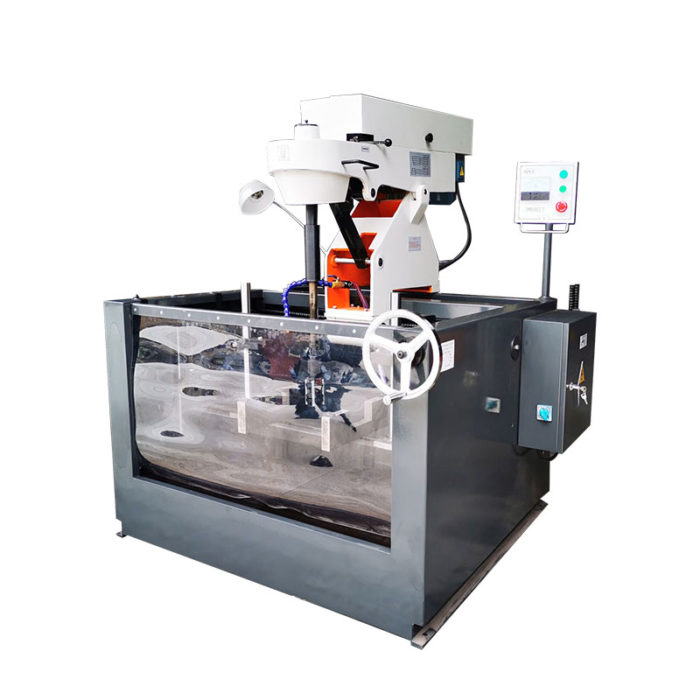

Cylinder Honing Machine 3MB9817 is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles, motorcycles, and tractors and also for other machine element holes.
Specification
| Specification | 3MB9817 |
|---|---|
| Honing hole diameter range | 40-170mm |
| Max.bore honing depth | 320mm |
| Honing spindle speed | 125/250rpm |
| Max.spindle stroke | 340mm |
| Spindle lifting and lowering speed (stepless) | 0-14m/min |
| Total capacity of electric motors | 2.52kw |
| Including: Honing head motor | 0.9kw |
| Oil pump motor | 1.5kw |
| Cooling pump motor | 0.12kw |
| Overall dimensions | 1300x812x2075mm |
| N.W | 650kgs |
Main Features
- The machine table can shift off the fixture change 0°, 30°, 45°.
- The machine table is easily up and down manually 0-180mm.
- Reverse precision 0-0.4mm.
- Select mesh-wire degree 0°-90° or non-mesh wire.
- The reciprocating speed of up and down 0-30m/min.
- The machine is reliable performance widely use honing, easy operation and high productivity.
- Good rigidity, amount of cutting.

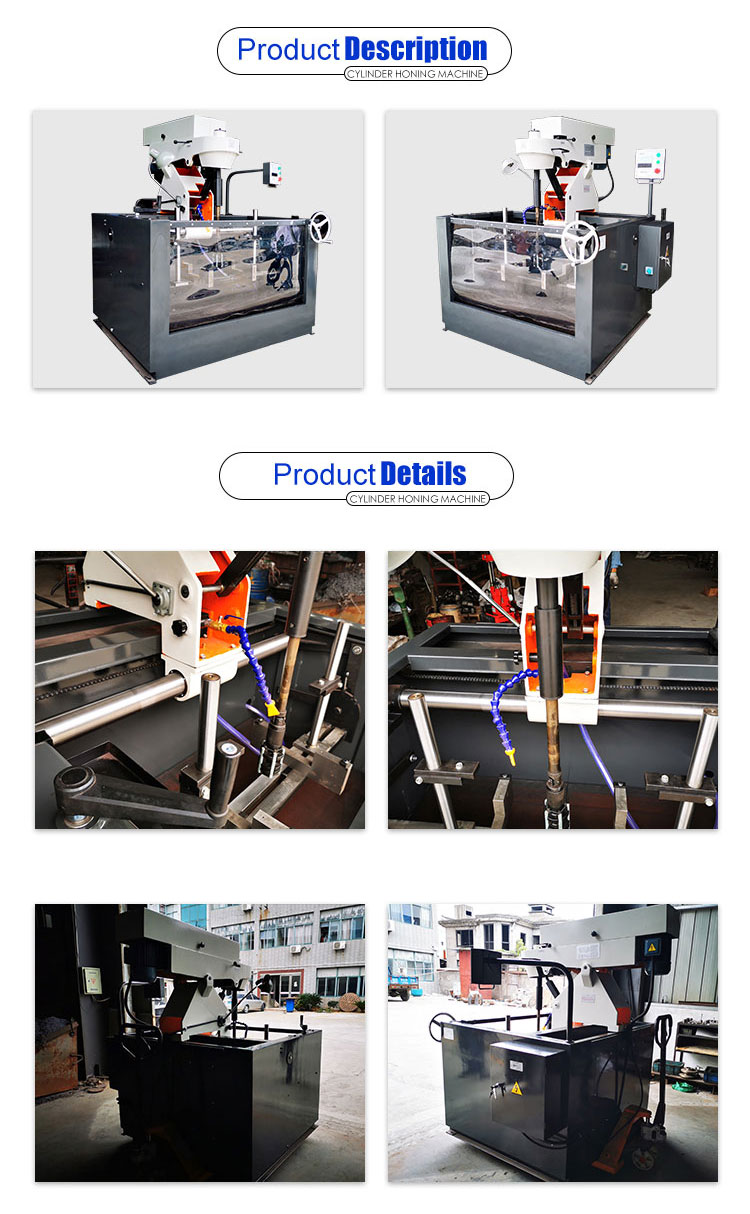

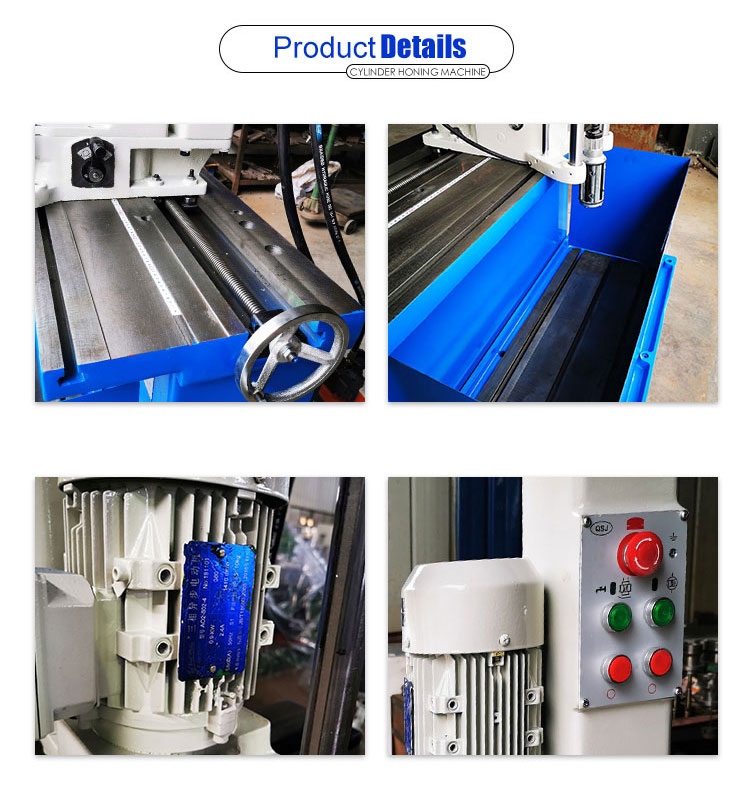

Machine Details
