Description

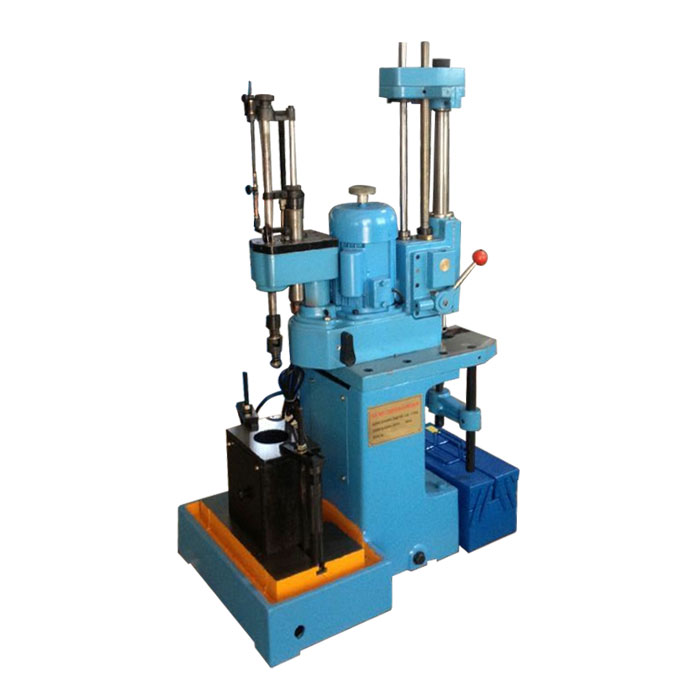

TM807A Cylinder Honing Machine is mainly used for maintaining the cylinder of the motorcycle, etc. Place the cylinder to be bored under the base plate or on the plane of the base of the machine after the center of the cylinder hole is determined, and the cylinder is fixed, maintenance of boring and honing can be carried out.
Specification
| Specification | TM807A |
|---|---|
| Diameter of boring & honing hole | 39-72mm |
| Max. Boring & honing depth | 160mm |
| Rotational speed of boring & spindle | 480r/min |
| Steps of variable speed of boring honing spindle | 1 step |
| Feed of boring spindle | 0.09mm/r |
| Return and rise mode of boring spindle | Hand operated |
| Rotational speed of honing spindle | 300r/min |
| Honing spindle feeding speed | 6.5m/min |
| Electric motor power | 0.75 kw |
| Rotational | 1400r/min |
| Voltage | 220v or 380v |
| Frequency | 50HZ |
| Power of cooling pump | 125w |
| Voltage | 220v or 380v |
| Overall dimensions (L×W×H) | 1640×1670×1920mm |
| Weight of machine proper | 820kgs |
Main Features
- The machine table is easily up and down manually 0-180mm.
- Reverse precision 0-0.4mm.
- Select mesh-wire degree 0°-90° or non-mesh-wire.
- The reciprocating speed of up and down 0-30m/min.
- The machine is reliable performance widely use honing, easy operation and high productivity.
- Good rigidity, amount of cutting.

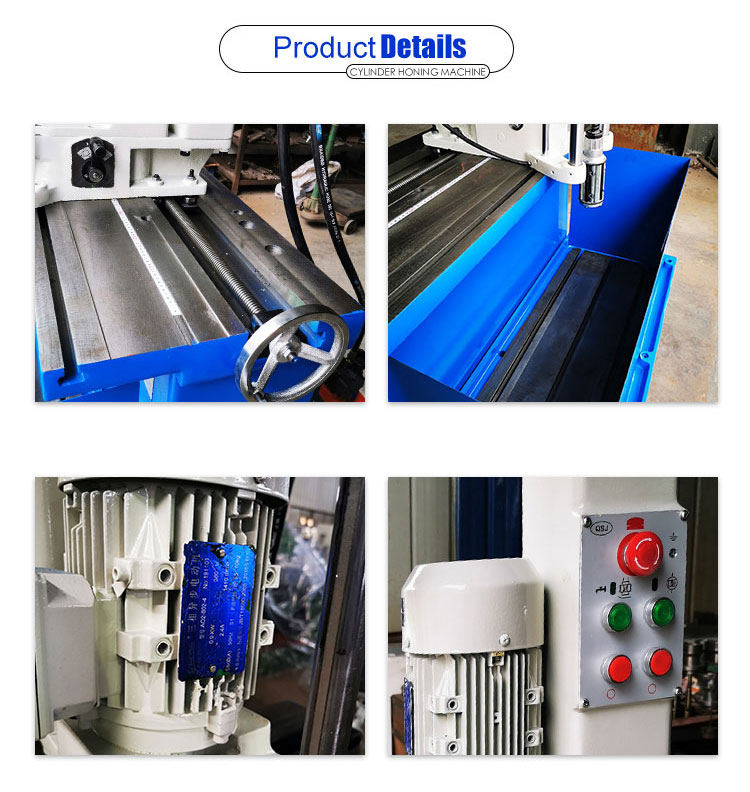

Machine Details
