Description

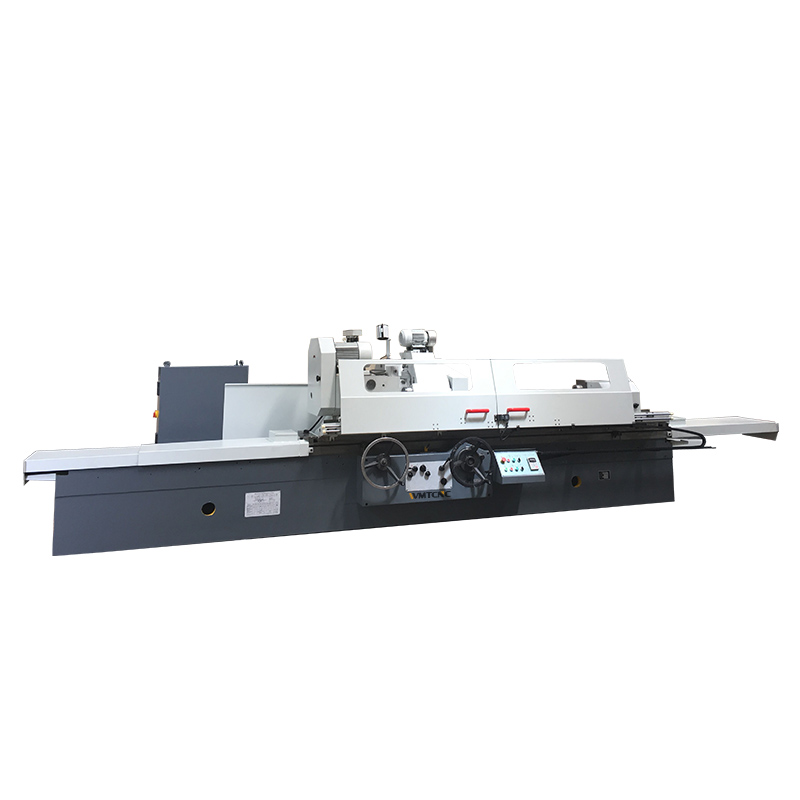

M1450B cylindrical grinder machine is designed for grinding cylindrical or taper surfaces of rotating parts. It is highly adaptable for single and small batch production.
Specification
| Description | M1450B×1500 | M1450B×2000 |
| Grinding length (O.D / I.D) | 1500 / 320 mm | 2000 / 320 mm |
| Grinding diameter (O.D / I.D) | 500 / 200 mm | |
| Center height | 270 mm | 270 mm |
| Max. workpiece weight | 1000 kg | 1000 kg |
| Worktable speed | 0.1–3 m/min | 0.1–3 m/min |
| Max. peripheral speed of grinding wheel | 38 m/s | 38 m/s |
| Max. table travel | 1500 mm | 2000 mm |
| Swivel range of worktable | –3° ~ +6° | –2° ~ +5° |
| External wheel size | Φ500×75×Φ305 mm | Φ500×75×Φ305 mm |
| Spindle speed of headstock | 50Hz: 20–224 r/min | 50Hz: 20–224 r/min |
| Headstock and tailstock center | MT6 | MT6 |
| Wheelhead displacement per division (coarse / fine) | 0.02 / 0.0025 mm | 0.02 / 0.0025 mm |
| Total motor power | 14.08 kW | 14.08 kW |
| Overall dimensions (L × W × H) | 5320×2680×1560 mm | 6090×2680×1560 mm |
| Machine weight | 8600 kg | 9900 kg |
Main Features
- The table longitudinal travel, wheelhead rapid advance/retreat, and periodic cross infeed are hydro-electrically operated with push-button control.
- Manual operation is available for the worktable and wheelhead infeed, with hydraulic tailstock quill retraction via foot pedal.
- Headstock swivels 90° counterclockwise, allowing for grinding of both external and internal tapers by adjusting the headstock, table, or wheelhead.
- Each component — workpiece, internal/external wheels, hydraulic and coolant pumps — is driven by independent motors.
- All power-driven components are interlocked by an electro-hydraulic safety system. Wheels are enclosed in durable protective covers.
