Description

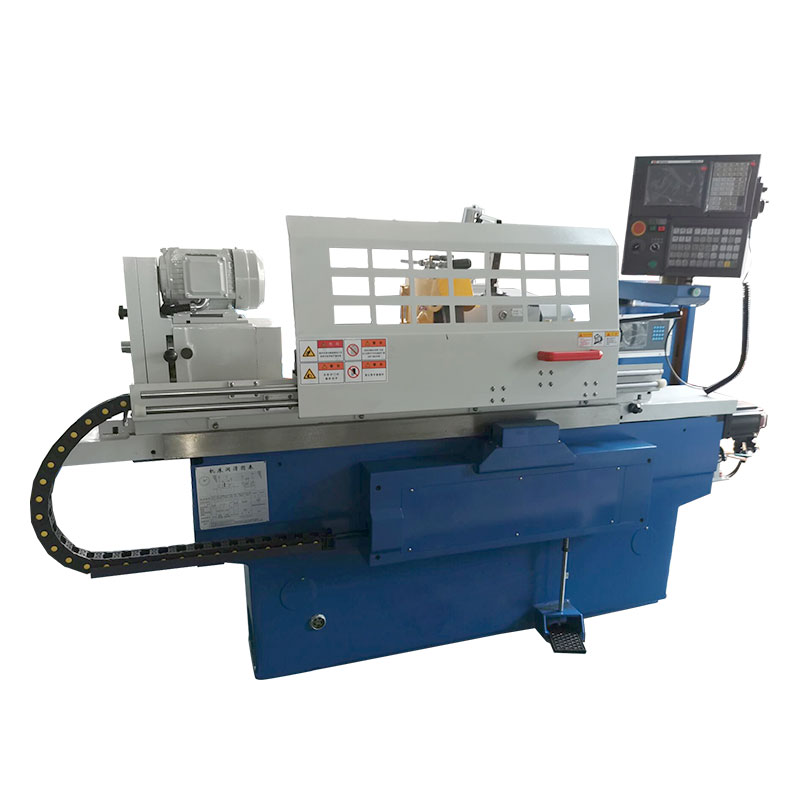

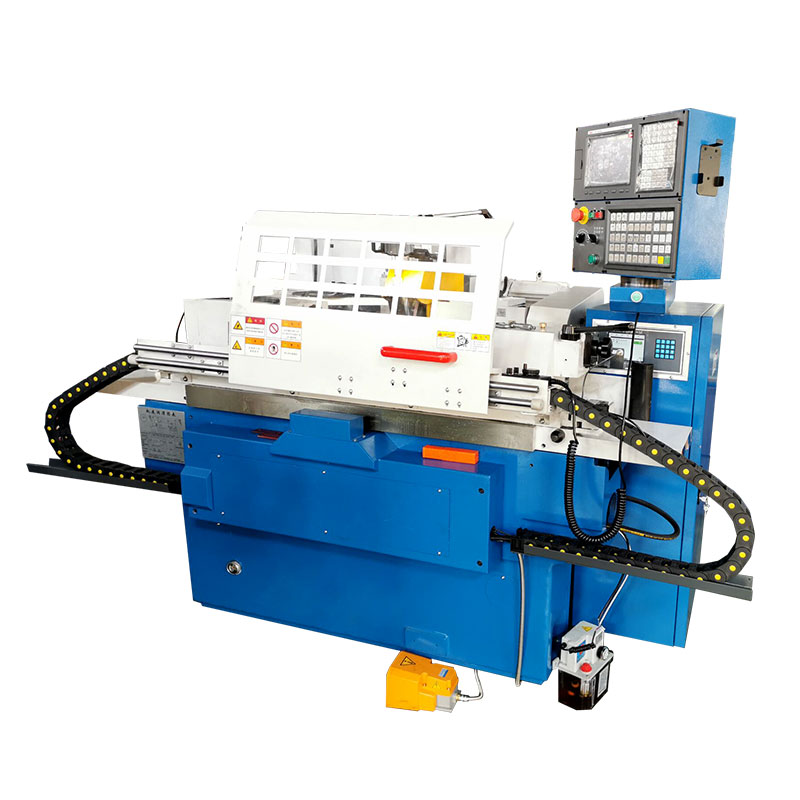

M1320H cylindrical grinder is drawn from Cylindrical Grinding Machine, based on the advantages of major grinder manufacturers. It has been improved to offer higher performance and cost-effectiveness. This machine is ideal for grinding a variety of small cylindrical parts, including internal, external, and end surfaces.
Specification
| Specification | M1320H×500 | M1320H×800 |
|---|---|---|
| Grinding diameters with steady-rest (O.D.) | 8/60 mm | 8/60 mm |
| Grinding diameters without steady-rest (O.D.) | 8/200 mm | 8/200 mm |
| Max. workpiece weight | 50 kg | 50 kg |
| Grinding length (External) | 500 mm | 800 mm |
| Center height | 135 mm | 135 mm |
| Distance between centers | 500 mm | 800 mm |
| External wheel size | Max Φ400×50×Φ203 mm; Min Φ280×50×Φ203 mm | |
| Peripheral speed of grinding wheel | 38 m/s | 38 m/s |
| Wheelhead spindle speed | 1670 r/min | 1670 r/min |
| Wheelhead rapid advance & withdrawal | 25 mm | 25 mm |
| Headstock and tailstock center | MT4 | MT4 |
| Worktable speed | 0.1~4 m/min | 0.1~4 m/min |
| Max. travel of table | 600 mm | 900 mm |
| Swivel range of worktable | -5~+7° | -3~+6° |
| Machine motor power | 5.625 kW | 5.625 kW |
| Machine weight | 2500 kg | 3000 kg |
| Overall dimensions (L×W×H) | 2500×1600×1000 mm | 3000×1600×1000 mm |
Main Features
- High cutting precision, strong rigidity, and high efficiency.
- Independent motor drives for workpiece, grinding wheel, oil pump, and cooling pump.
- Hydraulic and electric integration for safe and reliable operation.
