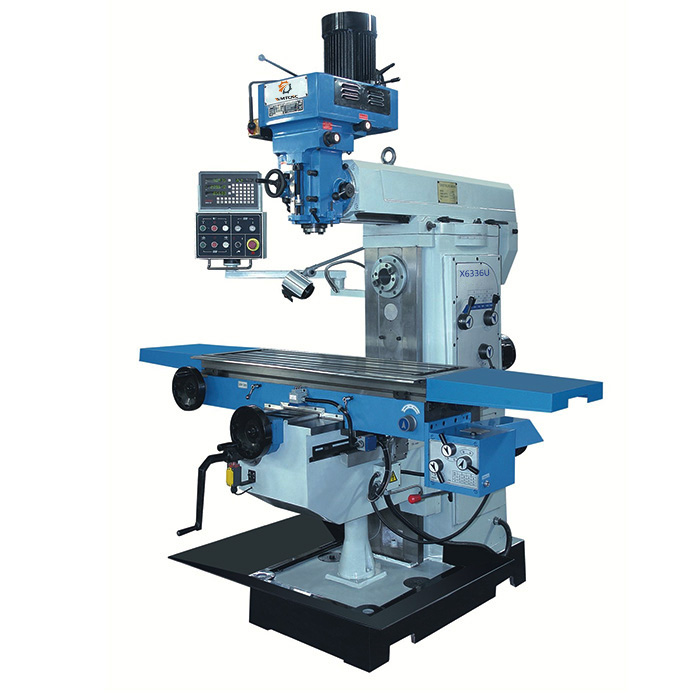

Description
Widely used in mechanical processing, mold, instruments, instruments and other industries. The main components, such as base, fuselage, worktable, middle slide, lift slide and so on, are cast with high strength material, and the stability of machine tool is ensured by artificial aging.
Specification
| Specification | X6330U |
| Table size | 1370×305mm |
| T-slots (No./Width/Pitch) | 3/16/65mm |
| Table travel (X/Y/Z) | 850×380×380mm |
| Spindle taper: vertical/horizontal | R8/NT40(V), NT40(H) |
| Distance between horizontal nose and table surface | 0-380mm |
| Distance between spindle axis and ram surface | 210mm |
| Spindle speed range | 80-4200rpm (variable) |
| 66-4540 (vertical, 16 steps) | |
| 40-1300rpm (horizontal, 12 steps) | |
| Arm travel | 400mm |
| Main motor power | 3KW (vertical) |
| 4KW (horizontal) | |
| Machine overall size (L*W*H) | 1700×1600×2250mm |
| Machine weight | 1450kg |
Main Features
Double 55° swallowtail guide way is adopted on both Y,Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both sides of the column that makes the machine rigidly and beautiful.
Machine details
