Description

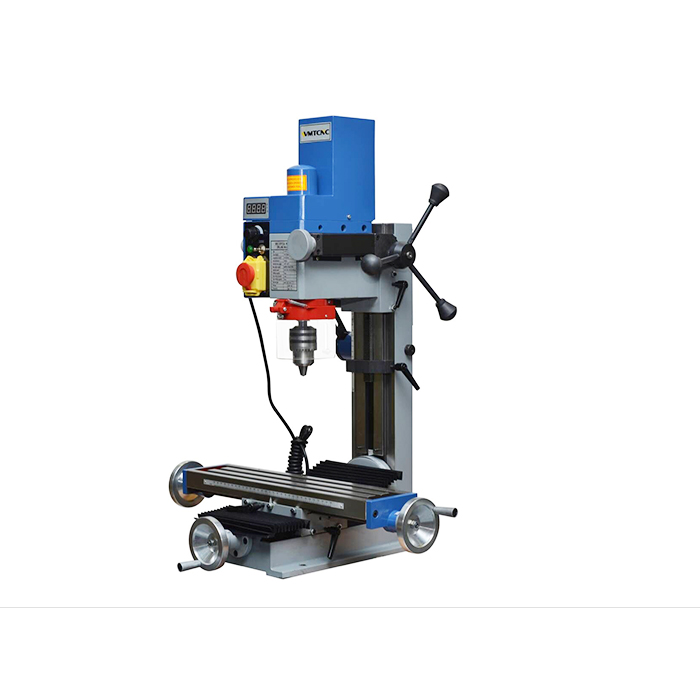

Built with a rock solid dove tail column and a large table, the ZAY7013V is perfect for the beginner or experienced machinist.
Specification
| Specification | ZAY7013V |
| Max. drilling capacity | 13mm |
| Max. face mill capacity | 16mm |
| Max. end mill capacity | 30mm |
| Max. distance spindle to table | 300mm |
| Working table size | 460X110mm |
| Swivel angle of headstock | ±45 ° |
| Spindle taper | MT3/R8 |
| Spindle speed | L: 50-1100rpm H: 120-2500rpm |
| Sleeve stroke | — |
| X-axis travel | 300mm |
| Y-axis travel | 130mm |
| Z-axis travel | 220mm |
| Motor power | 550w/brushless motor |
| N.W/G.W | 70/90kgs |
| Packing size (LxWxH) | 520x450x760mm |
Main Features
- High precision bored and honed milling head.
- Precision ground worktable.
- Tilting and swiveling head.
- With mirco-feed handwheel and lever down feed.
- Adjustable gibs and stops on table.
- Accurate position, strong rigidity, strong cutting power.
- Gear drive, lower noise.
Machine details

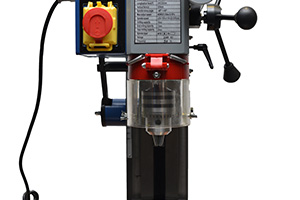

Drilling and milling head

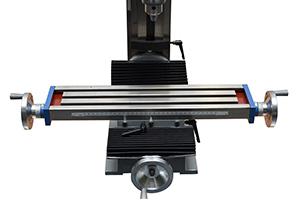

Working table

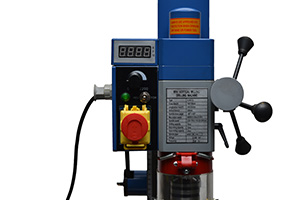

DRO of speed

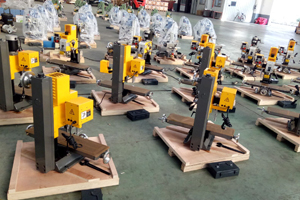

Mass production
