Description

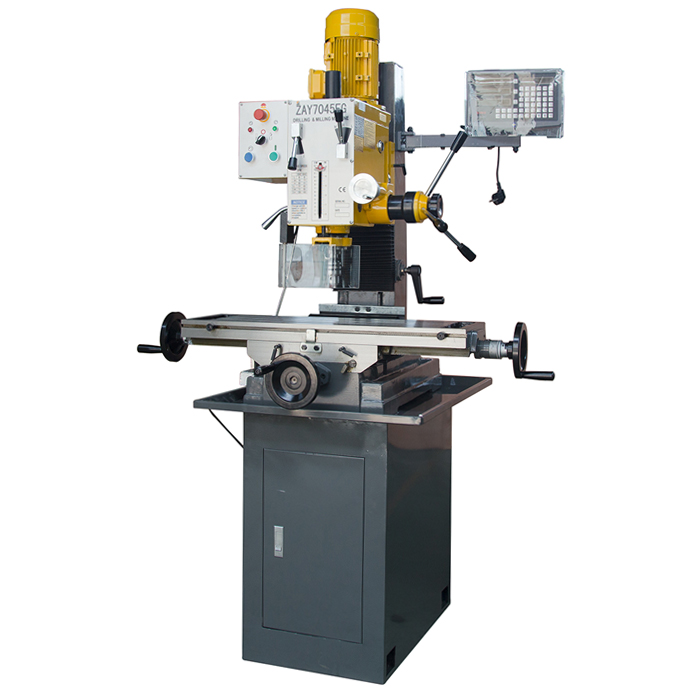

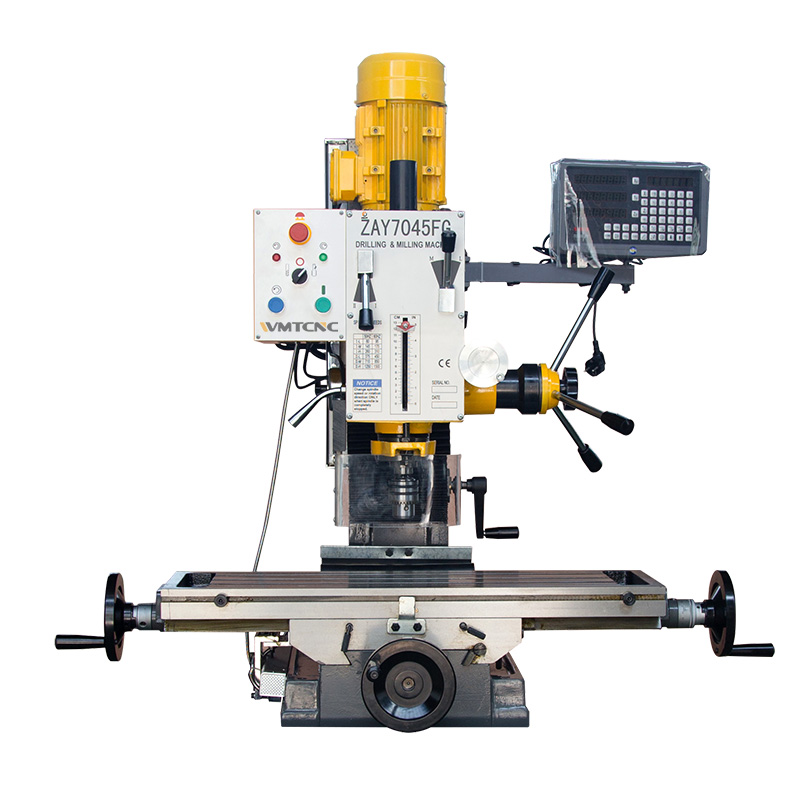

The WMT CNC ZAY7045FG is designed as a drilling and milling machine that combines strength, reliability, and value. Built to handle demanding workshop tasks, it offers a balance of durability and efficiency that makes it ideal for both professional machinists and small-scale production environments.
This model emphasizes consistent performance while keeping affordability in mind, making it a smart choice for those seeking a dependable machine without compromising on capability. With its robust design and user-friendly operation, the ZAY7045FG empowers users to achieve precision results across a wide range of applications. It represents WMTCNC’s commitment to delivering practical solutions that enhance productivity and provide long-term value in modern machining.
Machine Details
 |  |

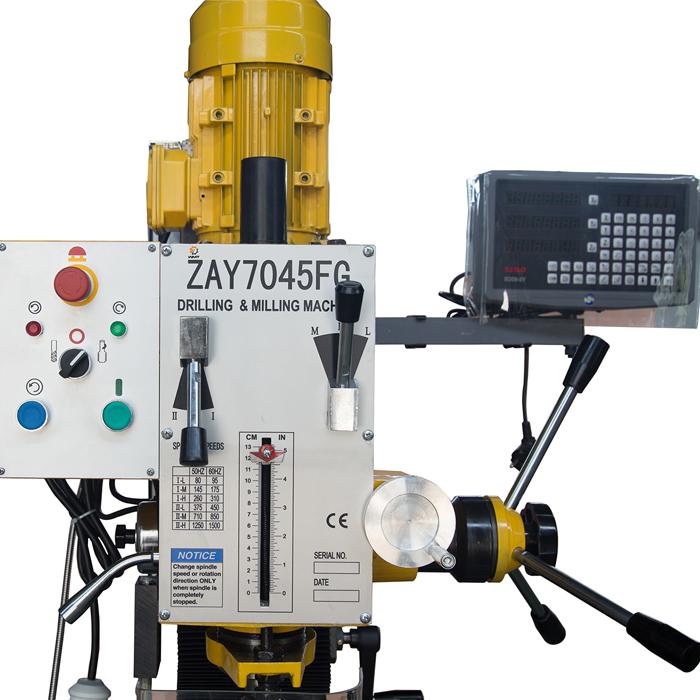

| Spindle | DRO for optional |
 |  |

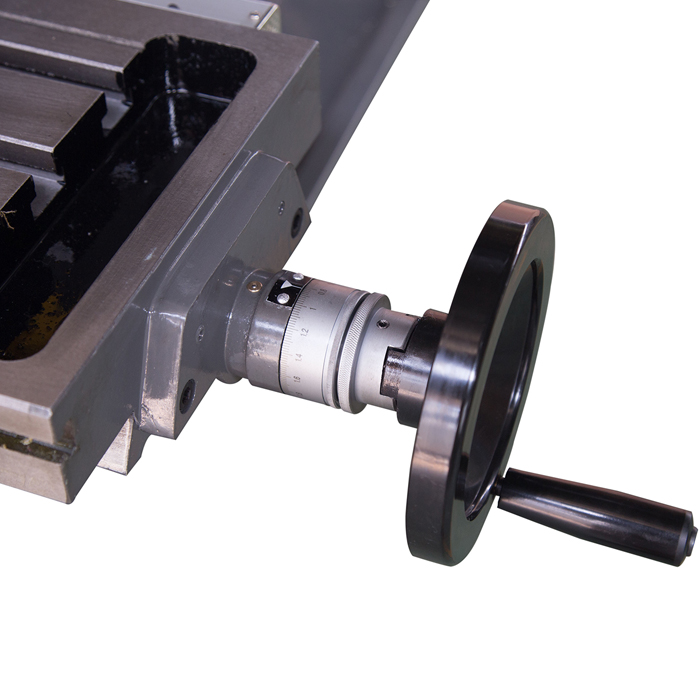

| Working table | Electrical box |
Specification of Drilling and Milling Machine ZAY7045FG
| Specification | ZAY7045FG |
| Max. drilling capacity | 45mm |
| Max. tapping capacity | 20mm |
| Max. face milling capacity | 80mm |
| Max. end milling capacity | 32mm |
| Max. distance from spindle nose to table | 450mm |
| Min. distance from spindle axis to column | 260mm |
| Spindle travel | 130mm |
| Spindle taper | MT3 |
| Step of spindle speed | 6 steps |
| Range of spindle speed 50HZ | 80-1250rpm |
| Range of spindle speed 60HZ | 95-1500rpm |

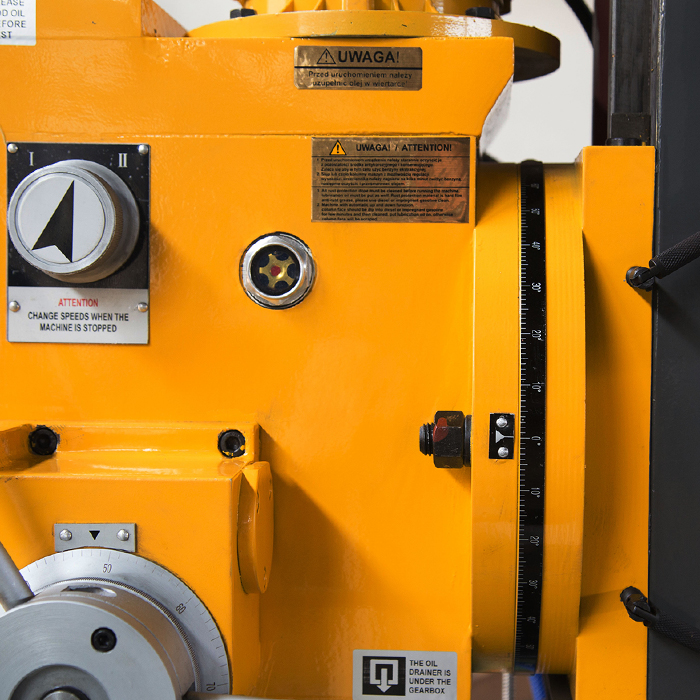

| Swivel angle of headstock (vertical) | ±45° |
| Table size | 800×240mm |
| Forward and backward travel of table | 175mm |
| Left and right travel of table | 500mm |
| Motor power | 1.5kw (2HP) |
| N.w/G.w | 320/370kg |
| Packing size (LxWxH) | 770×880×1160mm |
| Loading amount/20″ container | 36pcs |
Main Features
- Milling,drilling, tapping,boring,reaming
- Head swivels ±45°verticaly

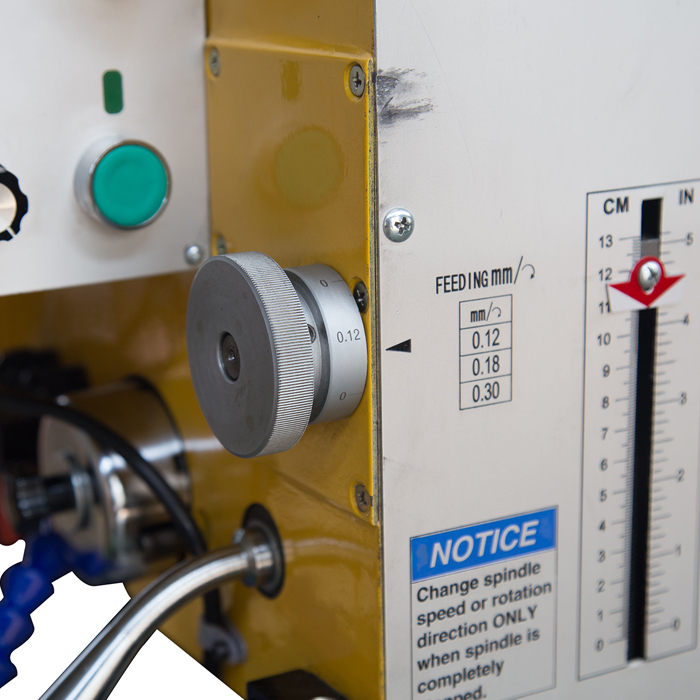

- Spindle micro feed precision

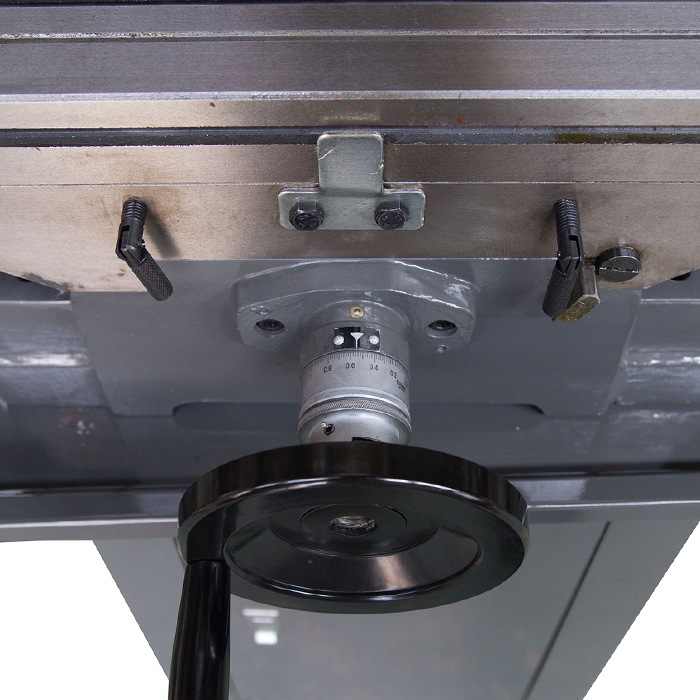

- Adjustable gibs on table precision
- Accurate position ,strong rigidity , powerful cutting
- Gear-driven type and square column.
