Description
The WMT CNC ZAY7032G is a newer gear-driven milling machine model offering great value. Powered for both 110V and 220V, it delivers strong torque and versatility with six spindle speeds to handle a wide range of machining tasks. A key feature is its R8 spindle taper, which provides compatibility with a variety of tooling and ensures precision and stability during operation.
Drilling and Milling Machine ZAY7032G robust design makes it suitable for both hobbyists and professional users seeking reliable performance at an affordable price. Whether you’re working with metals, plastics, or other materials, the ZAY7032G combines power, flexibility, and excellent tooling options in one compact package.
Specification of ZAY7032G
| Specification | ZAY7032G |
| Drilling capacity | Φ32mm |
| Face milling capacity | Φ63mm |
| End milling capacity | Φ20mm |
| Distance from spindle nose to table | 440mm(optional 670mm) |
| Min.distance from spindle axis to column | 272.5mm |
| Spindle travel | 130mm |
| Spindle taper | R8 |
| Step of spindle speed | 6 steps |
| Range of spindle speed 50Hz | 80-1250 r.p.m |
| 60Hz | 95-1500 r.p.m |
| Swivel angle of headstock (horizontal) | 360° |
| (vertical) | ±90° |
| Table size | 800×240mm |
| Forward and backward travel of table | 175mm |
| Left and right travel of table | 500mm |
| Motor Power | 0.75kw |
| N.W/G.W | 315/365kgs |
| Packing size | 770×880×1160mm |
| Loading amount/20″ container | 36pcs |
Machine Features
- Supports milling, drilling, tapping, boring, and reaming operations.
- Head swivels vertically ±90° for versatile machining angles.
- Precise spindle micro-feed control for accurate machining.
- Table equipped with adjustable gibs ensuring high positioning precision.
- Strong rigidity and powerful cutting capability for stable performance.
- Gear-driven mechanism combined with a robust round column design.
Machine Details

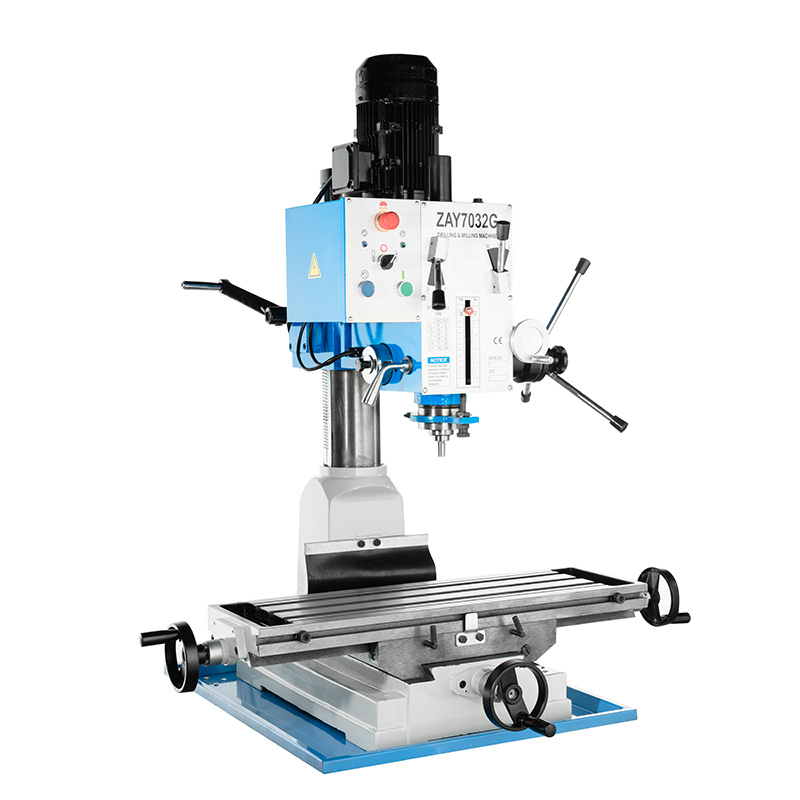

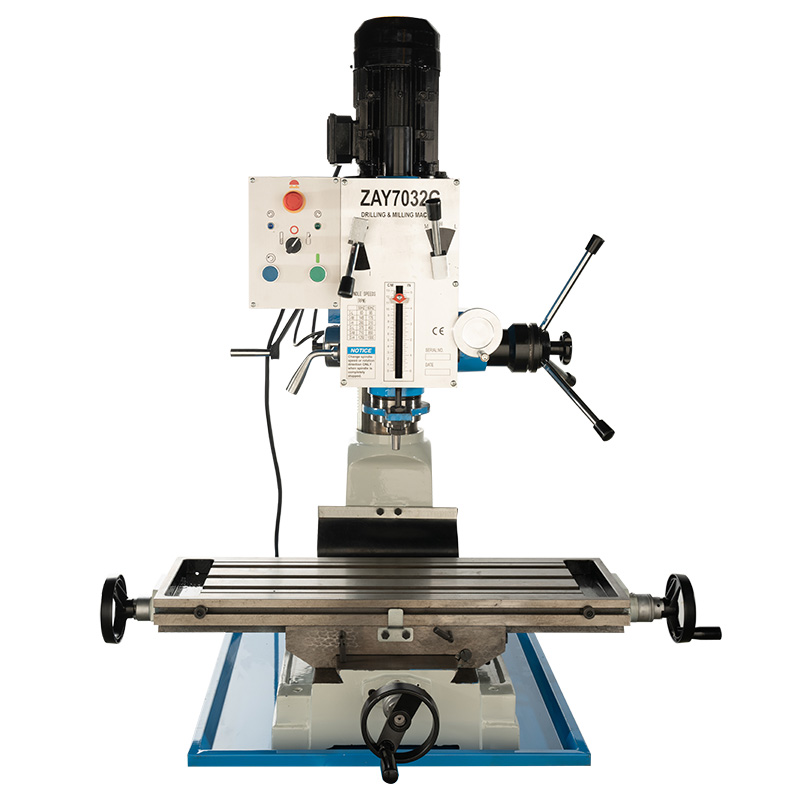

 Front view of ZAY7032G |  Round column |

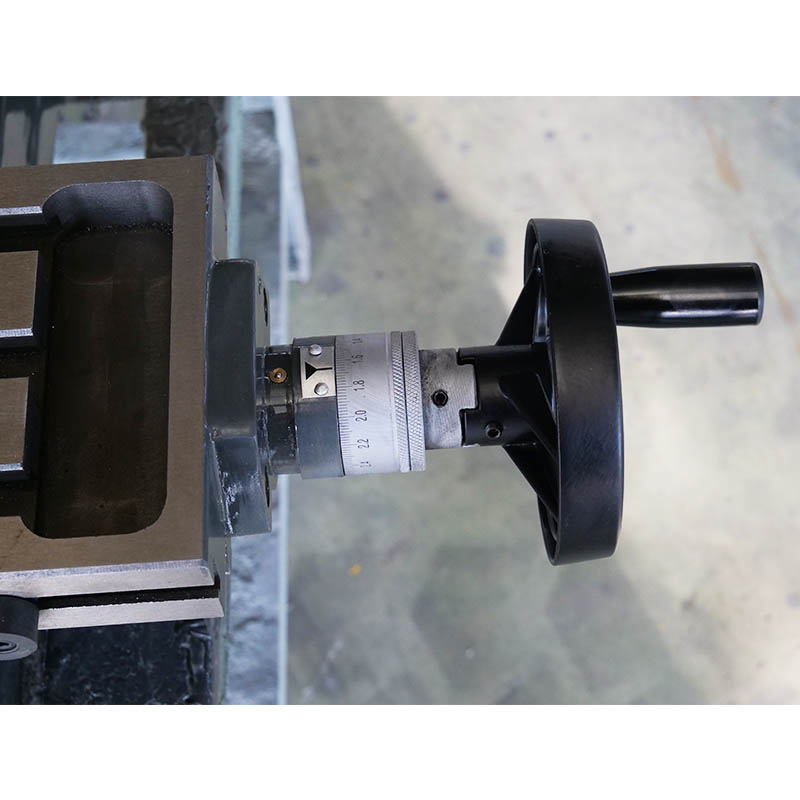

 Spindle motor |  Working table |
