Description

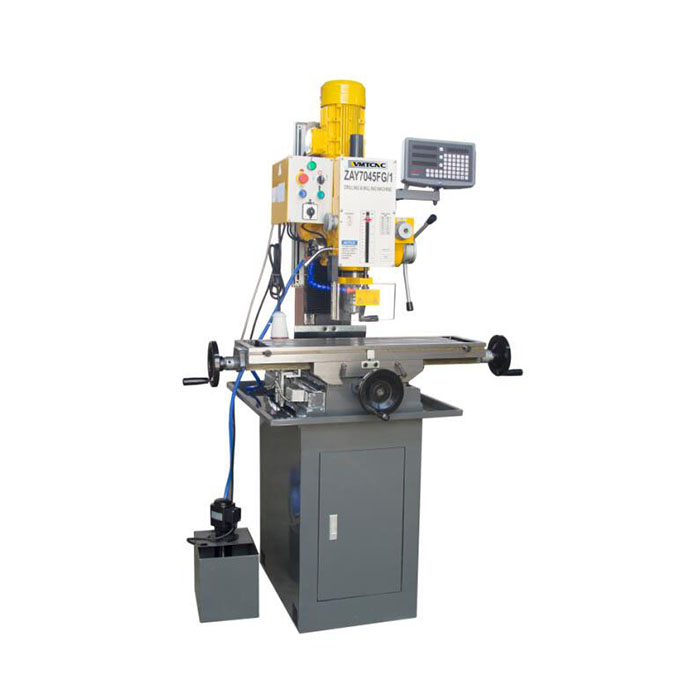

WMT CNC ZAY7045FG/1 is a newer model with 3-shifts auto-feeding spindle. And suitable for drilling, milling, boring and tapping.
Specification
| Specification | ZAY7045FG/1 |
| Max. drilling capacity | Φ45mm |
| Max. tapping capacity | 20mm |
| Max. face milling capacity | Φ80mm |
| Max. end milling capacity | Φ32mm |
| Max. distance from spindle nose to table | 450mm |
| Min. distance from spindle axis to column | 260mm |
| Spindle travel | 130mm |
| Spindle taper | MT3, MT4 or R8 |
| Step of spindle speed | 6 steps |
| Range of spindle speed 50Hz | 80-1250 r.p.m |
| Range of spindle speed 60Hz | 95-1500 r.p.m |
| Auto-feeding step of spindle | 6 steps |
| Auto-feeding amount of spindle | 0.06-0.30mm/r |
| Swivel angle of headstock (vertical) | ±45° |
| Table size | 800×240mm |
| Forward and backward travel of table | 175mm |
| Left and right travel of table | 500mm |
| Motor power | 1.5kw(2HP) |
| N.W/G.W | 320/370kgs |
| Packing size | 770×880×1160mm |
| Loading amount/20″ container | 36pcs |
Main Features
- Milling,drilling, tapping,boring,reaming
- Head swivels ±45°verticaly
- Adjustable gibs on table precision
- Accurate position ,strong rigidity , powerful cutting
- Gear-driven type and square column.
Machine details

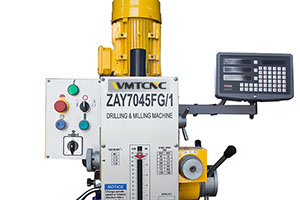

Spindle

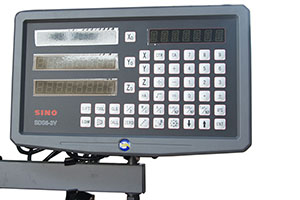

DRO for optional

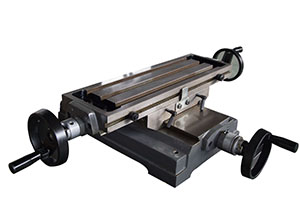

Working table

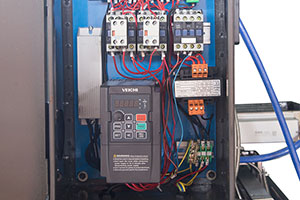

Electrical box
