Description

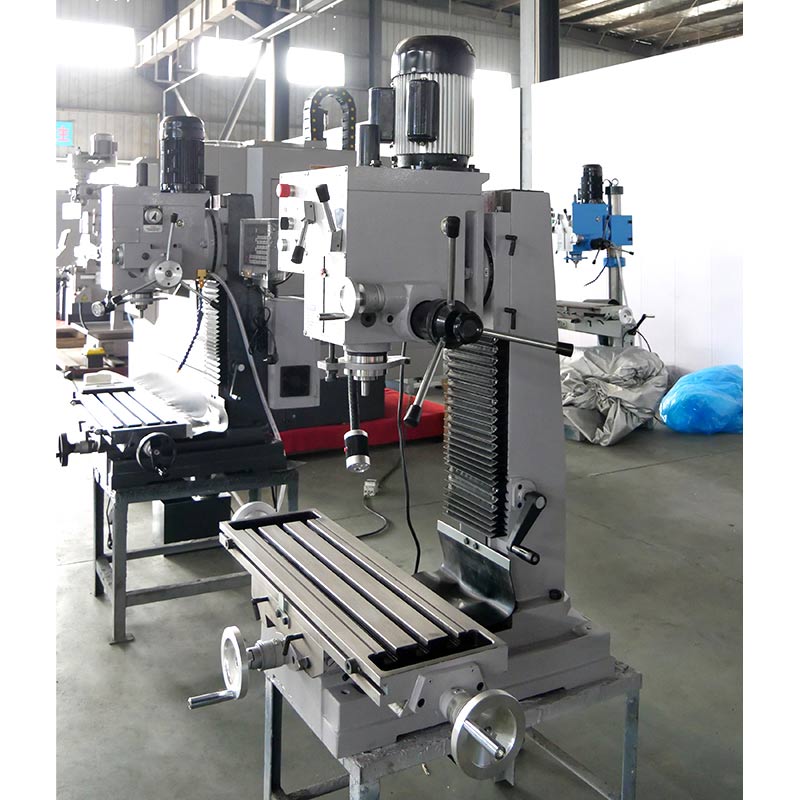

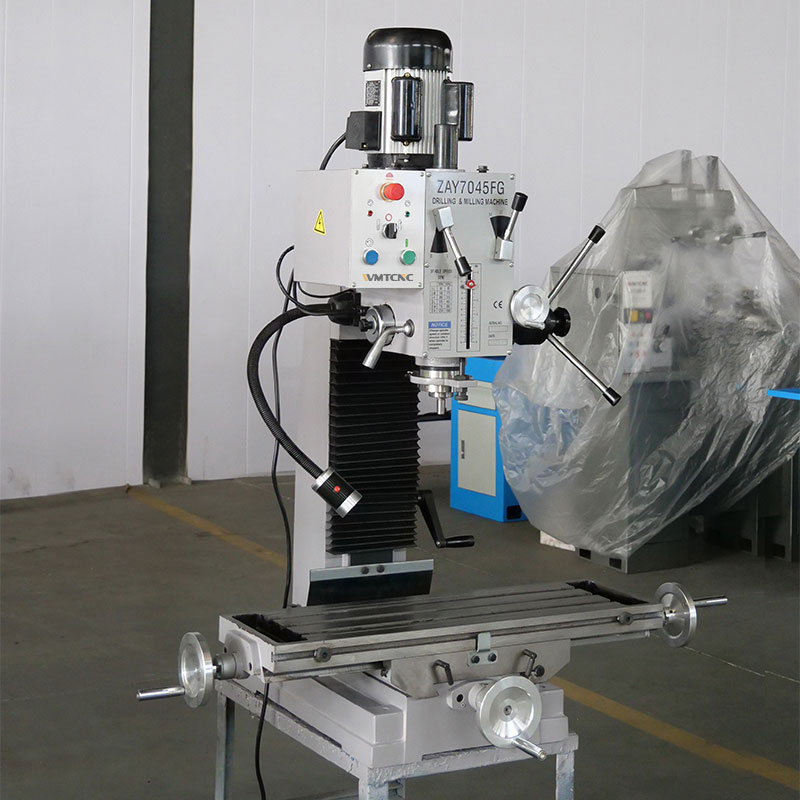

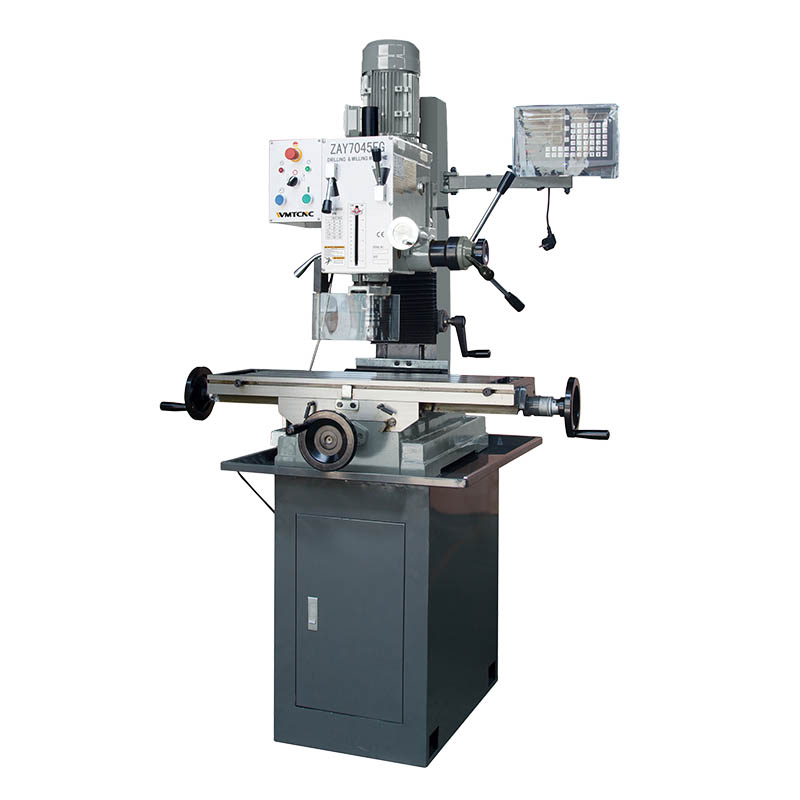

WMT CNC ZAY7045FG is a newer model, but it sure is a great price for a gear driven metal milling machine. Loaded with power for a 110V/220V manual milling machine.
Specification
| Specification | ZAY7045FG |
| Max. drilling capacity | Φ45mm |
| Max. tapping capacity | 20mm |
| Max. face milling capacity | Φ80mm |
| Max. end milling capacity | Φ32mm |
| Max. distance from spindle nose to table | 450mm |
| Min. distance from spindle axis to column | 260mm |
| Spindle travel | 130mm |
| Spindle taper | MT3, MT4 or R8 |
| Step of spindle speed | 6 steps |
| Range of spindle speed 50Hz | 80-1250 r.p.m |
| Range of spindle speed 60Hz | 95-1500 r.p.m |
| Auto-feeding step of spindle | 6 steps |
| Auto-feeding amount of spindle | 0.06-0.30mm/r |
| Swivel angle of headstock (vertical) | ±45° |
| Table size | 800×240mm |
| Forward and backward travel of table | 175mm |
| Left and right travel of table | 500mm |
| Motor power | 1.5kw(2HP) |
| N.W/G.W | 320/370kgs |
| Packing size | 770×880×1160mm |
| Loading amount/20″ container | 36pcs |
Main Features

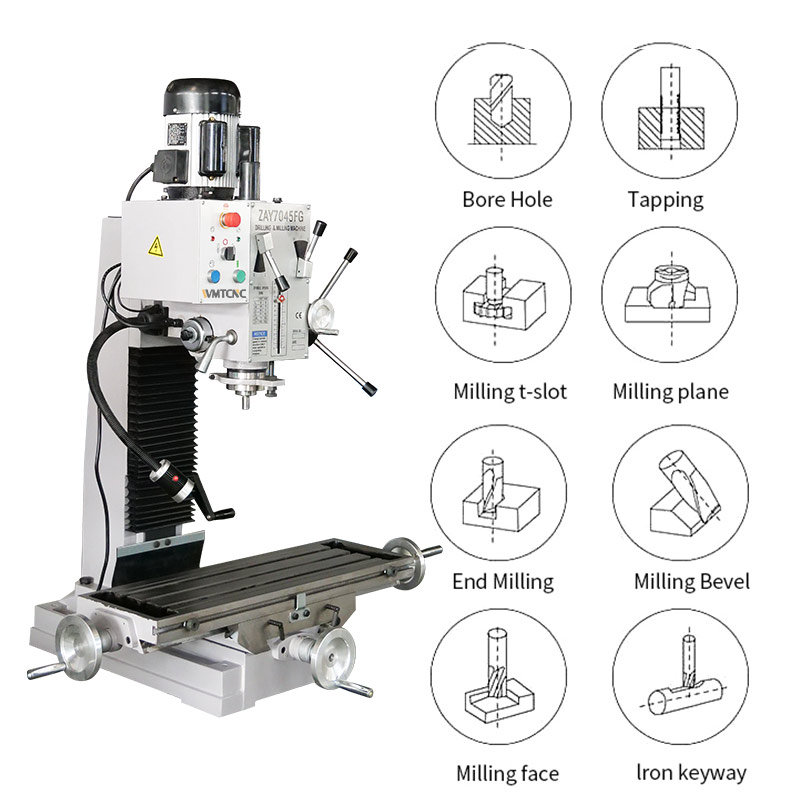

- Milling,drilling, tapping,boring,reaming
- Head swivels ±45°verticaly

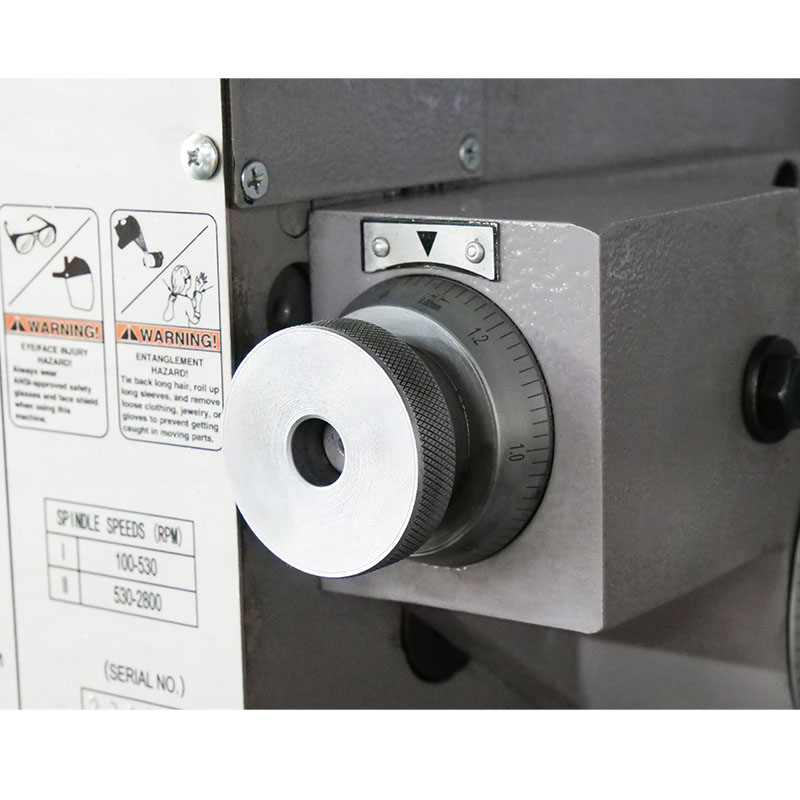

- Spindle micro feed precision
- Adjustable gibs on table precision
- Accurate position ,strong rigidity , powerful cutting
- Gear-driven type and square column.

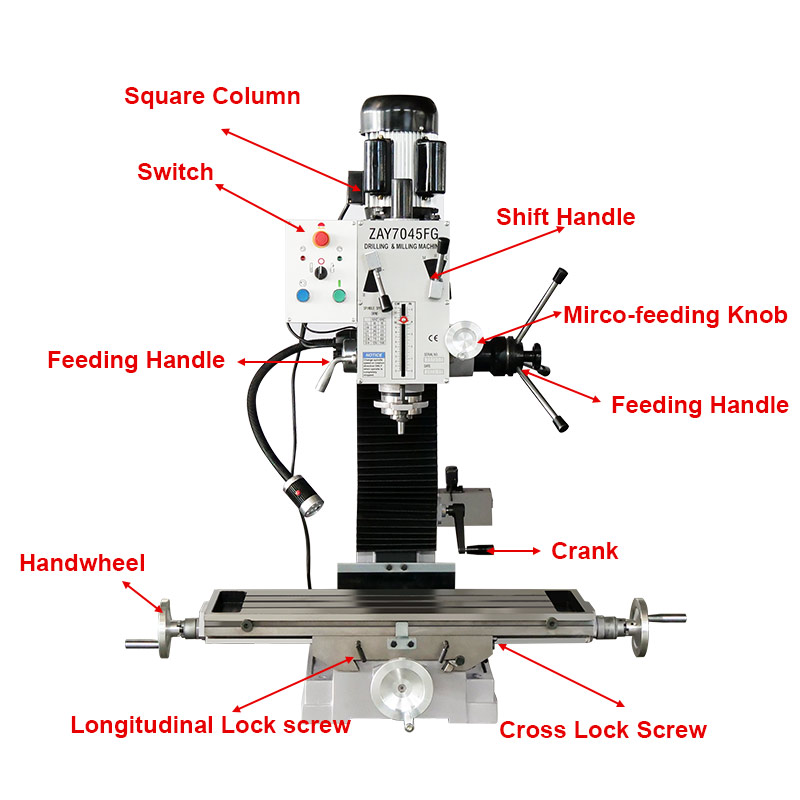

Machine details

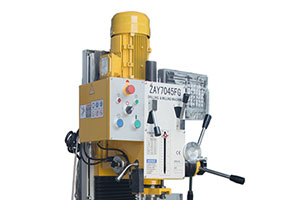

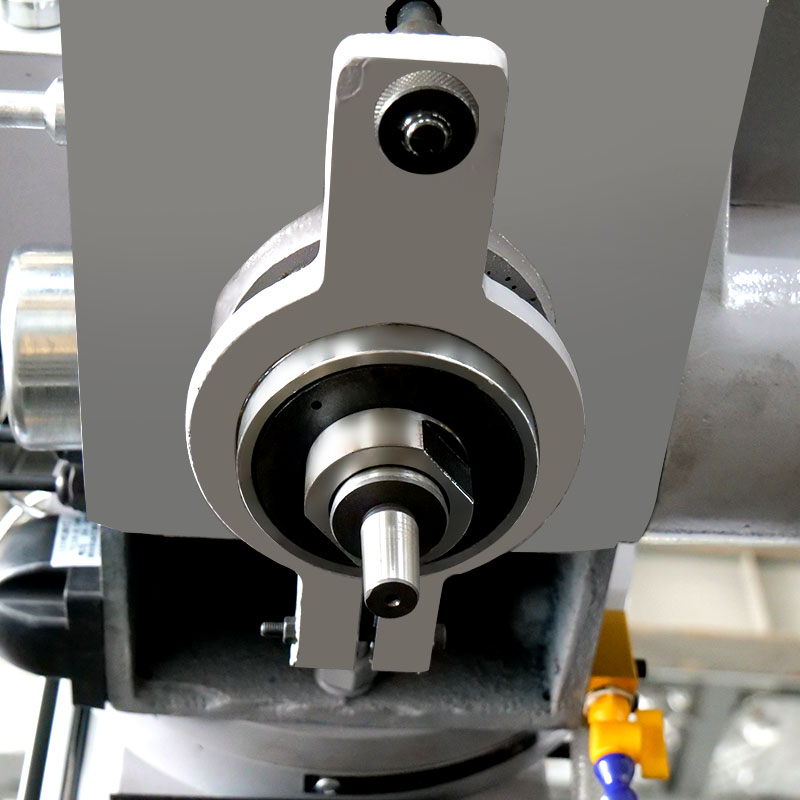

Spindle
DRO for optional

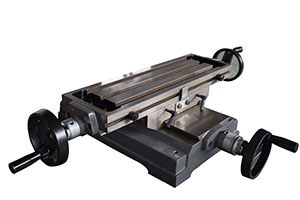

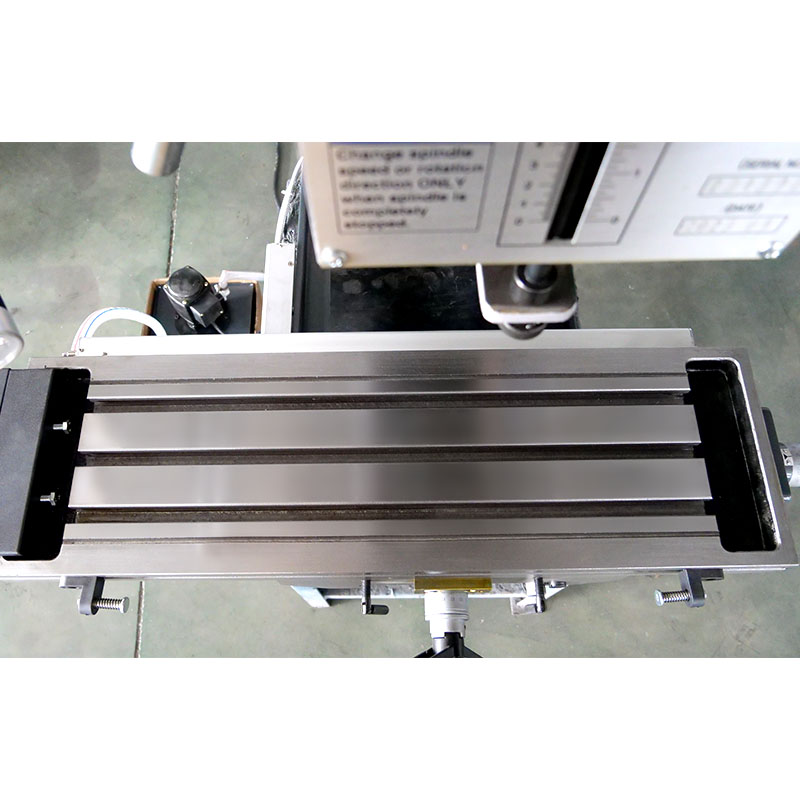

Working table

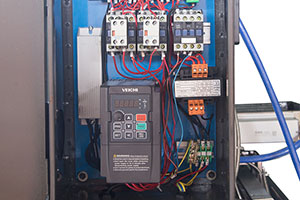

Electrical box
FAQ
Q1: What machining tasks is the ZAY7045FG mill machinesuitable for?
A1: The ZAY7045FG is perfect for metalworking tasks, including drilling, milling, and tapping, especially for precise processing of materials like aluminum alloy and steel.
Q2: What are the maintenance requirements for a drilling and milling machine?
A2: Drilling and milling machines require regular checks on spindle lubrication, cooling systems, and tool wear, ensuring stable operation and precision.
Q3: How is the positioning accuracy of a metal drill/mill machine ensured?
A3: Drilling and milling machines are usually equipped with high-precision sensors and CNC systems to ensure accurate positioning of the axes, reducing machining errors.
Q4: What automation features are available on drilling and milling machines?
A4: Modern drilling and milling machines often come with features like automatic tool changers, automatic lubrication systems, and automatic loading/unloading, which improve production efficiency and reduce manual intervention.
