Description

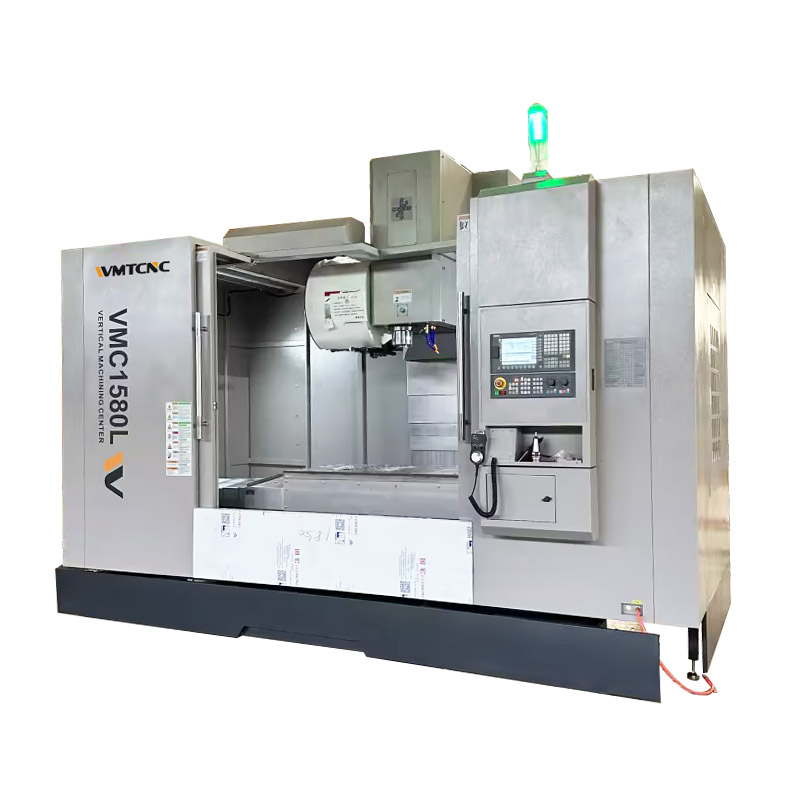

The 4-axis CNC machining center VMC1580L adopts an advanced international design standard.
Moreover, it features a modern structure with high-quality components and spare parts.
Therefore, it performs well in both precision part machining and mold processing.
As a result, WMTCNC’s VMC1580L provides excellent performance and reliable long-term stability.
Furthermore, it ensures strong rigidity and higher accuracy for demanding applications.
Specification
| Specification | VMC1580L |
| Worktable | |
| Worktable size (L×W) | 1600×800mm |
| T-slots size (N×W×D) | 7x22x110mm |
| Travel | |
| X/Y/Z axis travel | 1500/800/700mm |
| Machining Range | |
| Distance from spindle center to column | 855mm |
| Distance from spindle nose to worktable surface | 190-890mm |
| Spindle | |
| Spindle taper | BT40/BT50 |
| Spindle power | 11/15kw;15/18.5kw(optional) |
| Max. spindle speed | 8000/6000rpm |
| Feed | |
| Max. feed speed | 10m/min |
| Rapid feed speed (X/Y/Z) | 24/24/20m/min |
| Ball Screw | |
| X/Y/Z axis ball screw | 5012 |
| Tool Magazine | |
| Tool magazine capacity | 24T |
| Max. length of tool | 300mm |
| Tool change time | 1.5s |
| Accuracy | |
| Positioning accuracy (X/Y/Z) | 0.01mm |
| Re-positioning accuracy (X/Y/Z) | ±0.008mm |
| Machine Dimension & Weight | |
| L×W×H | 3800×2720×3610mm |
| Max. loading of worktable | 1500kg |
| Machine weight | 13000kg |
Main Features
- Spindle Unit of 4 axis cnc machining center: The spindle has a speed of 8000rpm, driven by a servo motor, and provides a power of 11Kw.
- Taiwan 24-Tool Automatic Tool Changer (ATC): Equipped with a 24-tool automatic tool changer system manufactured in Taiwan. It enables fast and accurate tool changes.
- Taiwan HIWIN Ball Screws: Utilizing HIWIN brand ball screws from Taiwan, it ensures high precision, low friction, and long lifespan, guaranteeing the motion accuracy and stability of the machine.
- Taiwan HIWIN Linear Guides: Employing Taiwan HIWIN linear guides, it features high rigidity, high precision, and low friction, providing smooth and precise movement of the worktable.
- Manual Handwheel: Equipped with a manual handwheel, it facilitates manual operations and positioning by the operator.
Machine Details
GSK, Fanuc, Siemens controller as optional selection
Disc Type ATC
Spindle unit BT40 of VMC
Electrical Cabinet
